Soil ph measuring device

Product name: Soil pH Measuring Device

Soil pH Measuring Device Product Overview

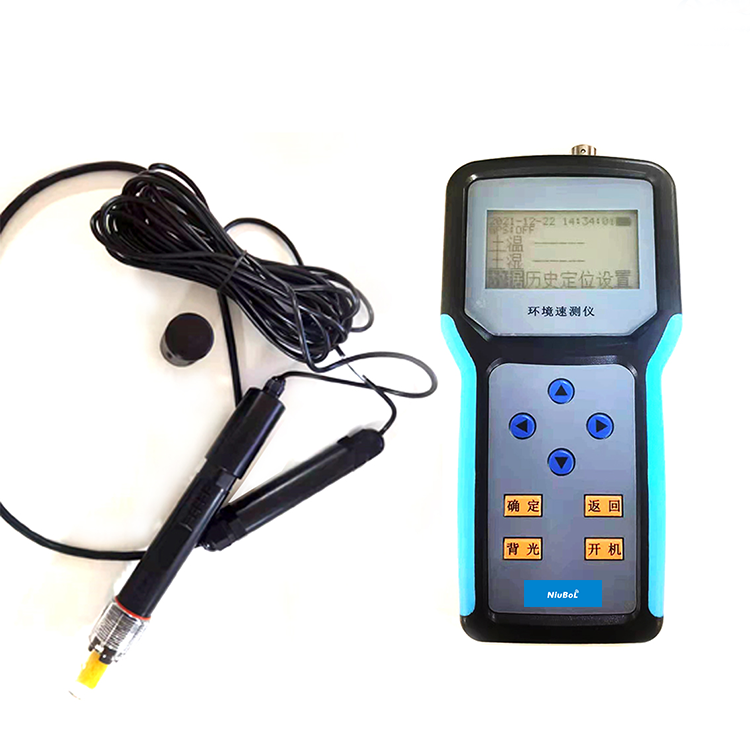

The Soil pH Measuring Device is a portable device designed for fast and accurate measurement of soil pH. The device not only displays the measurement results in real time, but also has a data storage function that allows the user to download the recorded data to a computer through the accompanying software, which is convenient for subsequent research and preservation. The instrument adopts a variety of professionally developed agricultural environmental sensors, supporting one machine for multiple uses, and is widely used in agriculture, forestry, geological exploration, plant cultivation and other fields. In addition, users can also add other types of sensors (such as temperature and humidity sensors, salinity sensors, conductivity sensors, NPK sensors, etc.) to meet different measurement needs.

Soil pH Measuring Device Technical Parameters:

Soil pH Measuring Device Features

1. Compact and portable, easy to operate

   - Compact design: light touch buttons, large dot-matrix LCD display, English menu operation, convenient for users to measure anytime, anywhere.

   - Easy to carry: the weight of the whole machine is about 0.5Kg, the size is 405×100×100 mm (including packaging), and the size of the main unit is 100×200×28 mm, which is easy to carry and use in the field.

2. High-precision sensors

   - Consistency and interchangeability: the sensor probe has consistency, and the sensor interfaces of different parameters can be interchanged without affecting the measurement accuracy. The instrument can automatically recognize the sensor type, no need to manually set up the measurement elements, to ensure simple operation and accurate results.

   - Measurement accuracy: ±0.02pH, resolution 0.01pH, ensuring high precision and reliability of data.

3. Powerful data storage function

   - Built-in high-capacity memory chip: up to 20,000 pieces of data can be stored. Users can either view the historical data directly on the host computer or import the data into the computer via USB interface, which is convenient for subsequent analysis and archiving.

   - Power failure protection: even in the event of a power failure, the data saved in the host computer will not be lost, ensuring data integrity.

4. Flexible data acquisition mode

   - Manual Recording and Automatic Recording: Supports two modes of manual recording and automatic recording. Users can set the sampling interval according to the actual needs, automatically record and store data to adapt to different application scenarios.

   - GPS Positioning: Built-in GPS module with latitude and longitude positioning function can accurately locate the information of measurement points (longitude and latitude), and the positioning accuracy can be up to four decimal places with an error of less than 5 meters. This allows users to accurately record the specific location of each measurement point for follow-up tracking and management.

5. Strong compatibility and good expandability

   - Multi-parameter simultaneous measurement: In addition to measuring soil pH, users can also add other types of sensors, such as temperature and humidity sensors, salt sensors, conductivity sensors, NPK sensors, etc., to achieve multi-parameter simultaneous measurement to meet the needs of different application scenarios.

   - USB data export: Support USB data export, compatible with Windows 2000 and above operating system, convenient for users to save the data in Excel format backup, which is convenient for long-term preservation and analysis.

6. Durable and adaptable

   - Working environment: Suitable for extreme working environments from -20℃ to 80℃, with a humidity range of 5%RH to 95%RH, adapting to various climatic conditions.

   - High-efficiency lithium-ion battery: supports long-time field operation and ensures that it can work normally even in a no-power environment.

7. Data backup and recall

   - Flash storage: Data is stored in Flash, which can be called by other software to ensure the safety and flexibility of data.

   - Historical Data Analysis: With the included dedicated software, users can download and display the historical data recorded by the instrument for further data analysis and processing.

Soil pH Measuring Device Software Features

- Compatibility: Suitable for Windows 2000 and above operating systems, providing historical data download and analysis.

- Data Backup: Easy backup in Excel format for long-term storage and analysis.

- Powerful Data Processing: Supports data export and easy integration with other software to enhance research and management efficiency.

- User-friendly interface: Easy to operate, convenient for data analysis and management.

Instructions for Soil pH Measuring Device

1. Preparation

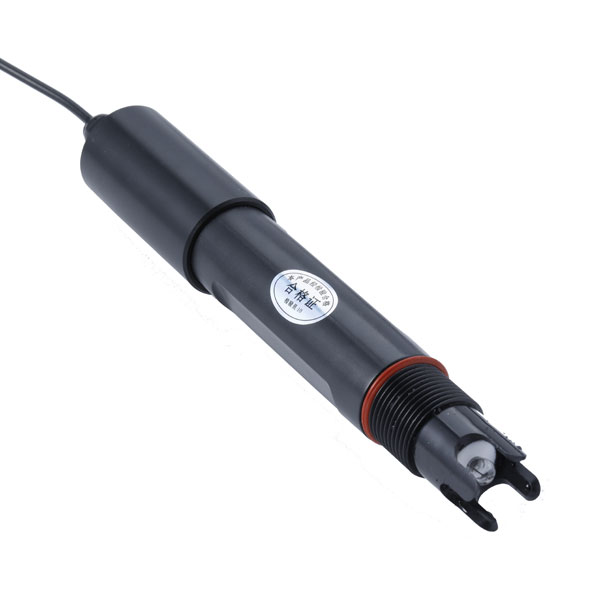

   - Installation of the sensor: When the sensor is shipped from the factory, the probe is equipped with a transparent protective cover and built-in protective liquid to protect the probe. Before use, please remove the protective cover, fix the filter tank to the sensor, and wrap the filter mesh on the filter tank with the attached tie to prevent direct contact between the soil and the probe to avoid damage to the probe. Please make sure the filter tank and filter mesh are firmly connected, and do not insert the probe directly into the soil.

2. Insertion into soil

   - Vertical insertion: Insert the probe partially vertically into the soil to a depth at least covering the filter. Under normal circumstances, the pH value in the air is between 6.2 and 7.8, but the pH value of the soil may vary in different areas, so you need to judge according to the actual situation.

3. Moistening with water

   - Pour in the right amount of water: After burying the sensor, pour in a certain amount of water around the soil to be measured, wait for a few minutes until the water is fully immersed in the probe, you can read the data on the instrument. Under normal circumstances, the soil is neutral, the pH value is about 7, but the pH value of the soil in different areas will be different, you need to judge according to the actual situation.

   4. Performance check

   - Using pH reagents: Users can use the three included pH reagents and configure them according to the configuration method in the manual to check if the product is performing properly. This helps to ensure the accuracy of the measurement results.

Soil pH Measuring Device Application Scenarios

- Agriculture and horticulture: monitoring soil pH to optimize fertilization programs and improve crop yield and quality.

- Forestry and Vegetation Conservation: Evaluating soil conditions to guide reforestation and revegetation projects.

- Geological exploration: study soil chemical properties to assist in mineral resource exploration and environmental protection.

- Scientific research: Provide accurate soil pH data for research in ecology, environmental science and other fields.

- Environmental protection monitoring: monitoring soil pollution, evaluating the effectiveness of treatment, and safeguarding the health of the ecological environment.

- Teaching and research: Provide accurate data support to promote academic research and educational practice.

- Horticulture and Landscape Design: Ensure the best environmental conditions for plant growth and optimize landscape design.

Advantages of Soil pH Measuring Device

1. High-precision Measurement: Adopting advanced sensor technology to ensure the accuracy and reliability of the measurement results.

2. Multi-functional integration: support multiple sensor expansion to meet the needs of different application scenarios.

3. Portable and easy to use: compact design, simple operation, suitable for rapid on-site measurement.

4. Convenient data management: built-in high-capacity storage, support for data export and backup, convenient for subsequent analysis.

5. Accurate positioning: Built-in GPS module ensures that the location information of each measurement point is accurate.

6. Strong durability: suitable for a variety of harsh environments, strong adaptability, to ensure long-term stable operation.

Summary

Soil pH Measuring Device is a portable measuring tool with integrated high-precision sensors, powerful data storage and flexible expansion functions. It can not only measure soil pH quickly and accurately, but also realize multi-parameter simultaneous measurement through additional sensors, which is widely used in agriculture, forestry, geological exploration, scientific research and other fields. With its portability, high accuracy and powerful data management functions, this soil pH meter becomes an ideal choice for professionals to help users better understand and manage the soil environment.
