Instrument for measuring soil ph

Product Name:Instrument for measuring soil ph - Soil pH Measurement Instrument

 Instrument for measuring soil ph Product Overview

Soil pH Measurement Instrument is an intelligent measuring device designed for agriculture, forestry, geological exploration and plant breeding. It can quickly and accurately measure the pH value of soil and display the results in real time on a large dot-matrix LCD screen. At the same time, the instrument is also equipped with data storage function, which can save the measurement data into the internal chip, convenient for subsequent research or preservation. In addition, through the use of our company specializing in the development of a variety of agro-environmental sensors and transmitters, the instrument can also be used for multi-purpose, easy to cope with different measurement needs.

Instrument for measuring soil ph Technical Parameters

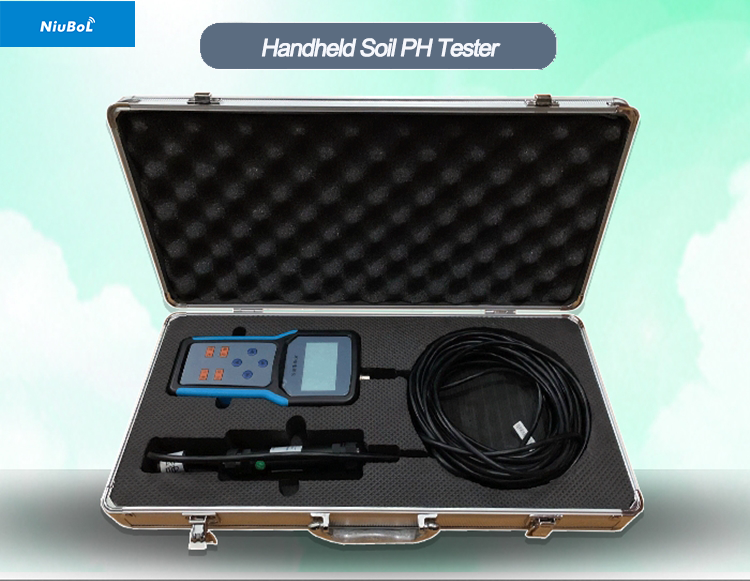

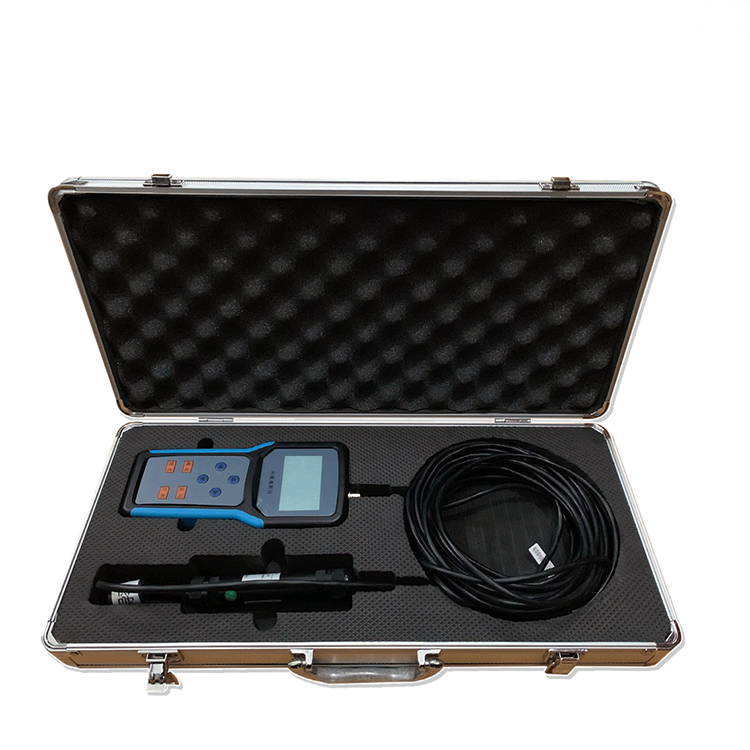

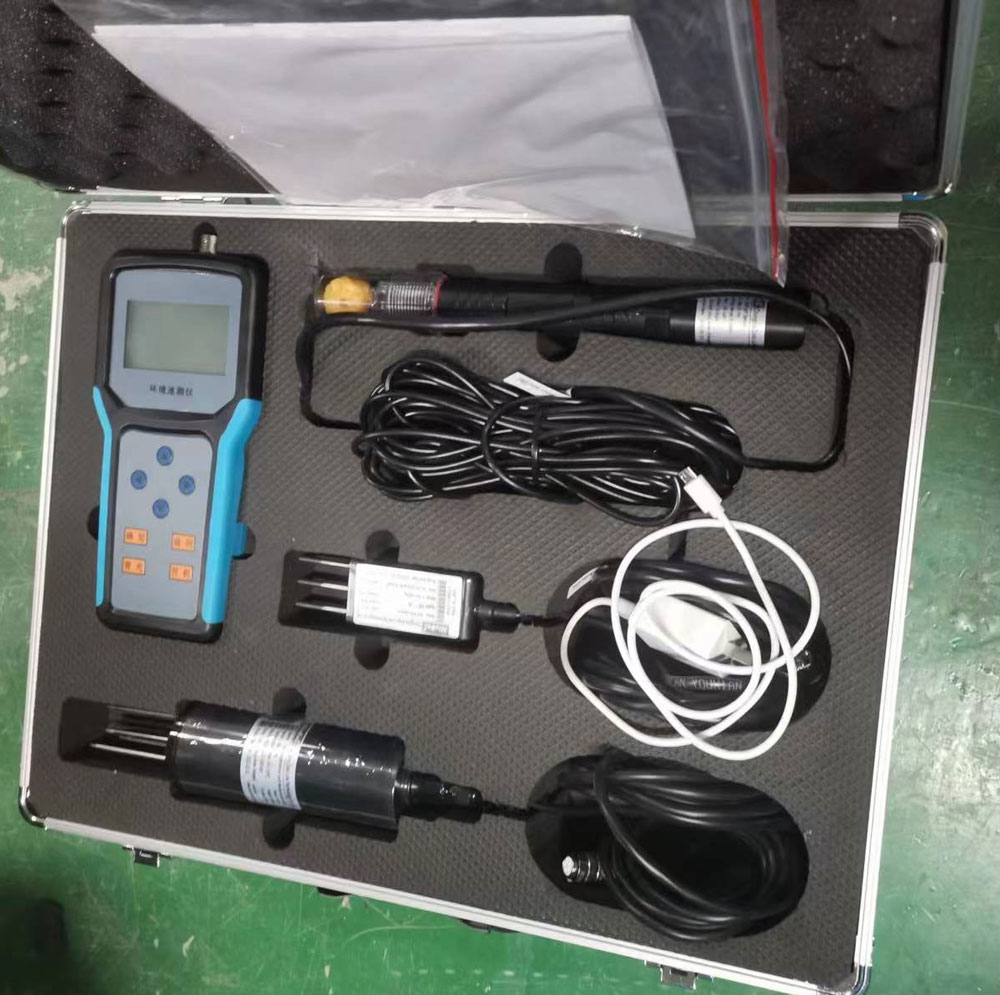

 Soil pH Measurement Instrument Product composition:

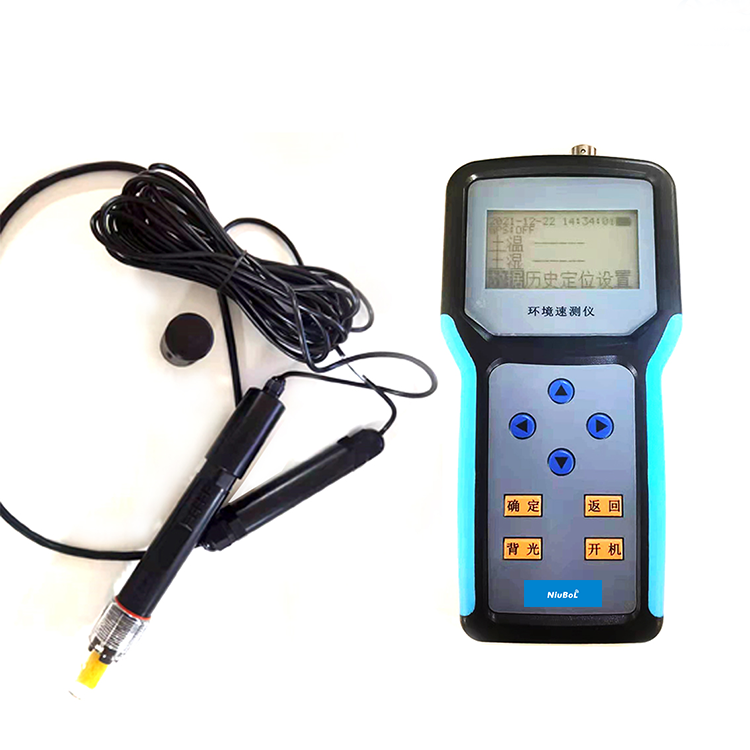

- Handheld meter

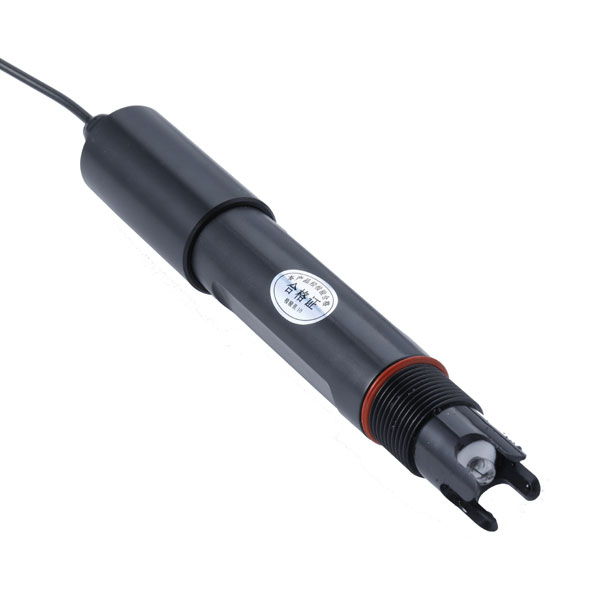

- Soil pH sensor

- USB cable

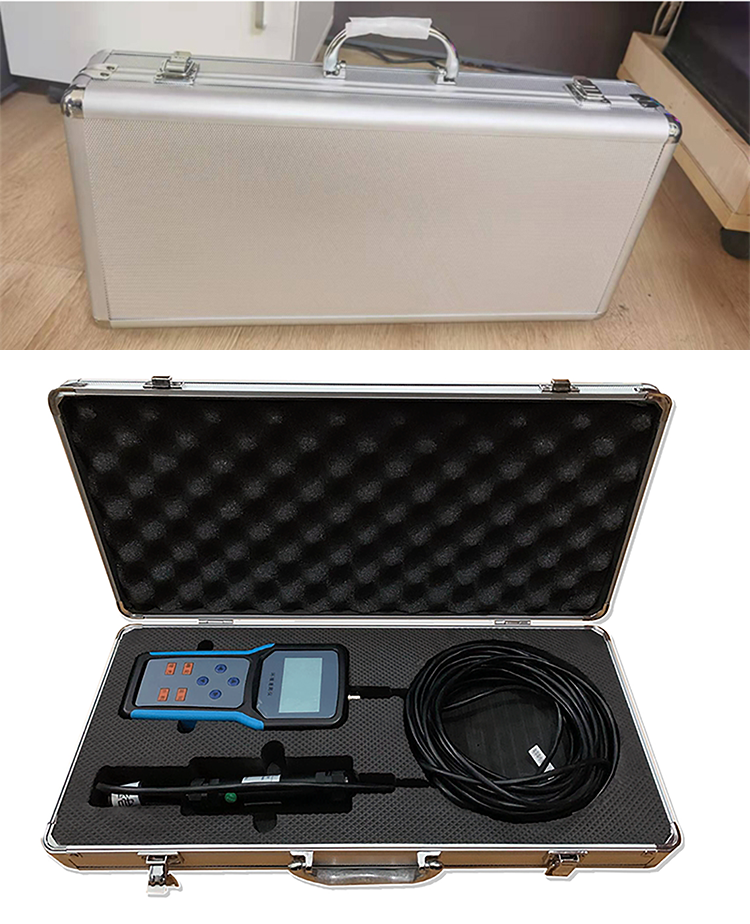

- Portable case

 Instrument for measuring soil ph Features

1. Portable and intuitive operation

   - Compact and lightweight: the compact design of the device, weighing about 0.5Kg, with dimensions of 405 × 100 × 100 mm (including packaging), the host size of 100 × 200 × 28 mm, easy to carry and field use.

   - Large screen display: Dot-matrix LCD display, clear display, English menu operation, user-friendly, light-touch buttons make the operation more simple and intuitive.

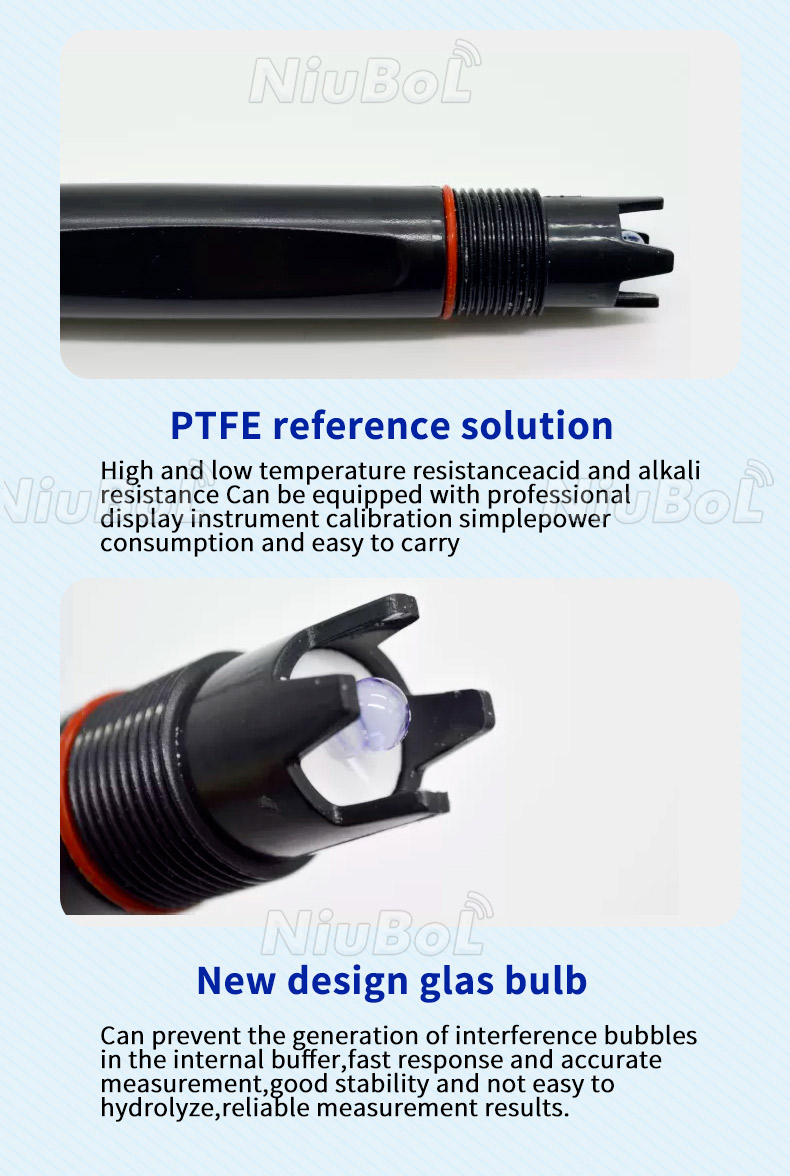

2. High-precision sensors

   - Consistency and interchangeability: the sensor probe has consistency, different parameters of the sensor interface can be interchanged, does not affect the measurement accuracy. The instrument can automatically recognize the sensor type, no need to manually set up the measurement elements, to ensure simple operation and accurate results.

   - pH measurement accuracy: ±0.02pH, resolution of 0.01pH, to ensure high precision and reliability of data.

3. Modular design, strong expandability

   - Flexible configuration: Users can add sensors for other meteorological parameters (e.g. temperature and humidity, salinity, conductivity, NPK, etc.) according to their needs, and they only need to buy the corresponding sensors, without the need to configure the mainframe again. This modular design makes the instrument more flexible and suitable for a variety of application scenarios.

4. Powerful data storage function

   - Mass storage: Built-in high-capacity memory chip can store up to 20,000 pieces of data. Users can either view the historical data directly on the host computer or import the data into the computer through the USB interface, which is convenient for subsequent analysis and archiving.

   - Power failure protection: even in the event of a power failure, the data saved in the host computer will not be lost, ensuring data integrity.

5. Flexible data acquisition mode

   - Manual Recording and Automatic Recording: Supports both manual recording and automatic recording modes. Users can set the sampling interval according to the actual needs, automatic recording and storage of data to adapt to different application scenarios.

6. Built-in GPS positioning function

   - Precise positioning: Built-in GPS module with latitude and longitude positioning function can accurately locate the information of the measurement point (latitude and longitude), and the positioning accuracy can be up to four decimal places, with an error of less than 5 meters. This allows users to accurately record the specific location of each measurement point for follow-up tracking and management.

7. Seamless data transmission

   - USB data export: Support USB data export, compatible with Windows 2000 and above operating systems, users can save the data in Excel format backup, convenient for long-term preservation and analysis.

   - Flash storage: Data is stored in Flash, which can be called by other software to ensure the safety and flexibility of data.

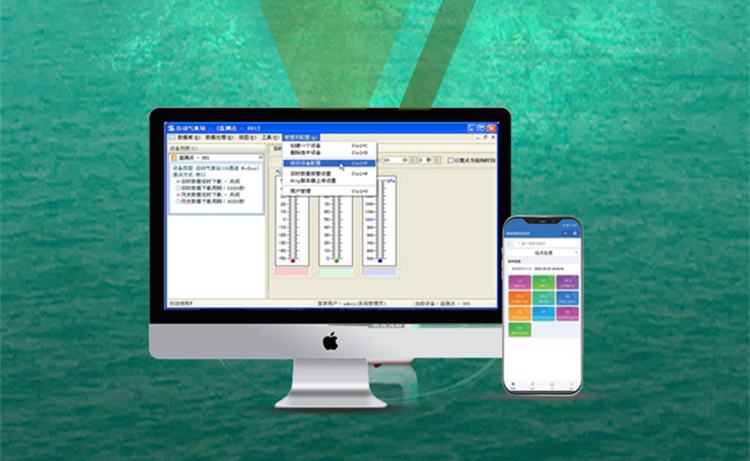

 Soil pH Measurement Instrument Software Support

- System Requirements: Suitable for Windows 2000 and above operating systems, providing historical data download and analysis.

- Data Management: Data is stored in Flash, easy to import into other software for in-depth analysis.

- Friendly interface: easy to operate, convenient for users to analyze and manage data.

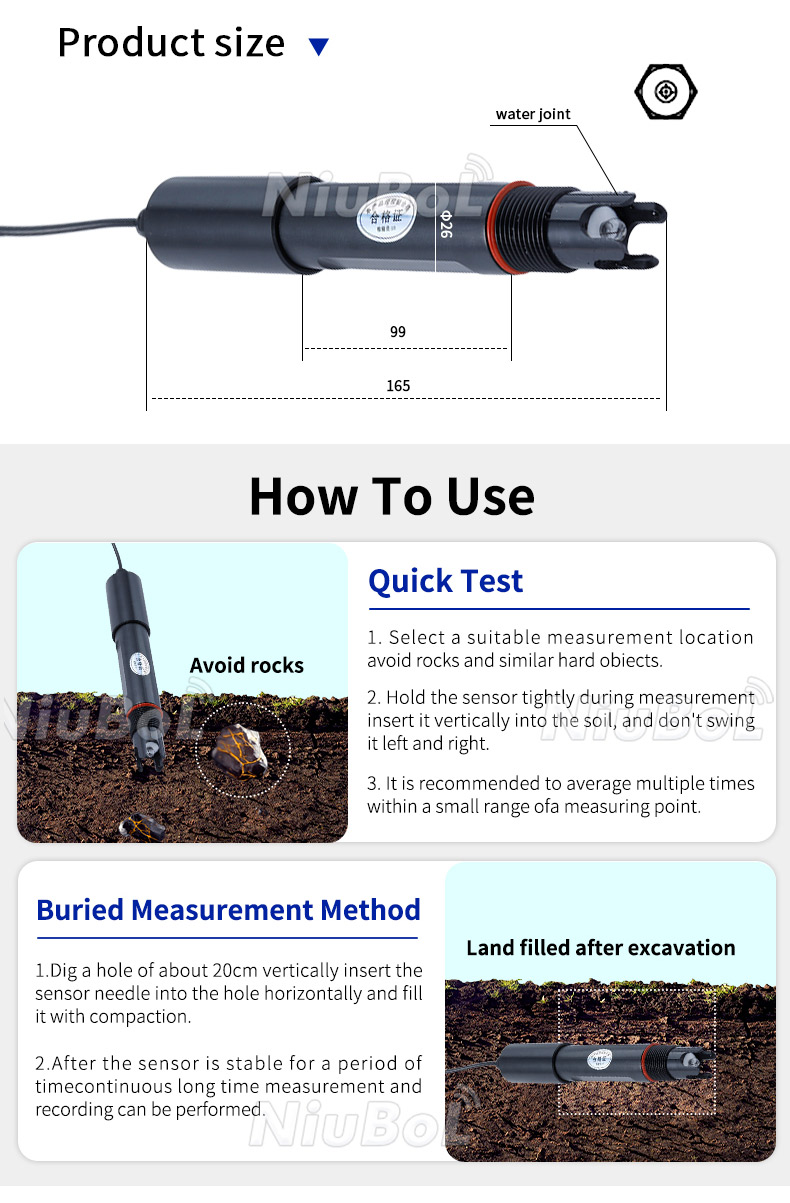

Soil pH Measurement Instrument instructions for use

1. Preparation

   - Installation of the sensor: When the sensor is shipped from the factory, the probe position is equipped with a transparent protective cover and built-in protective fluid to protect the probe. Before use, please remove the protective cover, fix the filter tank with the sensor, and wrap the filter mesh on the filter tank with the attached tie to prevent direct contact between the soil and the probe to avoid damage to the probe. Please make sure that the filter tank and filter mesh are firmly connected, and do not insert the probe directly into the soil.

2. Insertion into soil

   - Vertical insertion: Insert the probe partially vertically into the soil to a depth at least covering the filter. Under normal circumstances, the pH value in the air is between 6.2 and 7.8, but the pH value of the soil may vary in different areas, so you need to judge according to the actual situation.

3. Moistening with water

   - Pour in the right amount of water: After burying the sensor, pour in a certain amount of water around the soil to be measured, wait for a few minutes until the water is fully immersed in the probe, you can read the data on the instrument. Under normal circumstances, the soil is neutral, the pH value is about 7, but the pH value of the soil in different areas will be different, you need to judge according to the actual situation.

4. Performance check

   - Using pH reagents: Users can use the three included pH reagents and configure them according to the configuration method in the manual to check if the product is performing properly. This helps to ensure the accuracy of the measurement results.

 Soil pH Measurement Instrument Application Scenarios

- Agriculture and horticulture: Monitoring soil pH to optimize fertilization programs and improve crop yield and quality.

- Forestry and Vegetation Conservation: Evaluating soil conditions to guide reforestation and revegetation projects.

- Geological exploration: study soil chemical properties to assist in mineral resource exploration and environmental protection.

- Scientific research: Provide accurate soil pH data for research in ecology, environmental science and other fields.

- Environmental protection monitoring: monitoring soil pollution, evaluating the effectiveness of treatment, and safeguarding the health of the ecological environment.

- Teaching and research: Provide accurate data support to promote academic research and educational practice.

- Horticultural application: Ensure the best soil conditions for plant growth and optimize garden design.

 Summary

The Soil pH Measuring Instrument is a portable measuring tool that integrates a high-precision sensor, powerful data storage and flexible expansion functions. It can not only measure soil pH quickly and accurately, but also realize multi-parameter simultaneous measurement by additional sensors, which is widely used in agriculture, forestry, geological exploration, scientific research and other fields. With its portability, high accuracy and powerful data management functions, this soil pH meter becomes an ideal choice for professionals to help users better understand and manage the soil environment.

Thank you for choosing our products! If you have any questions or need technical support, please feel free to contact us. We will be happy to serve you.
