Snowpack Sensor - NBL-W-SNOW Intelligent Snow Depth Monitoring Sensor

Snowpack Sensor Product Overview

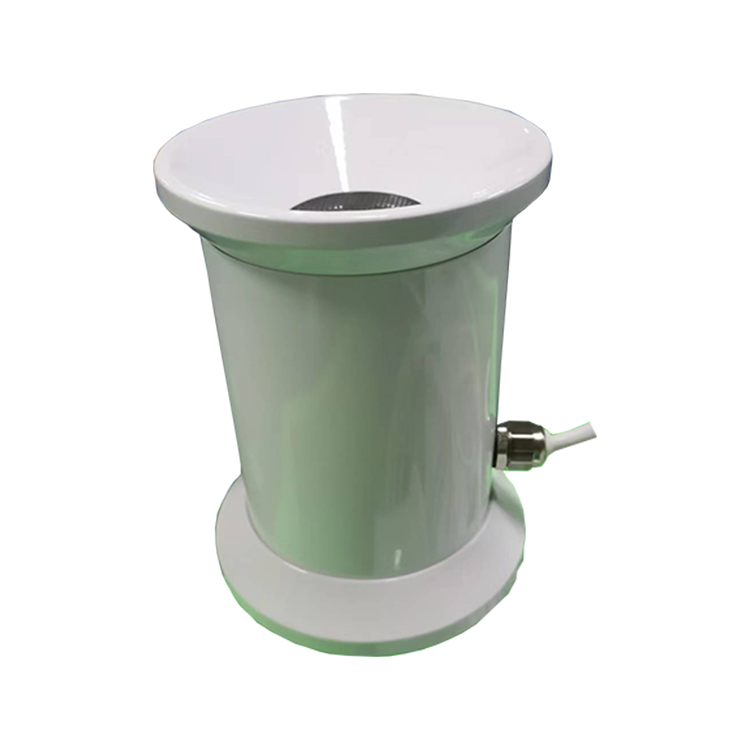

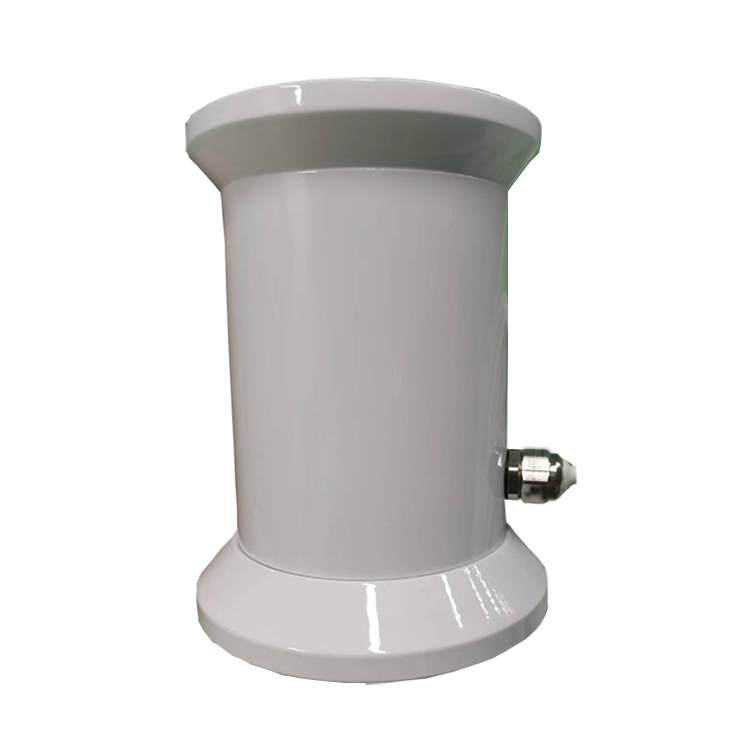

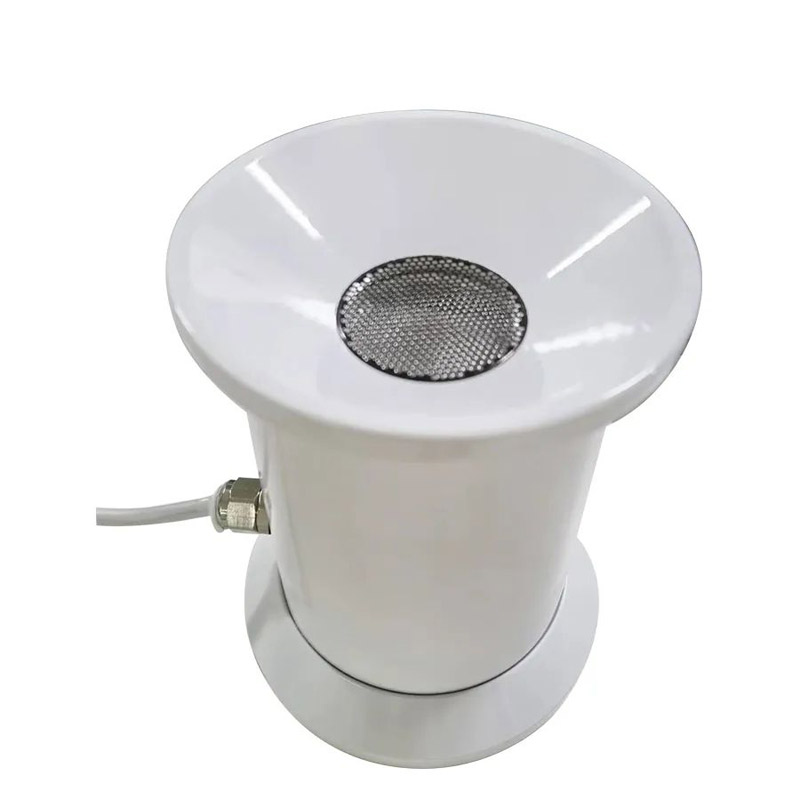

Welcome to use our Snowpack Sensor - NBL-W-SNOW intelligent snow depth sensor. The sensor adopts advanced ultrasonic telemetry technology, which accurately calculates the snow depth by transmitting 50KHz ultrasonic waves and measuring the time difference between signal transmission and return. It can realize automated continuous monitoring of snow depth and provide accurate and reliable snow depth data for many fields such as meteorology, airports, ports, laboratories, industry and agriculture, and transportation.

Snowpack Sensor Technical Parameters

Snowpack Sensor Product Features

Ultrasonic telemetry technology: By transmitting 50KHz ultrasonic waves and measuring the time difference between the transmitted and returned signals, the snow depth can be calculated accurately.

Wide applicability: Suitable for extreme environments from -40℃ to 50℃ and 100% RH humidity, ensuring stable operation in any bad weather. It can be widely used in meteorological monitoring, airport operation, port management, laboratory research, industrial and agricultural production and transportation management.

High-precision Measurement: Measuring range is 0-1000mm, and the measurement accuracy reaches ±0.1%FS, ensuring the accuracy and reliability of the data.

Intelligent monitoring: Equipped with intelligent acquisition system, it can automatically switch the working mode according to the real-time temperature to realize automatic monitoring.

Durable design: adapt to extreme working environment, working temperature range -40-50℃, storage temperature range -40-65℃, humidity ≤100%RH.

Intelligent heating system: automatic heating in low-temperature environment to maintain sensor performance, power consumption as low as 3W, taking into account the efficiency and energy saving.

Flexible communication: RS485 communication interface, 9600bps baud rate, support protocol and baud rate customization, easy to integrate into existing systems.

Snowpack Sensor instructions for use

To ensure the normal use and accuracy of the Snowpack Sensor, please follow the steps below for installation and setup:

1. Install the sensor:

Wire and install the sensor correctly as indicated in the wiring method and installation instructions.

Place the sensor in a 1.3m (±0.1m) detection position to ensure a secure installation.

Open the snow sensor probe protection cover.

2. Configure the collection system:

If equipped with the collector produced by the company, turn on the system power.

In the “Other Settings” → “Snow Settings” of the collector, set the starting working temperature of the snow sensor (default is 5℃, can be set by yourself).

After setting the snow temperature, select “snow detection” and switch the “stop” mode to “start” mode.

Click “Confirm” button, the system will automatically detect the base height of the sensor.

Note: If you have adjusted the height of the snow sensor, you need to reset the reference height according to the above operation.

3. Monitoring and data acquisition:

When the real-time temperature T＞T0, the collector automatically turns off the display value of the snow sensor.

When the real-time temperature T＜T0, the collector displays the test value of Snowpack Sensor, and the monitoring data of Snowpack Sensor can be acquired.

Cautions

Do not install or commission the sensor under extreme weather conditions as this may affect the performance of the sensor.

Regularly check the connecting wires and interfaces of the sensor to ensure reliable connection and avoid data loss.

If you find that the sensor performance decreases or malfunctions, please contact the after-sales service personnel in time to deal with it.

The company reserves the right to improve the performance and design of the product without prior notice.

Service and Guarantee:

We provide comprehensive technical support and after-sales service to ensure the worry-free operation of your equipment. If you have any questions, please feel free to contact our professional customer service team.

Snowpack Senso application scenarios:

- Weather station: real-time monitoring of snow depth changes, providing data support for weather forecasting.

- Traffic management: Ensure road safety, early warning of traffic risks caused by snow.

- Airport operations: to ensure flight safety, rapid response to the demand for snow removal.

- Scientific research: Long-term monitoring, providing valuable data for climate change research.

Successful cases:

- An international airport uses NBL-W-SNOW snow sensor to effectively monitor the snow depth of the runway and ensure flight safety.

- A weather station uses this product to provide accurate snow depth data for winter weather forecasting.

- A number of ski resorts use NBL-W-SNOW snow sensors to monitor snow thickness in real time and optimize the skiing experience.

The NBL-W-SNOW snowpack sensor is your reliable snow depth monitoring partner. Purchase the Snowpack Sensor today for an accurate and reliable solution for your snow depth monitoring applications!
