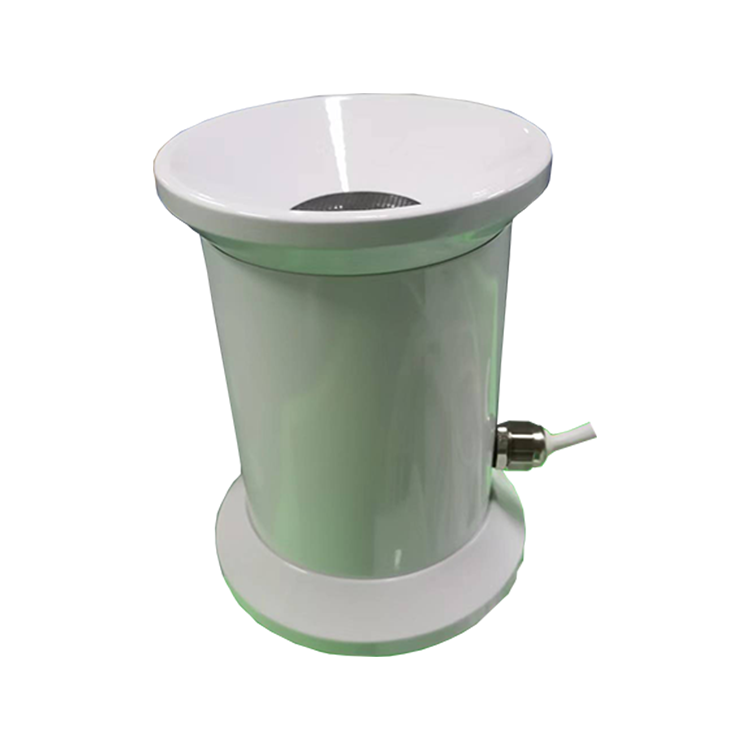

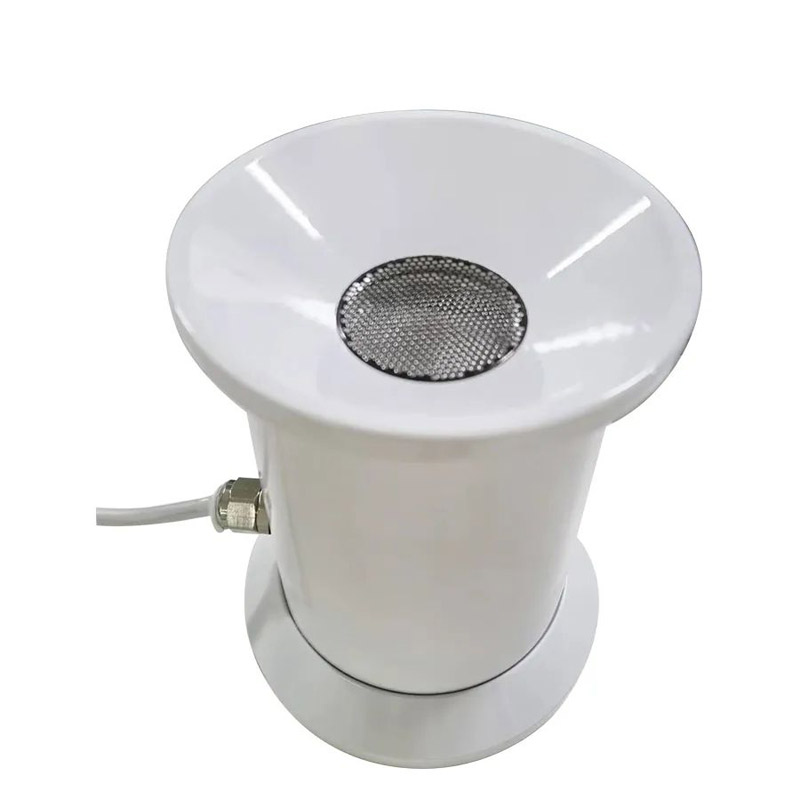

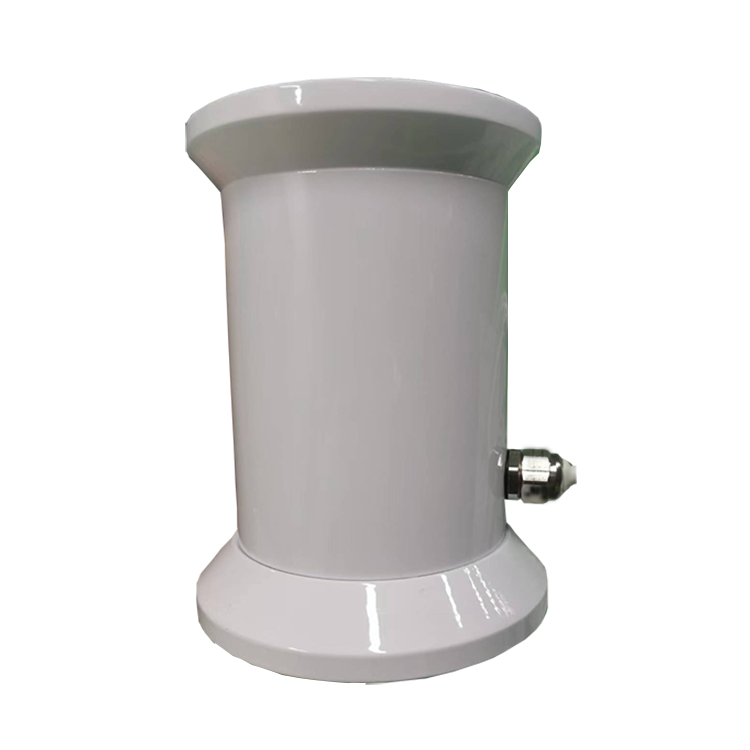

NBL-W-SNOW Snow Height Sensor Product Details

Welcome to use our NBL-W-SNOW Snow Height Sensor! This intelligent snow depth sensor adopts advanced ultrasonic telemetry technology, which realizes automated and continuous monitoring of snow depth. By transmitting 50KHz ultrasonic waves and measuring the time difference between the transmission and return of the signal, we are able to accurately calculate the depth of the snow.NBL-W-SNOW Snow Height Sensor is widely used in meteorology, airports, harbors, laboratories, agriculture, industry, and transportation, etc., which can provide you with a reliable guarantee for your measurement needs.

Snow Height Sensor Product Parameters：

Snow Height Sensor Technical Features

Ultrasonic telemetry technology: adopts ultrasonic measurement principle to realize non-contact snow depth monitoring, ensuring the accuracy and stability of the measurement results.

High-precision Measurement: Measurement range 0-1000mm, measurement accuracy of ±0.1%FS, to meet a variety of high-precision measurement needs.

Intelligent control: Support RS485 communication mode, baud rate 9600bps, convenient to connect with all kinds of collectors and control systems.

Wide range working environment: working temperature range -40-50℃, storage temperature range -40-65℃, humidity ≤ 100% RH, adapt to a variety of harsh environments.

Low power consumption design: power consumption is only 180mW at room temperature, and 3W when heating is turned on at low temperature (<5℃), energy saving and environmental protection.

Intelligent temperature-controlled heating: automatically adapts to low-temperature environments, keeping the sensor in the best working condition.

Real-time monitoring: continuous monitoring of snow volume changes, the difference between the two measurements is the new snow volume, without frequent manual intervention.

Snow Height Sensor instructions for use

1. Installation and wiring: Please follow the instructions in the wiring method and installation instructions for wiring and installation. Place the sensor in the detection position of 1.3m (±0.1m) and open the protective cover of the snow sensor probe.

2. System setup: If you are equipped with the collector produced by our company, please turn on the system and open the protective cover of the snow sensor probe. In “Other Settings”→“Snow Settings” of the collector, set the starting working temperature of the snow sensor (default is 5℃, you can set it by yourself). After the setting is completed, select “snow detection”, switch “stop” mode to “start” mode, and click “Confirm” button. “button. The system will automatically detect the base height of the sensor.

3. Calculation of height difference: The height difference between two measurements is the value of snow volume during the measurement time. For example, if the initial height of the installation is 1m, and the measurement value is 0.9m again after snowing, then the actual snow amount value is 0.1m at this time.

Snow Height Sensor application scenario:

- Meteorological research: Accurate recording of snowfall, help weather forecasting accuracy.

- Traffic management: guardian of airport and highway safety, early warning of snow accumulation risk.

- Environmental monitoring: long-term monitoring, providing valuable data for climate change research.

- Agricultural planning: Aiding agricultural decision-making, understanding the impact of snow and water resources on crops.

Why choose NBL-W-SNOW?

- Precision and efficiency: ±0.1%FS measurement accuracy to ensure scientific data.

- All-weather operation: -40℃ to 65℃ storage environment, fearless of extreme weather.

- Low Maintenance Costs: Optimized design reduces maintenance requirements for worry-free long-term operation.

- Intelligent Integration: Seamless connection with modern data acquisition systems to enhance monitoring efficiency.

The NBL-W-SNOW Snow Height Sensor provides you with accurate snow monitoring data and helps various industries to meet the challenges of snow conditions!

Cautions

If the height of the snow sensor is adjusted, be sure to reset the reference height as described above.

During use, please keep the sensor probe clean and dry to ensure the accuracy of the measurement results.

Our company is always committed to the continuous improvement and innovation of our products, and we reserve the right to make improvements to the performance and design of our products without prior notice. To ensure proper operation of the product, please be sure to read the product manual carefully.

NBL-W-SNOW type Snow Height Sensor, your intelligent snow depth monitoring expert! Welcome to inquire and purchase!

Ultrasonic Snow Depth Sensor data sheet

NBL-W-SNOW-Ultrasonic-Snow-depth-sensor-Manual4.0.pdf
