Smart Soil Moisture Sensor: The Smart Choice for Precision Agriculture

Smart Soil Moisture Sensor Product Overview

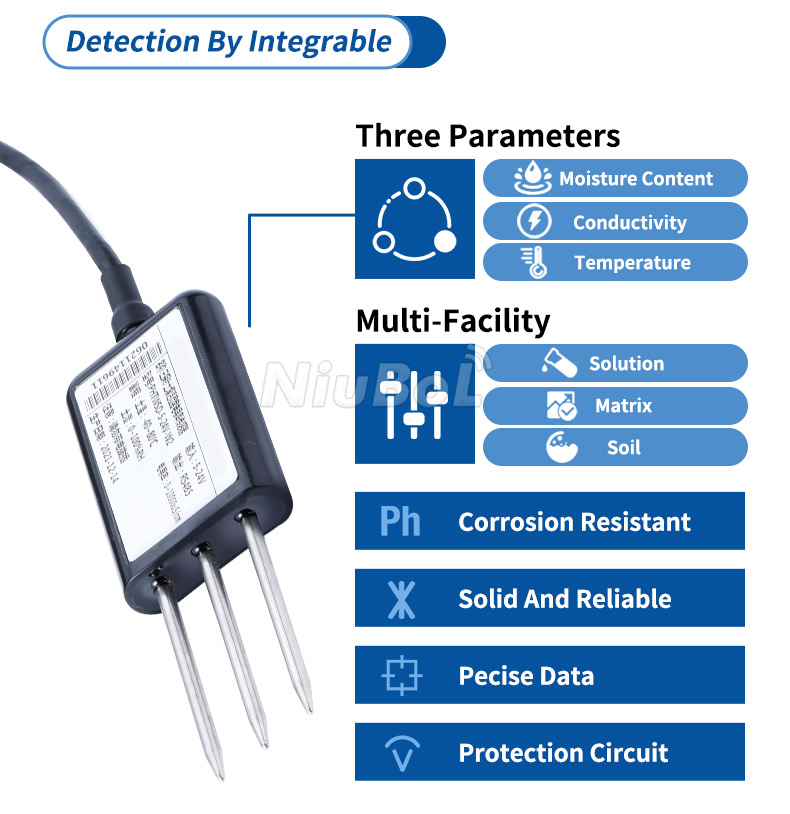

Smart Soil Moisture Sensor is a high-performance integrated soil temperature and moisture sensor that measures soil temperature and moisture simultaneously. It adopts the soil moisture FDR (Frequency Domain Reflectometry) method to directly and stably reflect the real moisture content of various soils by measuring the soil's dielectric constant. It is suitable for soil moisture monitoring, scientific experiments, agricultural irrigation, greenhouses, flowers and vegetables, grass pastures, soil rapid measurement, plant culture and other occasions.

Smart Soil Moisture Sensor Core Features

1. Dual-parameter measurement: integrated design, monitoring soil temperature and humidity at the same time, providing comprehensive soil condition information.

2. Durable electrodes: special alloy material electrodes, impact resistance, suitable for long-term burial, even in harsh conditions can maintain structural integrity.

3. Fully sealed design: IP68 protection level, acid and alkali resistant, can be used in long-term water immersion, adapt to various soil environments.

4. High precision and response speed: temperature accuracy ±0.5℃, humidity accuracy 5%, fast response to ensure the immediacy and accuracy of data.

5. Compatibility and ease of use: support DC5V-24V wide voltage power supply, RS485 output, using Modbus protocol, easy to integrate into various monitoring systems.

6. Measuring principle: Based on FDR method, the soil moisture content is accurately calculated through the change of dielectric constant.

7. Environmental adaptability: Operating temperature range -40~85℃, suitable for stable operation under extreme climatic conditions.

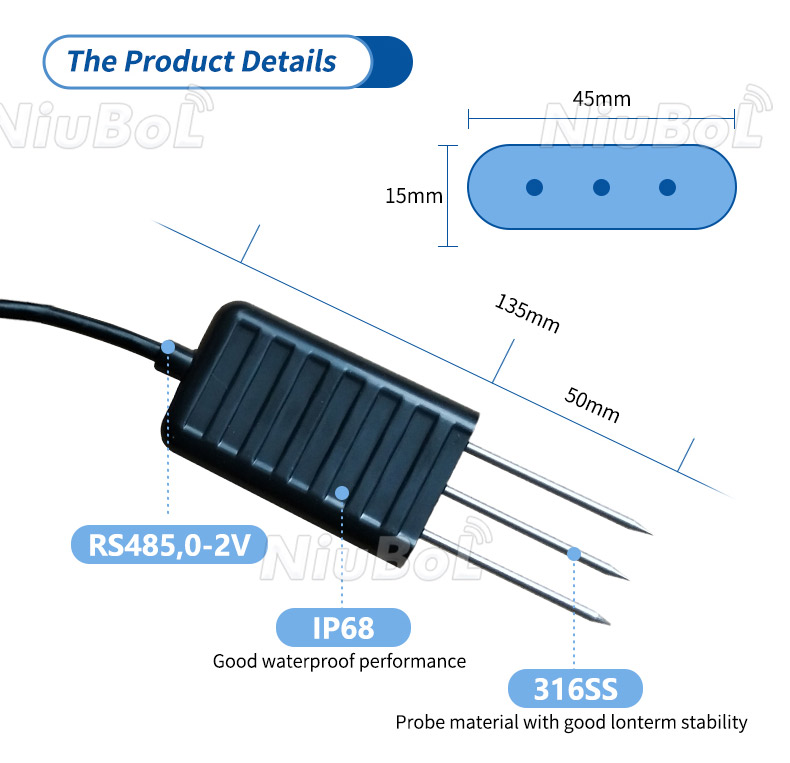

8. Physical characteristics: compact design, 50mm electrode length, easy to install and deep soil measurement.

9. Flexible installation: can be quickly inserted into the measurement, can also be buried in the soil for long-term monitoring, to adapt to the needs of different application scenarios.

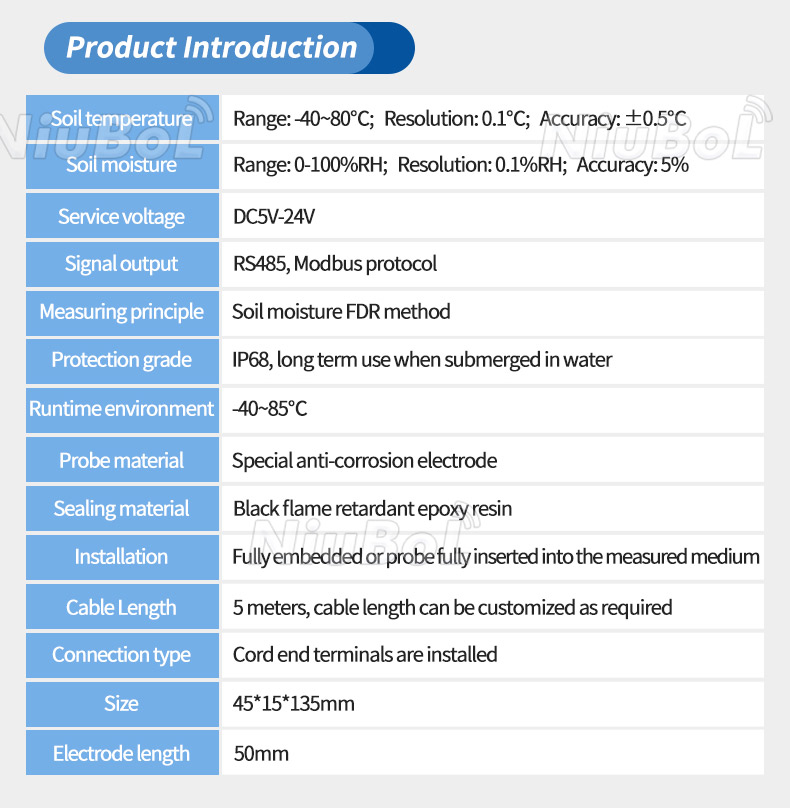

Smart Soil Moisture Sensor Technical Parameters:

Smart Soil Moisture Sensor Installation and Use

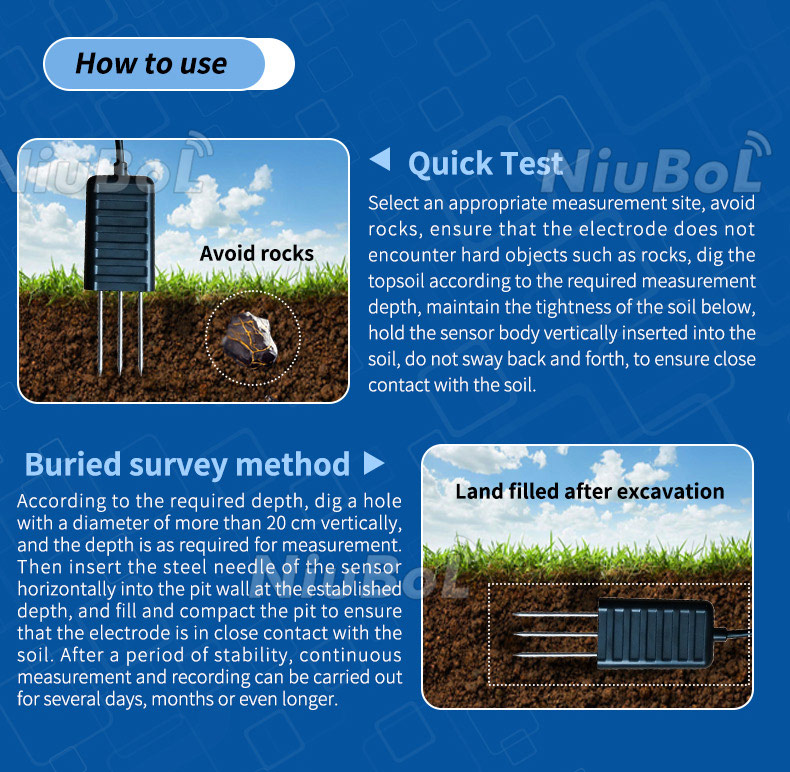

Quick Measurement Method: Choose a measurement point without stone interference, insert the sensor vertically to a predetermined depth, avoid shaking and ensure accurate data. Suitable for temporary monitoring or rapid assessment.

Buried Measurement Method: Excavate a pit of appropriate size, insert the sensor steel needle horizontally, fill in and compact the hole to realize long-term continuous monitoring. Suitable for scientific research experiments, farmland management and other long-term observation needs.

Precautions

When measuring on hard ground, it is recommended to drill a hole before inserting to ensure that the electrode is in full contact with the soil.

Avoid violent vibration and hard objects knocking to prevent damage to the sensor.

When using under strong sunlight, please take shading measures to prevent the sensor from overheating and affecting the measurement accuracy.

The applicable soil environment and application scenarios of this integrated soil temperature and humidity sensor are analyzed as follows:

Applicable soil environment

This sensor is applicable to a variety of soil environments, including but not limited to:

Different types of soil: Whether it is sandy, loamy or clay soil, it can be applied to different textures of soil because it reflects the real moisture content of soil by measuring the dielectric constant of soil.

Different moisture ranges: Its soil moisture measurement range covers 0-100% RH, which means it can be applied to a wide range of soil moisture conditions, from extremely dry to extremely wet.

Different temperature ranges: The soil temperature measurement range is between -40°C and 80°C, which covers a wide range of temperature environments from cold regions to tropical areas.

Smart Soil Moisture Sensor Application Scenarios

With its stable and reliable performance and wide applicability, this sensor has important applications in several fields, including but not limited to:

1. Agricultural irrigation: Through real-time monitoring of soil temperature and humidity, it helps farmers to accurately grasp the timing and amount of irrigation, realize water-saving irrigation, and improve crop yield and quality.

2. Greenhouse: In a greenhouse environment, soil temperature and humidity is one of the key factors affecting plant growth. This sensor can provide accurate data support to help growers adjust the greenhouse environment and optimize plant growth conditions.

3. Flower and vegetable planting: for flowers and vegetables and other crops with high requirements on soil environment, this sensor can provide timely information on soil temperature and humidity to help growers carry out scientific management and decision-making.

4. Grassland pasture management: In grassland pasture, soil temperature and humidity have an important impact on the growth and yield of pasture grass. By installing this sensor, the soil environment can be monitored in real time, providing scientific basis for pasture management.

5. Soil rapid measurement and scientific experiment: in soil scientific research and experiment, this sensor can provide accurate soil temperature and humidity data, providing strong support for researchers.

6. Environmental monitoring: in the field of environmental monitoring, this sensor can also be used to monitor the soil moisture status, providing data support for environmental protection and land use research.

In summary, this integrated soil temperature and humidity sensor with its stable and reliable performance and wide applicability, in agriculture, horticulture, environmental monitoring and other fields have important application value.

Summary

With its high performance, integrated design, special alloy electrode, sealed and durable, Smart Soil Moisture Sensor is an ideal choice for soil temperature and moisture measurement. Choose our products to provide accurate and reliable data to support your work in precision irrigation, crop growth monitoring or soil environment research. Contact us today for more details!

Soil Moisture Temperature sensor data sheet

NBL-S-THR-Soil-temperature-and-moisture-sensors-Instruction-Manual-V4.0.pdf

NBL-S-TM-Soil-temperature-and-moisture-sensor.pdf
