Remote rain gauge

Remote Rain Gauge rain sensor (transmitter) product details

 I. Remote rain gauge product overview

Remote Rain Gauge rain sensor (transmitter) is a high-precision telemetry equipment designed for meteorological stations (stations), hydrological stations, agriculture, forestry, national defense and other related departments. It can accurately measure liquid precipitation, precipitation intensity and precipitation start and end time, providing key data support for flood control, water supply scheduling, and water management of power stations and reservoirs. This product is strictly in accordance with the SL61-2003 hydrological automatic reporting system specification, GB11831-89 hydrological reporting device remote rain gauge, GB11832-89 tipping bucket rain gauge national standards for the production, assembly and calibration, to ensure the accuracy and reliability of the data.

Remote rain gauge technical parameters

Introduction of Data Collector

Data Collector is a feature-rich interface device for industry applications, supporting access to a wide range of sensors and instruments, suitable for a variety of complex monitoring scenarios. Its main features are as follows:

- Rich interface:

  - Supports 4 RS232 interfaces, 3 RS485 interfaces (1 of which is multiplexed with RS232), 1 I2C interface, 1 TIL level serial port, 4 switch input interfaces, 8 analog input interfaces (12-bit AD, supporting 4-20mA current or 0-5V voltage signals), 4 relay outputs, 5 power supply outputs (power supply for peripheral devices), etc., which is compatible with a variety of industrial Sensor acquisition needs.

- Remote communication:

  - Supports GPRS/4G/5G and other ways for data transmission, realizing remote monitoring and real-time data analysis.

- Flexible configuration:

  - Can simultaneously access multiple devices, sensors, meters, etc., to meet the needs of different application scenarios.

- Stable and reliable:

  - Built-in self-test mechanism to ensure data reliability and system stability, adapt to a variety of harsh environments.

 Remote rain gauge product advantages and features

1. High-precision measurement

   - Adopting advanced sensing technology and national standards to ensure the accuracy and reliability of measurement data.

2. Multiple Output Forms

   - Support a variety of output signal options, including switch signal, 0~2.5V/0~5V voltage output and RS485 digital communication, to meet different application scenarios and data collection needs.

3. Easy installation and maintenance

   - Reasonable structural design, easy installation and maintenance, reducing the user's cost of use.

4. Remote data transmission

   - Configured with data collector, it supports GPRS/4G/5G for data transmission, realizing remote monitoring and real-time data analysis.

5. Wide applicability

   - It is suitable for meteorological stations (stations), hydrological stations, agriculture, forestry, national defense and other fields, and provides powerful support for flood control, water supply scheduling, and water management of power stations and reservoirs.

6. Low power consumption design

- Optimize energy consumption, suitable for long-term field deployment, reduce maintenance costs.

7. Strong environmental adaptability

 - Wide temperature operating range, extreme weather resistance, to ensure all-weather stable operation.

8. Intelligent self-test

   - Built-in self-test mechanism to ensure data reliability and system stability.

9. Easy integration

   - A variety of output methods, easy to integrate with existing monitoring system, enhance the level of automation.

 Remote rain gauge application scenarios

1. meteorological monitoring

   - Used in meteorological stations (stations) to monitor precipitation and precipitation intensity, to provide data support for weather forecasting and climate research. 2.

2. hydrological monitoring

   - It is used in hydrological stations to monitor the precipitation of rivers, lakes and other water bodies, providing key data for hydrological forecasting and water resource management.

3. Agricultural applications

   - Monitoring precipitation in agriculture to guide agricultural production and water resource utilization, and improve crop yield and quality.

4. Forestry applications

   - Monitoring forest precipitation in the field of forestry to prevent natural disasters and protect the ecological environment.

5. Defense construction

   - Provide accurate precipitation data for the national defense department to support military training and operational planning.

6. Urban Drainage System

   - Monitoring urban drainage pressure, preventing flooding, and improving the city's emergency response capability.

7. Environmental Protection

   - Evaluate the impact of precipitation on the environment, such as acid rain monitoring, to protect the ecological environment.

 V. Remote rain gauge installation instructions

1. Selection of installation location

   - According to the actual demand, choose the ground, homemade cylinder, iron post flange or the roof of the house as the installation location of the sensor.

2. Adjust the leveling

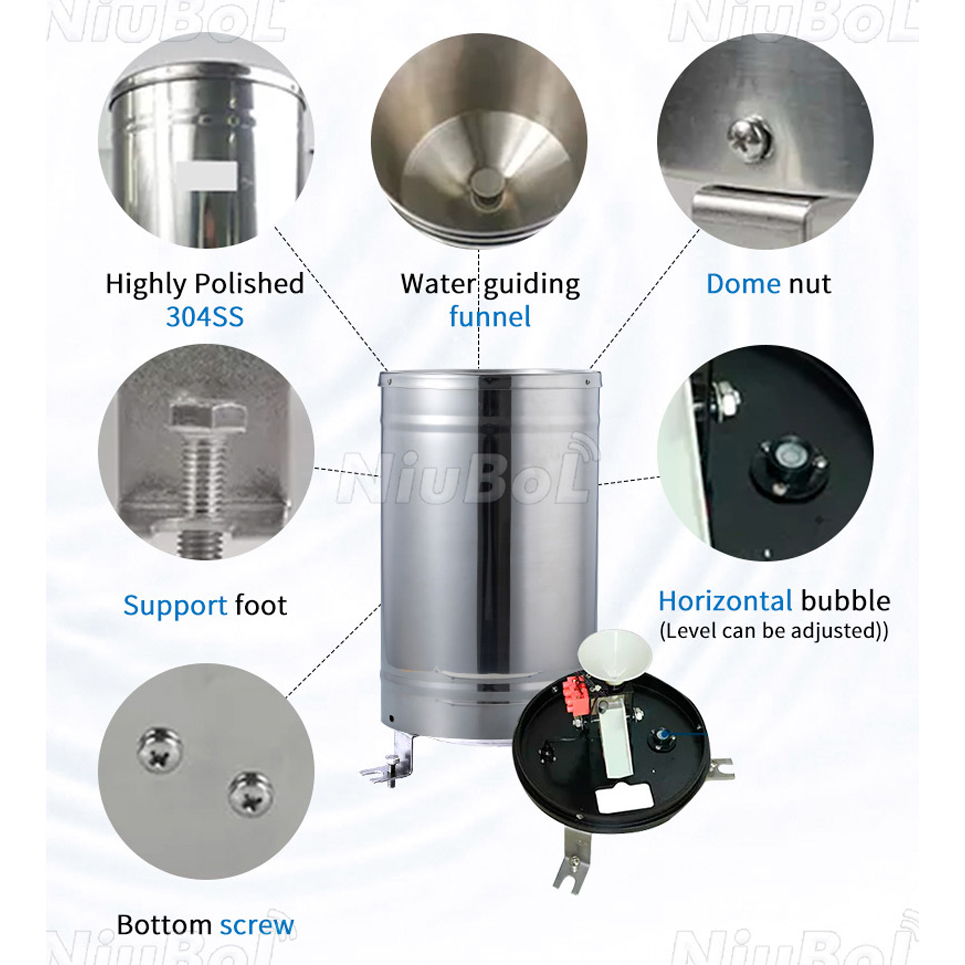

   - Use the three leveling screws on the chassis to make the leveling bubble indicate level (the bubble stays in the center of the circle), and then slowly tighten the three M8 × 80 expansion screws for fixing. If the leveling bubble changes, readjustment is required.

3. Assembly and fixation

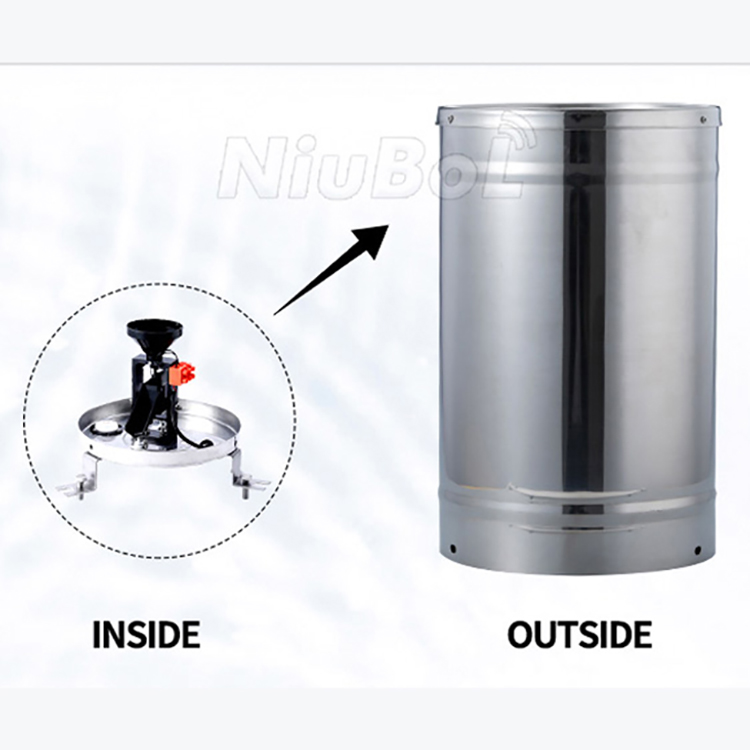

   - Assemble and fix the sensor as shown in the figure to ensure firm installation.

4. Function Test

   - After fixing, open the rain barrel, cut off the nylon tie on the funnel, slowly inject water into the rain sensor, observe the tipping process of the bucket, and check whether the data is received on the collection instrument. Finally, inject quantitative water (60-70mm), if the data displayed on the collecting instrument matches with the amount of water injected, it means that the instrument is normal, otherwise, it must be overhauled and adjusted.

5. Caution

   - During installation, please avoid disassembling the sensor to avoid affecting its performance and accuracy.

 Ordering information for Remote rain gauge

For more information about Remote Rain Gauge or to place an order, please contact our sales team. We will provide you with professional advice and service to ensure that you choose the most suitable product configuration.

Summary

The Remote Rain Gauge is not only a high-precision weather monitoring device, but also a bridge between the laws of nature, agricultural production and scientific research. Its excellent performance and wide range of applications make it the ideal choice for modern automatic hydrological reporting systems and field stations. Through accurate precipitation monitoring, the device provides strong support for flood control, water supply scheduling, power station reservoir water management and other fields, helping scientific decision-making and guarding the harmonious coexistence of nature and human society.

Choose Remote Rain Gauge to make your monitoring smarter and more convenient, contributing to the development of hydrology, meteorology, agriculture and other fields. We are committed to providing users with high quality products and services, and look forward to your cooperation and support!
