Photosynthetically active radiation sensor

NBL-W-PARS Photosynthetically active radiation sensor (PAR SENSOR) Product Details

 I. Photosynthetically active radiation sensor product introduction

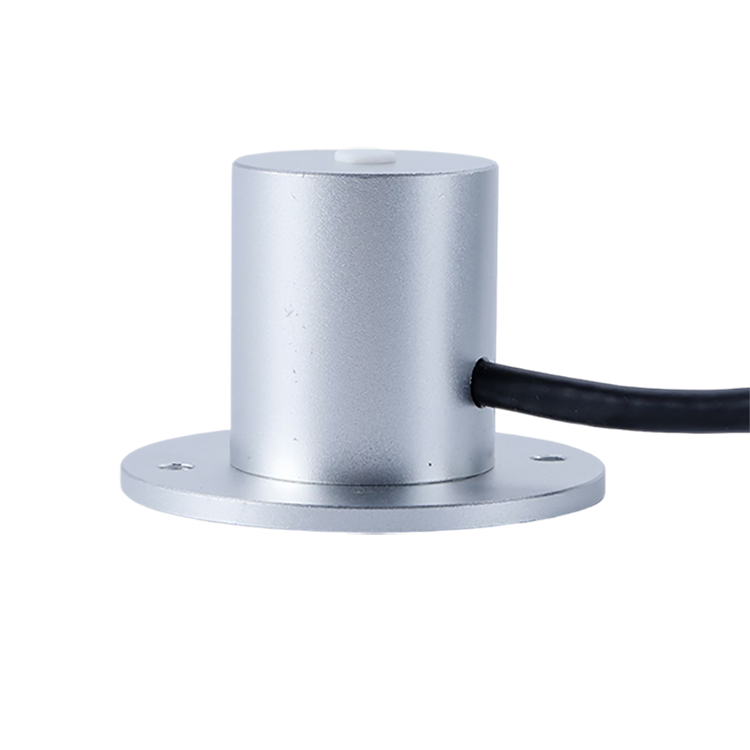

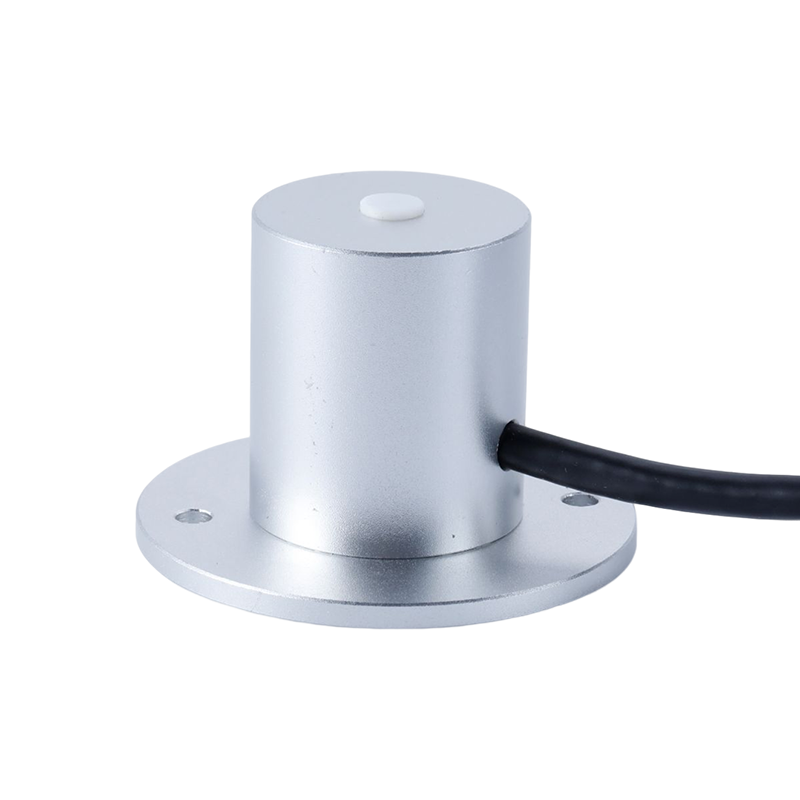

NBL-W-PARS Photosynthetically Active Radiation Sensor (PAR Sensor) is a high-precision instrument specially designed for the measurement of natural light Photosynthetically Active Radiation (PAR) in the wavelength range of 400-700nm. The device adopts advanced silicon photo detector and high performance optical filter to ensure the accuracy and reliability of measurement data.NBL-W-PARS is suitable for agricultural meteorology, crop growth research, greenhouse management, ecosystem research and other fields, providing reliable data support for scientific research and production.

Technical specifications of photosynthetically active radiation sensor (PAR sensor)

 Calculation formula

Voltage type (0～2.5V output)

E= V /2. 5 × 2000

(E is measured radiation value (W/m2), V is output voltage (V))

Fourth, photosynthetically active radiation sensor product features

1. Efficient spectral response

   - The use of precision silicon photo-detectors with 400 to 700nm optical filters ensures accurate capture of the spectral range critical to plant photosynthesis.

2. Wide Measuring Range

   - The measuring range covers 0 to 2000 W/m², which can meet the research needs under different light intensities and adapt to various environmental conditions from low light to high light.

3. Flexible power supply and output

   - Support DC 12V-24V DC power supply, provide a variety of output options:

     - Voltage output: 0~2.5V, 0~5V

     - Digital communication interface: RS485 (optional)

   - Flexible power supply and output options make it compatible with various data acquisition systems and monitoring platforms.

4. Excellent environmental adaptability

   - The operating temperature range is from -40℃ to 65℃, and the relative humidity range is from 0 to 100% RH, which ensures stable operation under extreme conditions and is suitable for all-weather outdoor environments.

5. Fast Response and Accuracy

   - Response time is as fast as 1 second (99%) and temperature effect is as small as 0.05%/°C, ensuring instantaneous and accurate data, suitable for real-time monitoring in dynamic environments.

6. Cosine correction optimization

   - Optimized cosine response up to 80° angle of incidence provides accurate measurements even in non-direct light, ensuring comprehensive and representative data.

7. High sensitivity and low internal resistance

   - Sensitivity of 5 to 50µv/µmol-s-¹ and internal resistance of less than 2K ohms ensure efficient and stable signal transmission and reduce measurement errors.

8. Easy to use

   - Direct output voltage signal, can be easily connected with digital voltmeter or data collector to realize data recording and analysis, easy and fast operation.

 Installation and maintenance of photosynthetically active radiation sensor (PAR sensor)

1. Selection of site

   - The ideal location should ensure that there is no obstacle on the upper end of the sensor element, no obstacle with height angle more than 5° on the sunrise and sunset orientation, and avoid shadows falling on the sensor surface, so as to ensure the accuracy of the measurement data.

2. Installation steps

   - Before installation, please check the product for transportation damage and contact the manufacturer in time.

   - Use two stainless steel screws to firmly fix the photosynthetically active radiation sensor on the bracket, adjust the horizontal position and fasten it.

   - Connect the output wires to the data collector box and start observing the data.

3. Maintenance

   - Check at least once a week to make sure the cosine correction piece is clean, remove deposits such as ice, snow, dust, etc., and keep the sensor surface clean to ensure the measurement accuracy.

   - When using a digital voltmeter to measure, divide the measured voltage value by the sensitivity coefficient of the photosynthetically active radiation sensor to get the radiation amount.

 Application areas of photosynthetically active radiation sensor (PAR sensor)

1. Precision agricultural management

   - By monitoring photosynthetically active radiation at wavelengths from 400 to 700 nm, it helps farmers and researchers optimize crop growth conditions. Understanding light intensity can help adjust irrigation, fertilization and shading strategies to improve crop yield and quality.

2. Plant physiology research

   - In plant biology research, photosynthetically active radiation is a key parameter for assessing the efficiency of photosynthesis. It helps scientists to understand the differences in light requirements of different plants and how to adjust light conditions at different growth stages to promote growth.

3. Environmental impact assessment

   - Through continuous monitoring of PAR, the impact of climate change and environmental pollution on vegetation growth can be assessed, providing data support for ecosystem management and conservation.

4. Greenhouse and growth chamber control

   - In artificially controlled environments, photosynthetically active radiation (PAR) sensors ensure that plants receive the optimal amount of light, which is critical for precise control of growth experiments and productivity in commercial greenhouses.

5. Climate Research and Modeling

   - PAR measurements are important for understanding the global carbon cycle and predicting climate change. It helps scientists build more accurate ecosystem models to assess the contribution of photosynthesis to the global carbon balance.

6. Resource allocation and optimization

   - In large-area farmland management, by analyzing PAR distribution, crop layout can be reasonably planned to ensure efficient use of light resources and reduce resource waste.

7. Education and popularization of science

   - As a teaching tool, the photosynthetically active radiation sensor can visualize the physical basis of photosynthesis and deepen students' understanding of the laws of nature.

8. Long-term monitoring and trend analysis

   - Long-term recording of PAR data can analyze inter-annual changes and provide scientific basis for agricultural policy making, biodiversity conservation and climate change adaptation strategies.

 Order Photosynthetic Active Radiation Sensor

For more information about NBL-W-PARS photosynthetically active radiation sensor (PAR sensor) or to place an order, please contact our sales team. We will provide you with professional advice and services to ensure that you choose the most suitable product configuration.

 Product Support

We provide comprehensive technical support and after-sales service to ensure your use without worry. If you have any questions, please feel free to contact us, our technical staff will be happy to serve you.

Summarize

NBL-W-PARS photosynthetically active radiation sensor (PAR sensor) is not only a technical tool, but also a bridge connecting the laws of nature, agricultural production and scientific research. Its value lies in enhancing the intelligence of agricultural production, promoting the sustainable development of ecosystems, and deepening our understanding of plant growth and environmental response mechanisms. Choose NBL-W-PARS to make your experiments more reliable and efficient, and help crops grow healthily every step of the way.

Photosynthetically Active Radiation Sensor (PAR Sensor) data sheet

NBL-W-PARS-RAR-SENSOR-User-Manual.pdf
