Pyranometer: Instruments for measuring solar radiation

There are several instruments commonly used for measuring solar radiation.Here are some of the main ones:

1.Pyranometer: A pyranometer is specifically designed to measure the total amount of solar radiation received by a surface.It measures the solar irradiance, which is the amount of solar energy per unit area per unit time.

A solar pyranometer is an instrument used to measure the solar irradiance (sunlight) received on a surface. It is a key tool in solar energy research, climate studies, and the monitoring of solar power systems. The term "pyranometer" comes from the Greek words "pyr," meaning fire, and "nomos," meaning measure. This instrument does not measure the total amount of solar energy that reaches the Earth's atmosphere, which would be done by a satellite-based sensor, but rather the energy that reaches a specific point on the Earth's surface.

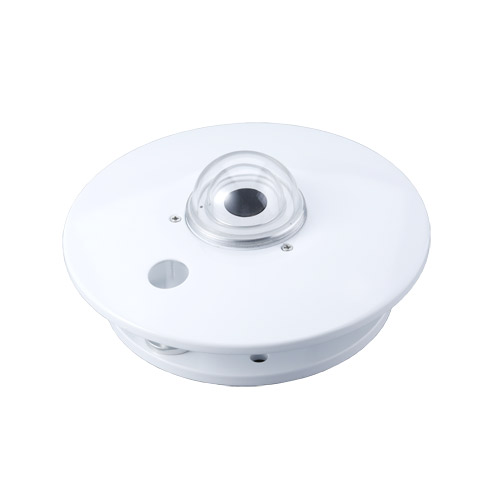

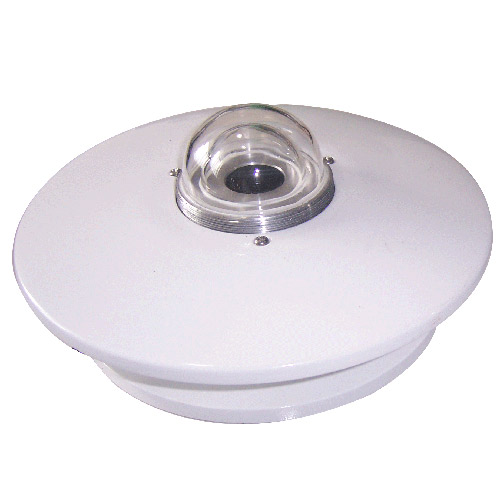

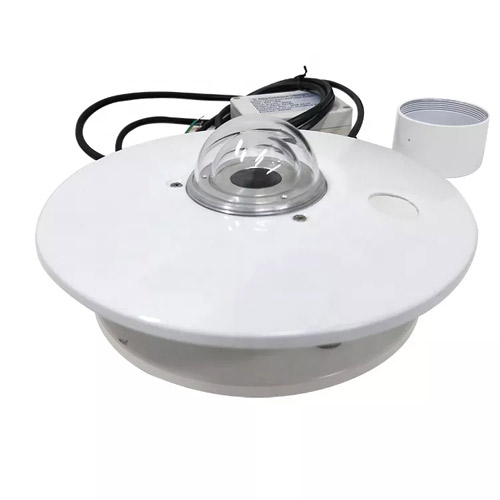

The solar pyranometer detects the solar radiation in the visible and near-infrared range of the electromagnetic spectrum. It typically consists of a flat sensor with a black surface to absorb the incoming radiation, surrounded by a clear dome to protect the sensor from the atmosphere and to ensure that the measurement is not affected by rain, snow, or other weather conditions. Some pyranometers also have a heat sink to maintain a stable temperature for accurate measurements.

The output of a solar pyranometer is usually expressed in terms of solar irradiance, which is measured in watts per square meter (W/m²). The data collected by solar pyranometers are used to study the Earth's energy balance, to assess the potential for solar power generation, and to understand how solar radiation affects the environment. They are also used in solar farming, where the intensity and duration of sunlight are mapped for agricultural purposes.

It's important to note that solar pyranometers are sensitive to the angle of incidence of the sunlight, as well as to the spectral distribution of the radiation. Calibration is crucial to ensure accurate measurements, and pyranometers are often calibrated against a reference standard under specific conditions.

2.Pyrheliometer: A pyrheliometer is used to measure the direct beam solar radiation or direct normal irradiance (DNI).It is designed to measure the solar radiation coming directly from the sun without any atmospheric interference.

3.Sunshine Recorder: A sunshine recorder is a simple instrument that measures the duration of sunshine over a given period.It consists of a glass sphere that focuses sunlight onto a strip of photosensitive paper, leaving a trace that indicates the presence of sunshine.

4.Spectroradiometer: A spectroradiometer measures the spectral distribution of solar radiation across different wavelengths.It provides detailed information about the intensity of solar radiation at different parts of the electromagnetic spectrum.

5.Solarimeter: A solarimeter is a handheld instrument used to measure solar irradiance.It typically includes a photodiode or a silicon sensor that detects solar radiation and provides instantaneous measurements.

6.Actinometer: An actinometer is used to measure the intensity of ultraviolet (UV) radiation from the sun.It is commonly used in environmental monitoring and UV index measurements.

7.Pyroheliometer: A pyroheliometer is similar to a pyrheliometer but uses a thermopile sensor instead of a photodiode.It measures the direct solar radiation and provides accurate readings for research purposes.

 These instruments are often used in combination with other sensors and data loggers to obtain comprehensive information about solar radiation levels, spectral distribution, and other related parameters.The choice of instrument depends on the specific requirements of the application and the desired accuracy of measurements.
