Modbus weather station: the fusion of accurate monitoring and efficient communication

In the field of modern weather monitoring, Modbus weather station has gradually become the preferred equipment for many weather monitoring projects due to its efficient data communication capability and accurate monitoring precision. In this paper, we will introduce the basic concept of Modbus weather station, the characteristics of Modbus protocol, the sensors used and their output modes in detail, and at the same time discuss the advantages and disadvantages of Modbus weather station and its performance in different application scenarios.

I. What is Modbus weather station?

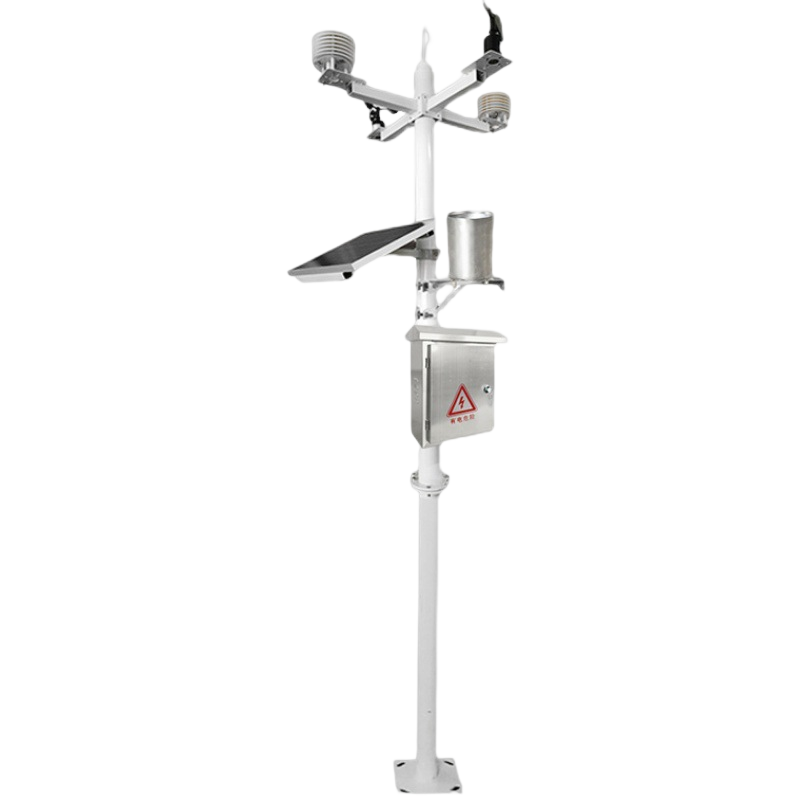

Modbus weather station is a kind of weather monitoring equipment integrating data acquisition, processing and communication. It adopts Modbus protocol for data communication, and is able to monitor and record a variety of meteorological parameters in real time, such as wind speed, wind direction, temperature, humidity, air pressure, rainfall and so on. And upload these data to the meteorological monitoring system or cloud platform through Modbus protocol, users can view and analyze the meteorological data anytime and anywhere, providing scientific basis for meteorological forecast, agricultural production, environmental monitoring and other fields.

Introduction of Modbus Protocol

Modbus protocol is a widely used communication protocol in the field of industrial automation, developed by Modicon (now belonging to Schneider Electric) in 1979. It specifies the format and rules for transmitting data between devices.Modbus protocol adopts the master-slave communication mode, i.e., a device acts as a master and is responsible for initiating the data request, while other devices act as slaves and are responsible for responding to the data request of the master. Serial communication (e.g. RS-232, RS-485) and network communication (TCP/IP) are supported. This communication mode enables Modbus weather station to realize efficient data exchange and sharing with other weather monitoring devices or systems.

Sensors and their output modes

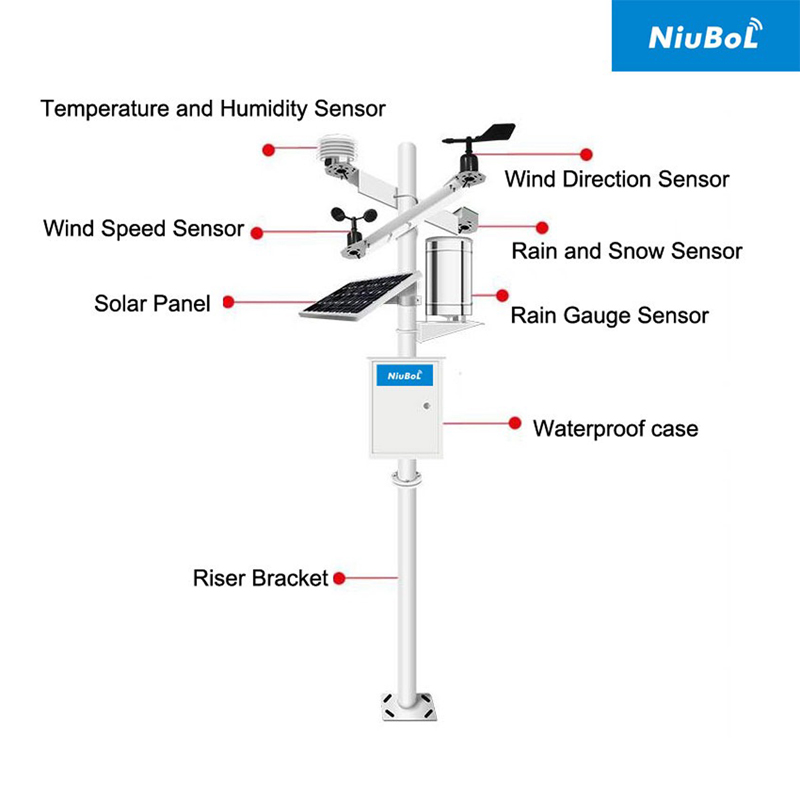

Modbus weather stations are usually equipped with a variety of sensors to monitor different weather parameters. These sensors include but are not limited to:

Wind speed sensor: used to monitor the change of wind speed, usually with analog signal or digital signal output.

Wind direction sensors: used to monitor changes in wind direction, usually with a digital signal output.

Temperature sensors: used to monitor the temperature of air or soil, usually using analog or digital signal output.

Humidity sensor: used to monitor the air or soil humidity, usually using analog signals or digital signal output.

Barometric pressure sensor: used to monitor changes in atmospheric pressure, usually using analog signals or digital signal output.

Rainfall Sensor: Measures the amount of rainfall.

The output of the sensors in a Modbus weather station depends mainly on their type and manufacturer. In general, the analog signal output usually uses standard signals such as 4-20mA or 0-5V, while the digital signal output usually uses protocols such as Modbus RTU, Modbus TCP, and other protocols to communicate with serial communication interface outputs such as RS-485 or RS-232.

These sensors output analog signals (such as voltage or current changes) or digital signals, which are encoded according to the Modbus protocol after analog-to-digital conversion (ADC) and transmitted to the data collection equipment in ASCII or RTU (Remote Terminal Unit) format.

Advantages and Disadvantages of Modbus Weather Station

Advantages of Modbus weather station:

1. Efficient communication: Modbus protocol is characterized by simplicity, ease of use and high scalability, which makes Modbus weather station able to realize efficient data exchange and sharing with other weather monitoring equipment or systems.

2. Accurate monitoring: Modbus weather station is equipped with a variety of high-precision sensors, which can monitor and record a variety of meteorological parameters in real time, providing scientific basis for weather forecasting and agricultural production.

3. Easy to integrate: Modbus weather station supports a variety of communication protocols and interfaces, which is easy to integrate and expand with the existing weather monitoring system or cloud platform.

4. Flexible expansion: Users can add or remove sensors as needed without drastically changing the whole system.

Disadvantages of Modbus weather station:

1. Higher cost: Because Modbus weather station needs to be equipped with a variety of high-precision sensors and communication equipment, its cost is relatively high.

2. Higher requirements on communication environment: Modbus protocol needs stable network environment support in the communication process, if the network environment is unstable or there is interference, it may affect the data transmission quality and real-time.

3. Limited transmission speed: compared with other communication protocols, Modbus transmission speed is slow.

4. Insufficient security: Modbus protocol itself does not provide encryption, may need additional security measures.

V. Application Scenarios of Modbus Weather Station

Modbus weather station is widely used in the following fields:

Weather forecasting: Provide scientific basis for weather forecasting through real-time monitoring and recording of many kinds of weather parameters.

Agricultural production: Adjust the agricultural production plan according to the meteorological data to improve the efficiency of agricultural production and yield.

Environmental monitoring: monitoring the concentration of pollutants in the atmosphere, temperature, humidity and other parameters to provide data support for environmental protection.

Energy management: Adjust energy supply plan according to meteorological data to improve energy utilization efficiency.

Aviation safety: airport weather stations provide key flight weather information to ensure flight safety.

Scientific research and education: provide reliable data sources for meteorological research and teaching.

Summary

With its efficient data communication capability and precise monitoring accuracy, Modbus weather station has a wide range of application prospects in the field of meteorological monitoring.Modbus weather station plays an important role in the field of meteorological monitoring with its strong compatibility, flexibility and reliability. Despite certain transmission speed and security problems, Modbus weather station is still an efficient and practical solution for weather monitoring through continuous technological innovation and optimization. With the development of intelligent, networked and IoT technologies, Modbus weather station will show its unique value in more fields.
