Industrial Rain Gauge

Industrial rain gauge product details

Product name: Industrial Rain Gauge

Industrial Rain Gauge is a high-precision, highly reliable precipitation measurement equipment, in strict accordance with the relevant national standards (SL61-2003 Hydrological Automatic Measuring and Reporting System Specification, GB11831-89 Hydrological Measuring and Reporting Devices Telemetric Rain Gauge, GB11832-89 Tipping Bucket Rain Gauge) to organise the production, assembly and calibration. The device is suitable for meteorological stations (stations), hydrological stations, agriculture, forestry, national defence and other relevant departments for telemetry of liquid precipitation, precipitation intensity, precipitation start and end time and other key meteorological data. At the same time, it can also be widely used in hydrological automatic measurement system and automatic field measurement station for the purpose of flood control, water supply scheduling, water condition management of power station and reservoir.

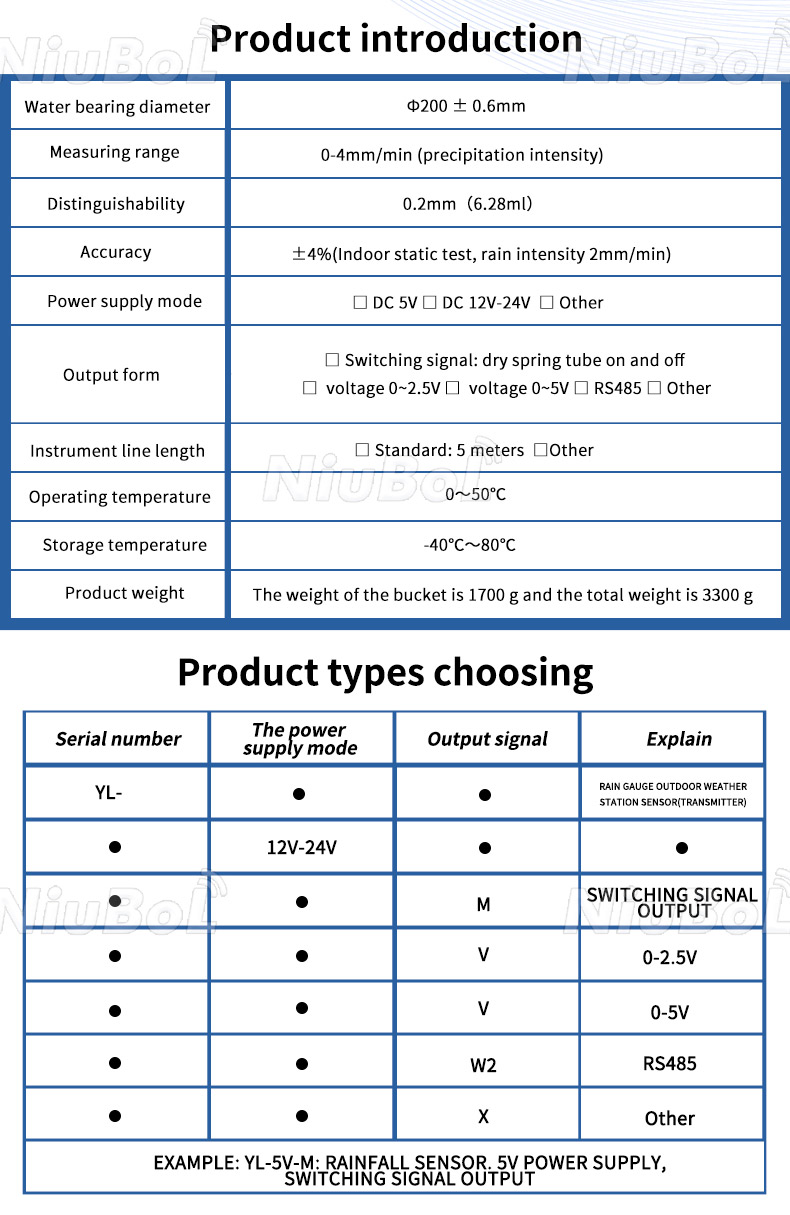

Industrial Rain Gauge technical parameters:

Industrial Rain Gauge product features:

1. High-precision measurement: adopting advanced sensing technology and precise manufacturing process to ensure the accuracy and stability of measurement data.

2. Multiple power supply modes: Support DC 5V and DC 12V-24V power supply modes to meet the needs of different application scenarios.

3. Diversified output forms: Provide switch signal (reed switch), voltage 02.5V, voltage 05V and RS485 output forms, which are convenient for users to choose and configure according to the actual needs.

4. Long-life design: the use of high-quality materials and advanced production technology, to ensure that the equipment in harsh environments can still be a long-term stable operation.

5. Easy to install and maintain: reasonable structural design, easy to install, while providing detailed operation and maintenance guide, convenient for users to carry out routine maintenance and troubleshooting.

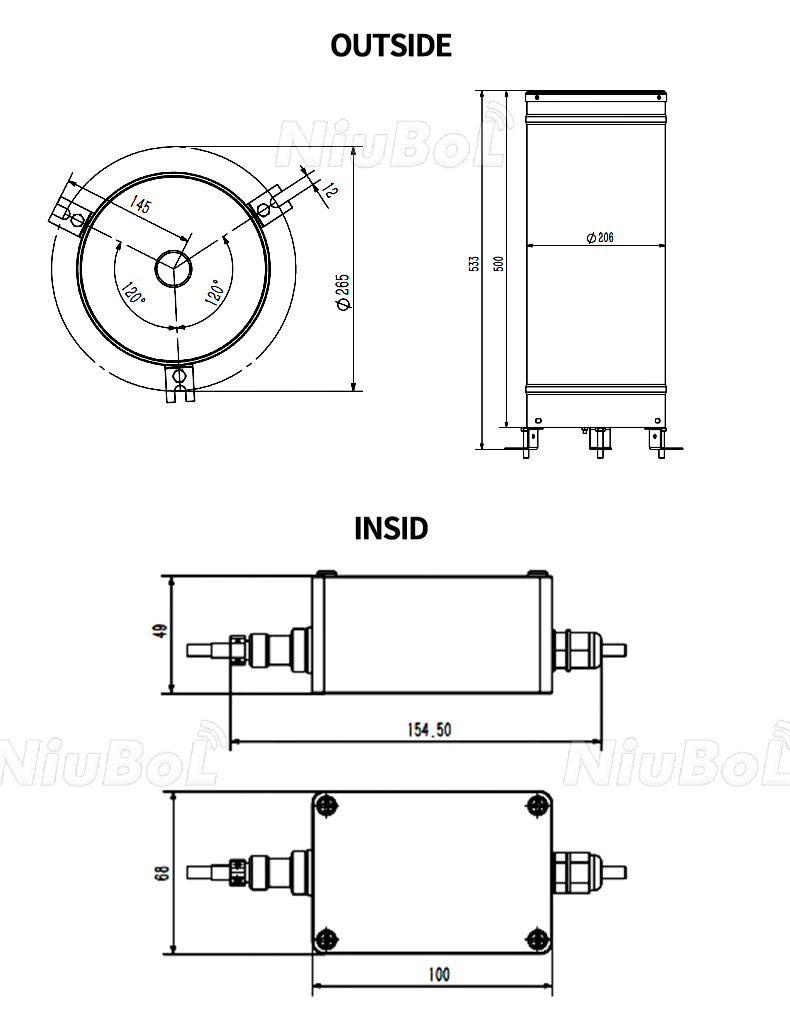

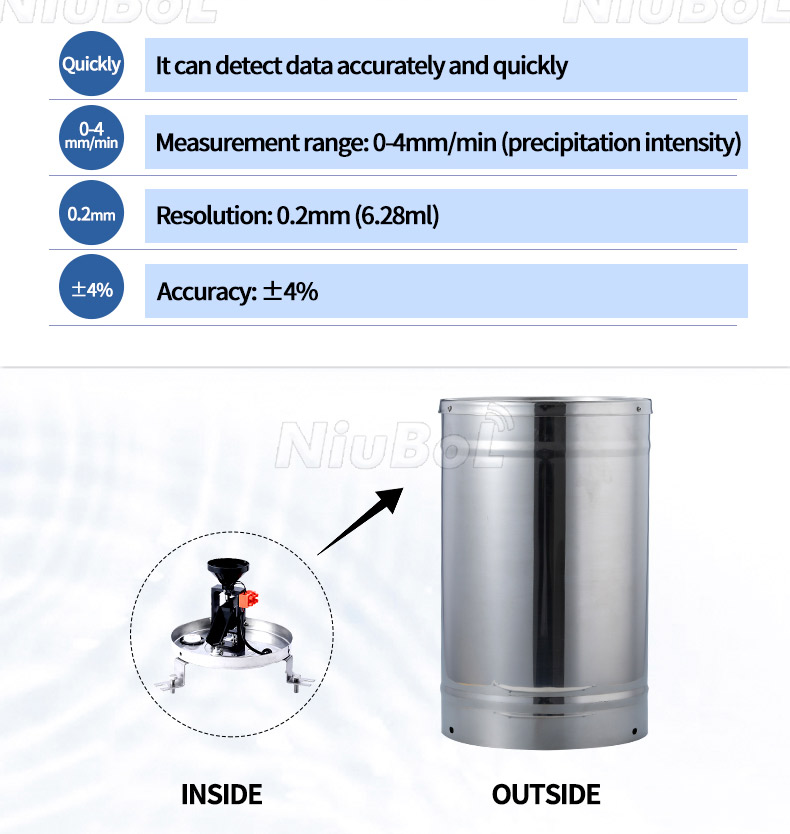

- Accurate measurement: water-bearing aperture accurate to Ф200 ± 0.6mm, to ensure the consistency of precipitation collection, the measurement range covers 0-4mm/min, suitable for a variety of precipitation intensity of accurate monitoring.

- High resolution and accuracy: the resolution reaches 0.2mm, ensuring that every precipitation can be accurately recorded, indoor static test, 2mm/min rain intensity accuracy ± 4%, providing reliable data support.

- Flexible power supply and output: support DC 5V or DC 12V-24V power supply, adapt to the needs of different installation environments. Various outputs, including switching signals, voltage signals (0~2.5V, 0~5V) and RS485 digital communication, are easy to be integrated into various monitoring systems.

- Durable design: Operating temperature range of 0~50℃ and wide storage temperature of -40℃~80℃ ensure stable operation under extreme environment.

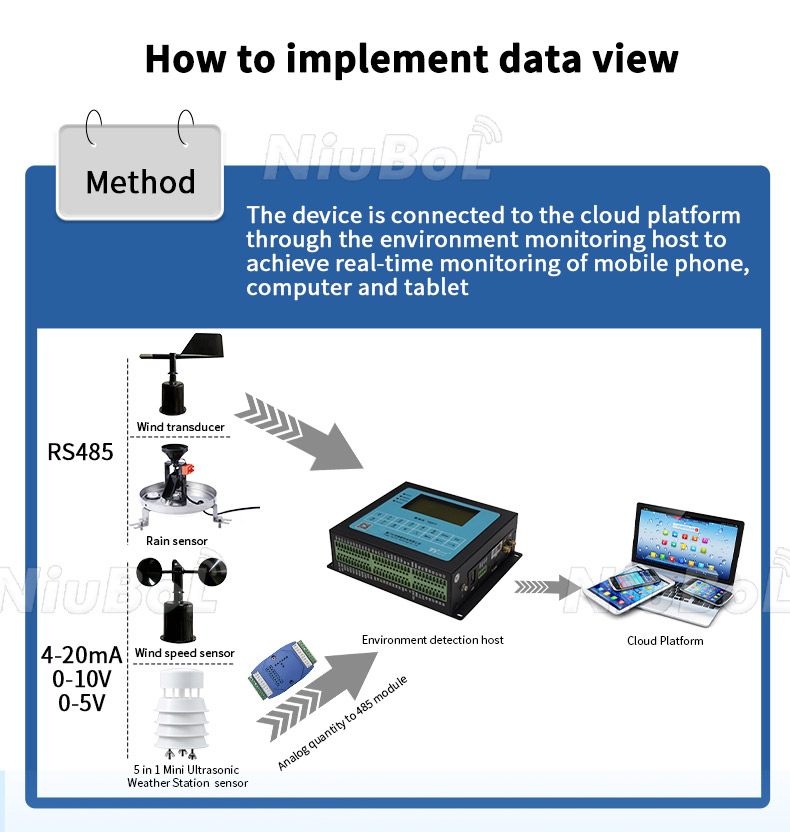

- Convenient Installation and Communication: The standard 5 metre instrument cable length meets most on-site installation requirements, and the RS485 interface supports remote data transmission, simplifying wiring and maintenance.

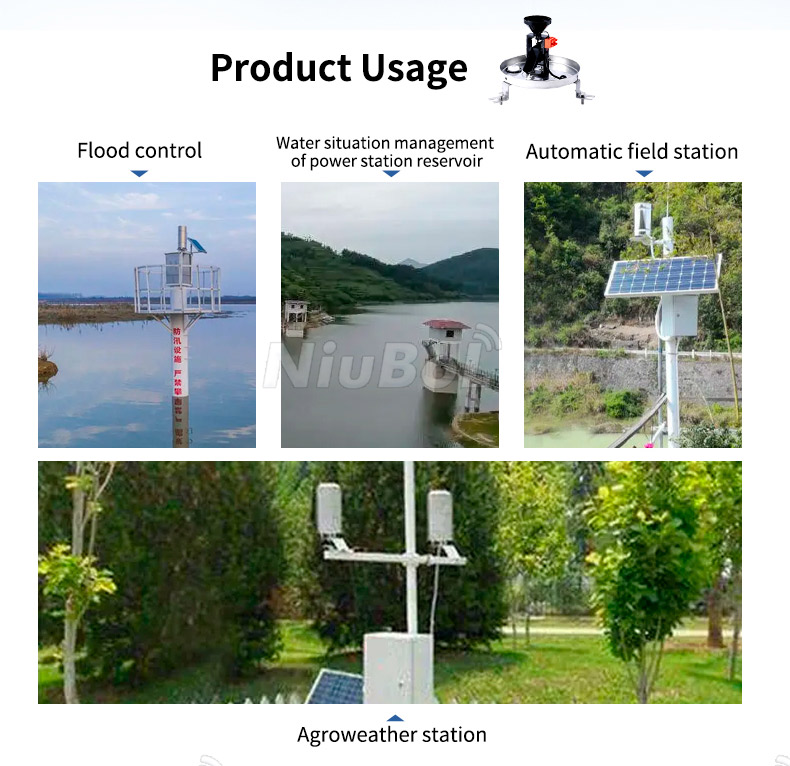

Industrial Rain Gauge Application Scenario:

Meteorological station : for real-time monitoring and recording of precipitation, precipitation intensity and other meteorological data, for weather forecasting and meteorological research to provide an important basis.

Hydrological station: Used in hydrological automatic measuring and reporting system, real-time monitoring of precipitation and water level changes in rivers, lakes and other bodies of water, providing decision-making support for flood control and drought relief.

Agricultural and forestry sector: Used to monitor the precipitation of farmland and forest land, guide agricultural production and forestry management, and improve the growth efficiency of crops and forest trees.

National defence sector: used for meteorological monitoring of military bases and military facilities, providing meteorological guarantee for military operations and national defence construction.

Power station reservoir management: accurately grasp the amount of water entering the reservoir and optimise scheduling decisions.

Urban drainage system monitoring: early warning to reduce the risk of urban flooding.

Research and teaching: Provide accurate precipitation data to support environmental research and teaching practice.

Industrial Rain Gauge Purchase Notes:

Please select the appropriate power supply method and output form according to the actual demand.

Before purchasing, please make sure that the water diameter, measuring range and accuracy of the device meet your requirements.

We provide perfect after-sales service and technical support, if you have any questions or need help, please feel free to contact us.

 Why choose our industrial rain gauge?

- Professional quality: we are committed to providing you with the best rainfall measurement solutions.

- Stable and Reliable: It has been rigorously tested to ensure that it can work stably in various environments.

- Customer first: we provide comprehensive pre-sales consultation and after-sales technical support to ensure your satisfaction.

 Ordering Information

- Model No.: NBL-W-RS

- Packing list: rain gauge body, manual, certificate of conformity

Order now to provide accurate data support for your meteorological monitoring and hydrological management! If you have any questions, please feel free to contact us.

Tipping bucket Rain gauge sensor data sheet

NBL-W-RS-Rain-sensors-instruction-manual-V4.0.pdf

NBL-W-ARS-Tipping-bucket-rain-gauge-instruction-manual.pdf
