Best accurate rain gauge 0.1mm

Highly accurate 0.1mm tipping bucket rain gauge -- the professional choice for accurate precipitation monitoring.

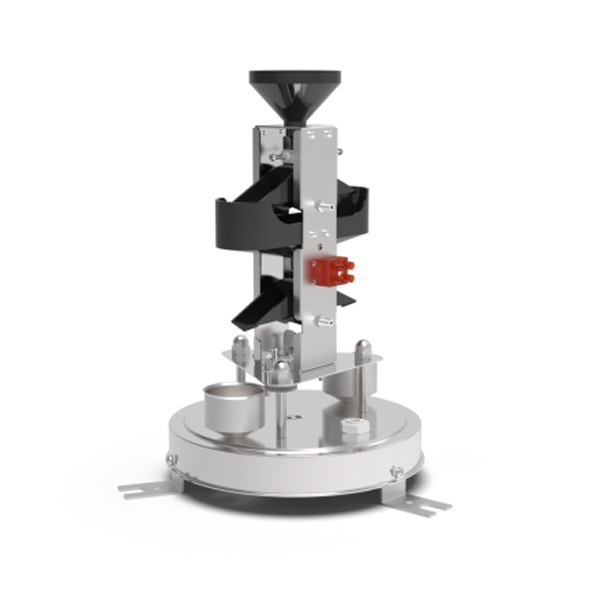

 0.1mm Hopper Rain Gauge Product Overview

We are proud to introduce a high accuracy 0.1mm tipping bucket rain gauge, designed for meteorology, hydrology, agriculture, forestry, national defense and other departments, for accurate measurement of liquid precipitation, precipitation intensity and precipitation start and end time. This product is strictly in accordance with SL61-2003, GB11831-89 and other national standards, applicable to a variety of hydrological automatic reporting system and field automatic reporting station, is the flood control, water supply scheduling, power stations and reservoirs, the ideal choice for water management.

 0.1mm tipping bucket rain gauge product advantages

- High accuracy: double hopper design, resolution up to 0.1mm (3.14ml), to ensure the accuracy of measurement data.

- Stability: stable and reliable performance, adapt to all kinds of bad weather.

- Easy to install: a variety of installation positions can be selected according to actual needs, quick leveling, reducing maintenance costs.

- Multi-function: with switch signal, voltage output, RS485 and other output forms, easy to interface with various data acquisition systems.

- High-strength structural design: made of high-quality materials, with high strength and corrosion resistance, can be in the harsh climate environment for long-term stable operation.

 0.1mm tipping bucket rain gauge technical parameters:

 0.1mm tipping bucket rain gauge application scenarios

- Meteorological monitoring: provide accurate rainfall data to help weather forecasting and climate research.

- Hydrological monitoring: monitoring precipitation and precipitation intensity, providing data support for water resource management.

- Agricultural irrigation: Optimize the irrigation plan and improve the efficiency of agricultural water use.

- Environmental protection: Monitor the impact of precipitation on the environment and provide scientific basis for environmental protection.

- Urban drainage: preventing urban flooding.

- Reservoir management: Evaluate reservoir storage and release strategies.

- Defense: Ensure the smooth running of military activities.

 Tipping bucket rain gauge installation instructions

1. Choose a suitable installation location: e.g. ground, large cylinder, iron post flange or roof.

2. Adjust the sensor to a horizontal position: and fix it.

3. Assemble and fix the sensor according to the instructions.

4. Fill with water to test: make sure the instrument works properly.

 Tipping bucket rain gauge connection

- Switching Signal Output: Generate a switching signal through the reed switch to connect to the data acquisition device.

- Voltage Output: Output a voltage signal (0~2.5V or 0~5V) proportional to the amount of precipitation, connect to the analog input of the data acquisition device.

- RS485 Output: Use RS485 communication cable to connect to the data acquisition device and configure the communication parameters to match the settings of the rain gauge.

- Other connection methods: such as current output 4-20mA, connect the steps similar to the above voltage or current output devices.

 Caution

- Ensure that all devices are properly grounded to minimize interference.

- Use appropriate cables and connectors to ensure signal stability and immunity to interference.

- Follow all equipment operating manuals and safety guidelines to prevent equipment damage or data loss.

Why choose us?

As an accurate rain gauge, our 0.1mm tipping bucket rain gauge has earned widespread trust from professionals due to its unrivaled performance and reliability. Not only does the gauge capture even the smallest fluctuations in precipitation, it also maintains excellent performance in extreme environments, ensuring absolutely reliable and accurate data. Whether you are engaged in scientific research or daily environmental management, it provides accurate data support, making it the ideal tool for your precipitation measurements.

Where to buy and enquire

If you would like to learn more about the outstanding performance of this high precision 0.1mm tipping bucket rain sensor or to make a purchase, please visit our official website or contact our customer service team directly. We are committed to providing you with the best quality products and services and look forward to your visit! Act now and start your new chapter of precipitation monitoring!

0.1mm Double tipping bucket rain sensor Datasheet

NBL-W-DRS-Double-Tipping-Bucket-Rain-Sensor-Instruction-Manual.pdf
