Anemometer Sensor Output 0-5V

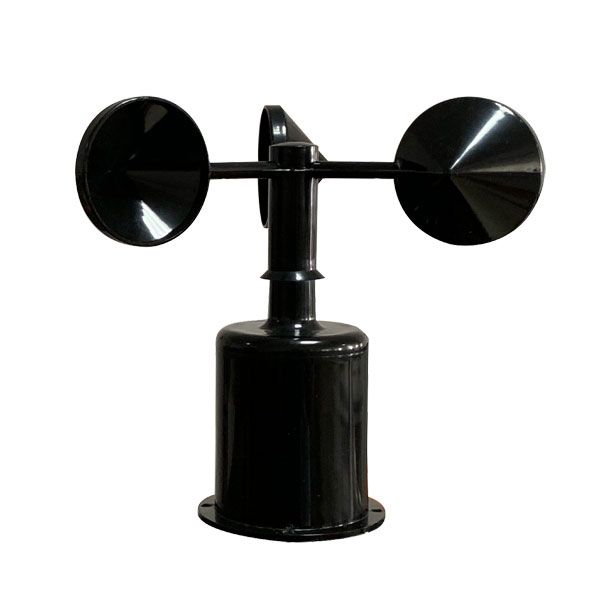

 Anemometer Sensor Output 0-5V Product Overview

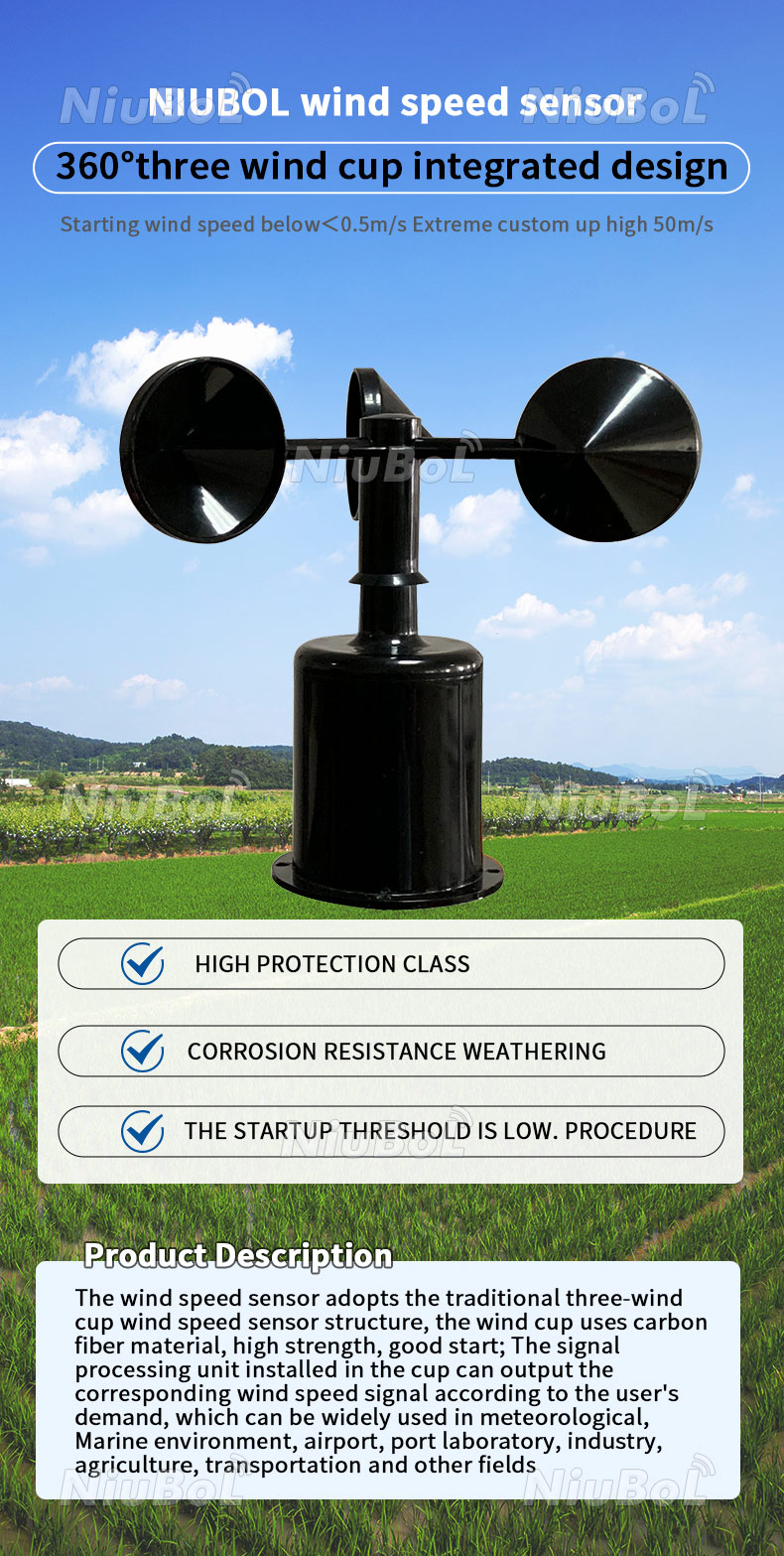

Our wind speed sensors feature a traditional three-cup construction with a high-strength carbon fiber cup for excellent weathering and start-up performance. The sensor provides a simple and widely used method of transmitting analog signals over long distances with minimal signal attenuation via a 0-5V voltage signal output.

The wind cup assembly is made of selected carbon fiber material, which is not only strong and lightweight, but also has an extremely low start-up wind speed, ensuring a quick response in the weakest winds, making it suitable for meteorological research, ocean observation, environmental monitoring, aviation and navigation, laboratory research, industrial and agricultural production, and various industrial automation applications.

 Anemometer Sensor Features

1. High-precision Measurement: Built-in high-performance sensor ensures the accuracy of wind speed measurement, with an accuracy of ±(0.3+0.03V)m/s (V: wind speed), covering a wide range from light to strong winds.

2. Wide measurement range: wind speed measurement range is optional, from 0 to 30m/s or 0 to 70m/s, to meet the needs of wind speed monitoring in different scenarios.

3. High resolution: with a resolution of 0.1m/s, subtle wind speed changes can be clearly captured.

4. Low start-up wind speed: start-up wind speed ≤ 0.5m/s, even the breeze can be accurately perceived.

5. Flexible power supply: support DC 5V, DC 12V-24V and other power supply modes, adapt to different installation environments.

6. Diversified Output Forms: Provides pulse signal, 4-20mA current, 0-5V voltage, 0-2.5V voltage and RS485, etc., which is convenient for seamless connection with various data acquisition systems.

7. Strong durability: Carbon fiber material wind cup, anti-corrosion, wear-resistant, to ensure long-term stable operation.

8. Environmental adaptability: strong weather resistance, can work stably under extreme weather conditions, ensuring the continuity and reliability of long-term monitoring.

9. Simple Installation and Maintenance: Standardized installation interface simplifies the on-site installation process, low maintenance requirements, and reduces long-term use costs.

10. Multi-field application: applicable to meteorology, ocean, environment, airport, port, laboratory, industry and agriculture, and transportation.

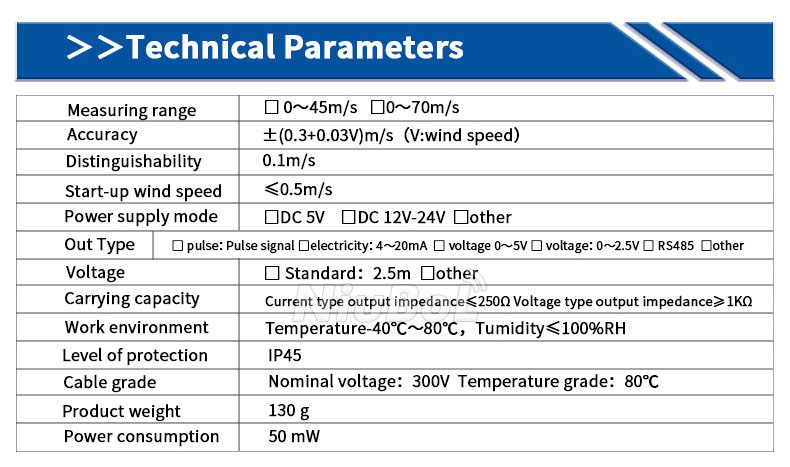

Anemometer Sensor Technical Parameters

Measuring range: 0～45m/s or 0～70m/s (optional)

Accuracy: ±(0.3+0.03V)m/s

Resolution: 0.1m/s

Starting wind speed: ≤0.5m/s

Power supply: DC 5V, DC 12V-24V, others (customized according to requirements)

Output form: pulse signal, 4～20mA current, 0～5V voltage, 0～2.5V voltage, RS485

 Anemometer Sensor Application Scenarios:

1. Weather monitoring and forecasting:

Used to collect meteorological data to support weather forecasting and climate research, real-time monitoring of wind speed changes, providing accurate data support for weather forecasting.

2. Marine Engineering and Research:

Monitor the wind speed and direction at sea to ensure the safety of ships and offshore platforms.

Installed on offshore platforms or ships to study the impact of sea wind speed on the climate, monitor the ocean wind speed, help marine scientific research and navigation safety.

3. Environmental monitoring and protection:

Evaluate air quality, monitor the diffusion of pollutants, monitor the impact of wind speed on air quality, and assist in environmental protection decision-making.

It is used for urban wind environment assessment to understand the diffusion of air pollutants.

4. Airport and harbor management:

Ensure flight and navigation safety, accurately measure runway wind speed, optimize cargo loading and unloading efficiency.

Monitoring the wind speed in port areas to optimize the operation plan and ensure the safety of personnel and equipment.

5. Laboratory and Research:

Provide accurate wind speed and direction data for scientific research, support fluid dynamics, aerodynamics and other research.

An important tool in laboratory research to ensure the accuracy of experimental results.

6. Industrial and Agricultural Applications:

Monitor wind speed and direction in industrial areas and farmland to optimize operating conditions.

Optimize the use of resources and improve production efficiency in the fields of farmland irrigation, greenhouse ventilation and wind power generation.

Assist precision agriculture and adjust spraying operations according to wind speed.

7. Traffic management and monitoring:

Installed on highways, bridges, tunnels and other major traffic routes to monitor changes in wind speed, prevent traffic accidents and prevent the impact of natural disasters.

 Conclusion

NiuBoL wind speed sensor uses carbon fiber wind cup and precision signal processing technology to ensure high accuracy and reliable measurement performance. Its 0-5V output format makes it easy to be integrated into all kinds of monitoring systems, and it is suitable for many fields such as meteorology, marine, environment, airport, port, laboratory, industry and agriculture, and transportation. Each product is rigorously tested, and professional technical support and customization services are provided to ensure that your application needs are perfectly met. By choosing NiuBoL, you are choosing an industry-leading wind speed monitoring solution that provides solid data support for your projects. Start your journey to accurate wind speed monitoring by purchasing NiuBoL now!

Wind Speed Sensor Datasheet

NBL-W-SS-Wind-Speed-Sensors-Instruction-Manual.pdf
