Air Temperature and Humidity Sensors

I. Introduction to Air Temperature and Humidity Sensors

An air temperature and humidity sensor is a device designed to sense and measure the temperature and humidity of the air. It utilizes specific sensitive and conversion elements to transform temperature and humidity information into electrical signals, enabling real-time monitoring and control of environmental conditions.

II. Working Principles of Air Temperature and Humidity Sensors

1. Temperature Measurement: Temperature sensors typically operate based on principles such as thermoelectric effects, thermal resistance, or thermal capacitance. For example, platinum resistance temperature sensors use the characteristic of platinum resistance changing with temperature to measure it.

2. Humidity Measurement: Humidity sensors often employ components like humidity-sensitive resistors or capacitors. Humidity-sensitive resistors measure humidity by detecting changes in ionic conductivity due to moisture absorption by hygroscopic salts. Humidity-sensitive capacitors measure humidity by changes in the dielectric constant of polymer film capacitors with humidity.

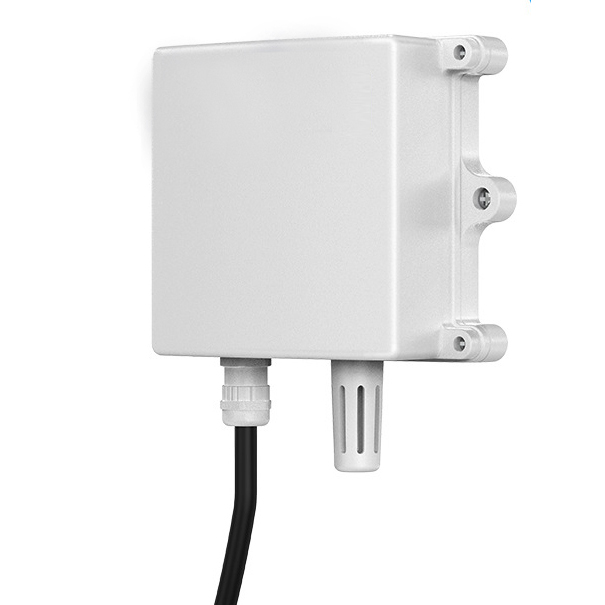

Wall-mounted temperature and humidity sensors

Air temperature and humidity sensors can be analog or digital. Analog sensors provide continuous output signals that vary with temperature and humidity changes, while digital sensors offer discrete numerical readings. Digital sensors commonly utilize wireless communication technologies such as 4G/5G、Bluetooth or Wi-Fi to transmit data to receivers or smartphone applications for monitoring and analysis. These sensors are crucial for maintaining comfortable and healthy indoor environments, as well as monitoring and predicting weather conditions.

III. Applications of Air Temperature and Humidity Sensors

Air temperature and humidity sensors find wide-ranging applications, including:

1. Smart Buildings and Home Automation:

   These sensors play a vital role in smart building and home automation systems. They continuously monitor indoor temperature and humidity, automatically adjusting HVAC systems, humidifiers, and other devices to maintain a comfortable living environment.

2. Agricultural Applications:

   In greenhouses and agricultural settings, these sensors monitor temperature and humidity to ensure optimal conditions for crop growth. Sensor data helps farmers or automated systems make decisions such as adjusting irrigation, ventilation systems, or heating/cooling equipment to maintain ideal growing environments.

3. Warehouse Management:

   Temperature and humidity control is critical for protecting stored goods in warehouses. Air temperature and humidity sensors monitor warehouse environments in real-time, preventing damage to goods from excessive temperature or humidity.

   Integrated with warehouse management systems, sensor data enables timely responses such as adjusting ventilation systems or taking other measures to maintain stable environmental conditions.

4. Meteorological Monitoring:

   In weather stations, air temperature and humidity sensors collect real-time data essential for weather forecasting and climate research. Combined with other meteorological parameters like wind speed, direction, and atmospheric pressure, these sensors provide more accurate weather forecasts and climate predictions.

5. Industrial Process Control:

   In various industrial processes such as pharmaceuticals, food processing, and semiconductor manufacturing, precise temperature and humidity control is crucial for product quality. Air temperature and humidity sensors monitor these parameters in real-time to ensure they fluctuate within specified ranges, thereby ensuring product quality and production efficiency.

6. Medical Environments:

   Used in hospitals and laboratories to maintain appropriate environmental conditions for patient comfort, equipment operation, and scientific experiments.

In summary, integrating air temperature and humidity sensors into various systems enables real-time monitoring and control of environmental conditions, improving quality of life, safeguarding goods, enhancing productivity, and advancing scientific research through precise environmental data. They contribute to better living conditions, increased productivity, and improved decision-making based on accurate environmental data.

Air Temperature Humidity Sensor data sheet

NBL-W-LBTH-Atmosphere-temperature-humidity-and-pressure-sensor-instruction-manual-V4.0.pdf

NBL-W-WHT-Wall-Mounted-Temperature-Humidity-Sensors-Instruction-Manual.pdf
