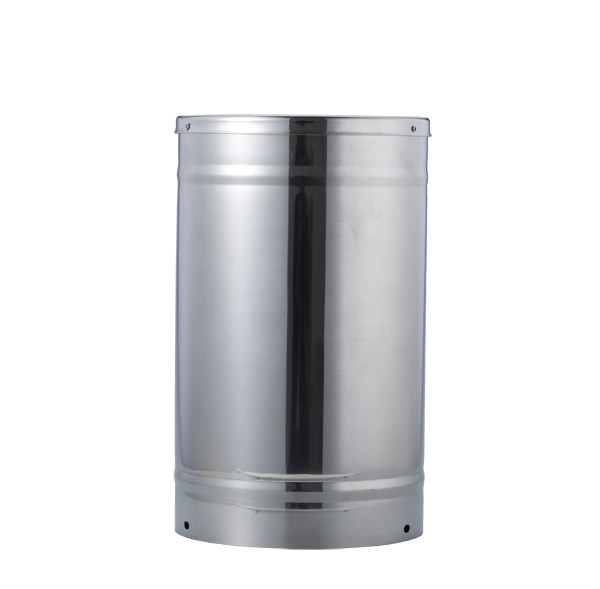

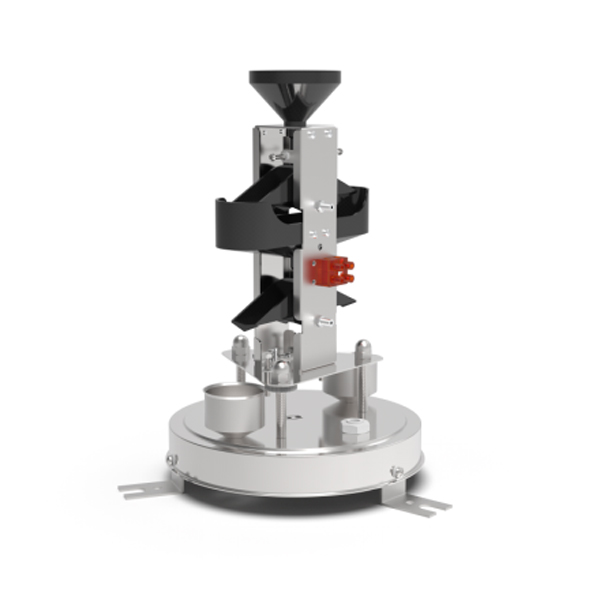

8 inch rain gauge sensor

Product Name：NiuBoL 8-inch high-precision rain gauge sensor

【Overview】NiuBoL 8-inch high-precision rain gauge sensor

In the broad field of meteorological monitoring and water resource management, NiuBoL 8-inch high-precision rain gauge sensor has become the preferred tool for meteorological stations (stations), hydrological stations, agricultural and forestry departments, and national defense, etc., due to its excellent measurement performance and wide application adaptability.

The 8-inch rain gauge sensor is a high-precision, high-stability rainfall monitoring device designed for meteorological stations (stations), hydrological stations, agriculture and forestry, national defense and other related departments. The sensor can accurately telemetry liquid precipitation, precipitation intensity, precipitation start and end time, applicable to hydrological automatic measurement system, automatic field station and other occasions, help flood control, water supply scheduling, power station reservoir water management and other important areas.

[8-inch rain gauge sensor core features]

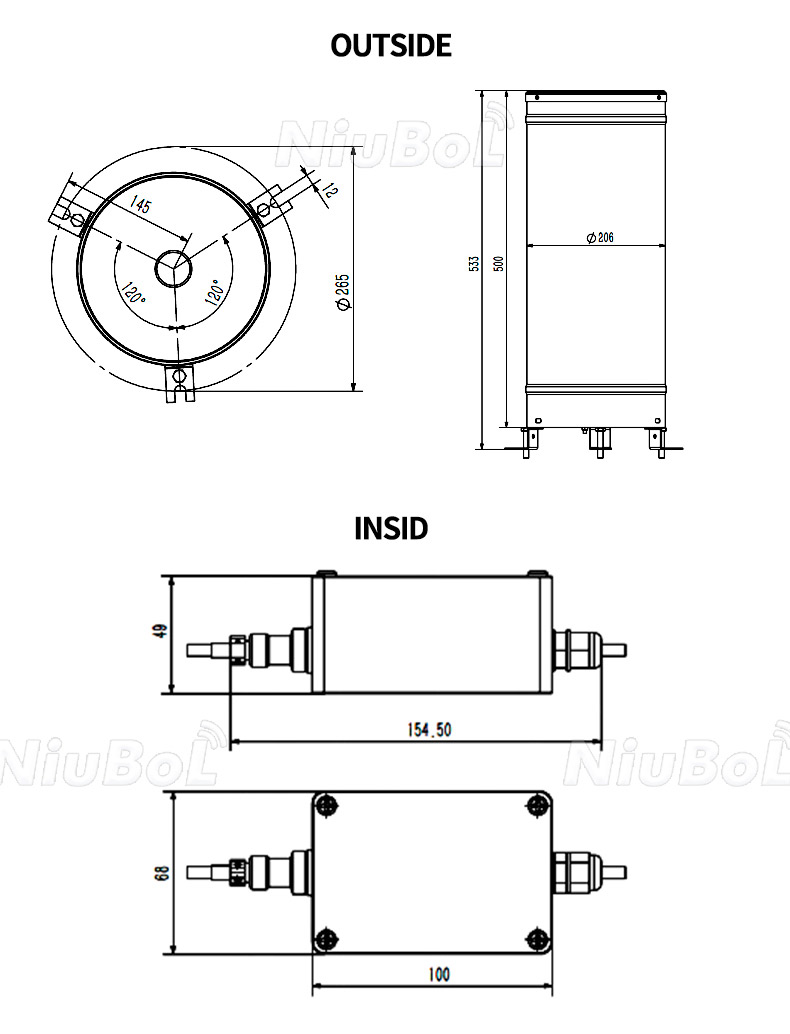

oversized water-bearing caliber: Ф200 ± 0.6mm water-bearing caliber ensures a comprehensive and accurate capture of rainfall, even under heavy rainfall conditions can maintain stable measurement performance.

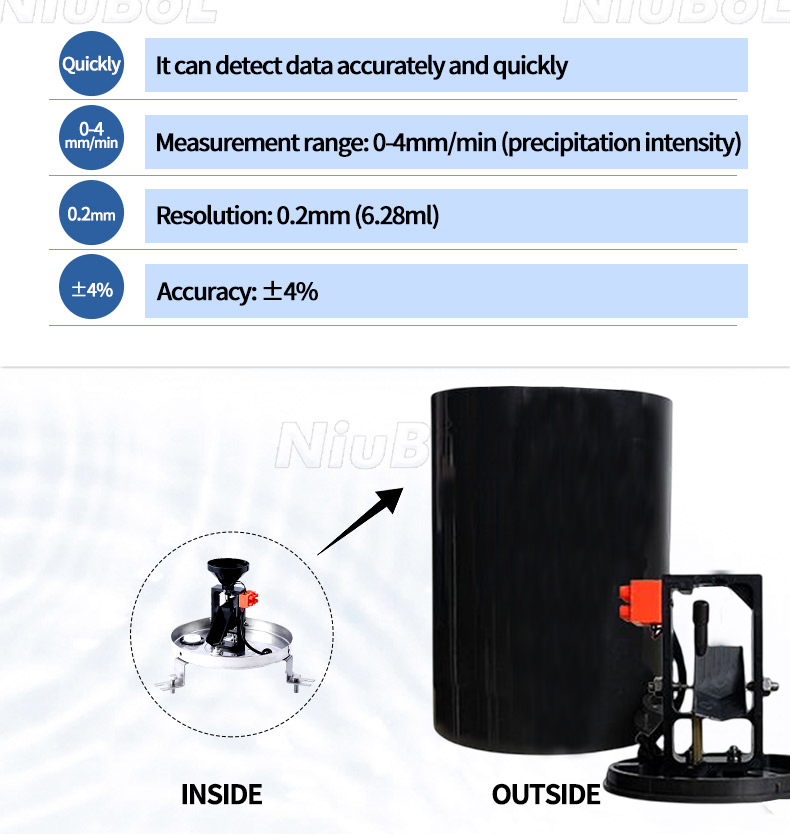

High Accuracy Measurement: The measurement range covers 0-4mm/min precipitation intensity with a resolution of up to 0.2mm (equivalent to 6.28ml of water), providing users with delicate and accurate precipitation data.

High Accuracy Guarantee: After rigorous indoor static testing (rain intensity of 2mm/min), it ensures that the measurement accuracy reaches ±4%, which meets all kinds of high-precision meteorological monitoring needs.

Flexible power supply options: support DC 5V, DC 12V-24V and other power supply modes, and other customized power supply solutions can be provided according to users' needs to ensure the stable operation of the sensor in different environments.

Diversified output forms: provide switch signal (reed switch on/off), voltage 0-2.5V, voltage 0-5V and RS485 and other output forms, which is convenient for users to integrate data and remote monitoring according to actual needs.

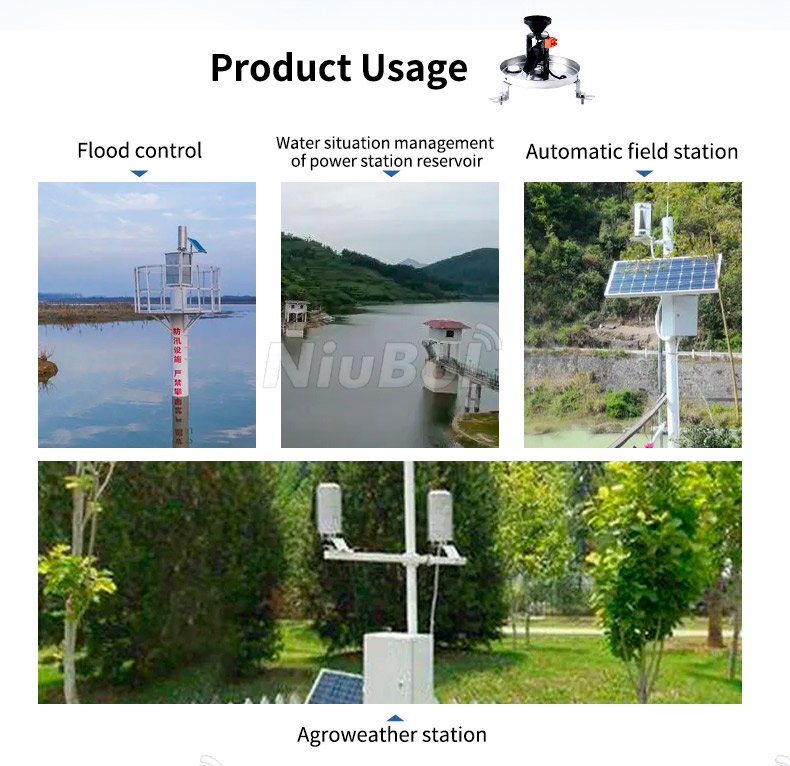

[8-inch rain gauge sensor application areas]

1. Meteorological monitoring: provide real-time precipitation, precipitation intensity and precipitation start and end time data for weather stations (stations) to support weather forecasting and climate research.

2. Water resource management: play an important role in flood control, water supply scheduling, power station reservoir water management and other fields, help the efficient use and protection of water resources.

3. Agricultural and forestry applications: guiding agricultural irrigation, crop growth monitoring and forestry disaster prevention and mitigation, improving the fine management of agricultural and forestry production.

4. National Defense Construction: Provide reliable data support for national defense meteorological monitoring and disaster early warning system to ensure national security and stability.

Company Profile

NiuBoL, as a leading brand in meteorological monitoring and sensor technology, has been committed to providing high-performance and highly reliable meteorological monitoring solutions for global users. We have a professional R&D team and perfect after-sales service system to ensure the excellent quality and user satisfaction of each product.

Brand Guarantee

As a well-known brand in the industry, NiuBoL always insists on technical innovation as the driving force and customer needs as the guidance to provide you with professional and efficient hydrological monitoring solutions. Choosing NiuBoL is choosing a trustworthy partner.

Contact Us

Inquire now to start your intelligent weather monitoring journey! Welcome to visit NiuBoL official website or consult us for more details. Let's work together to create a new chapter of weather monitoring and water resources management!

Tipping bucket rain gauge data sheet

NBL-W-RS-Tipping-bucket-rain-gauge-instruction-manual-0.5mm.pdf

NBL-W-ARS-Tipping-bucket-rain-gauge-instruction-manual.pdf

NBL-W-RS-Rain-sensors-instruction-manual-V4.0.pdf
