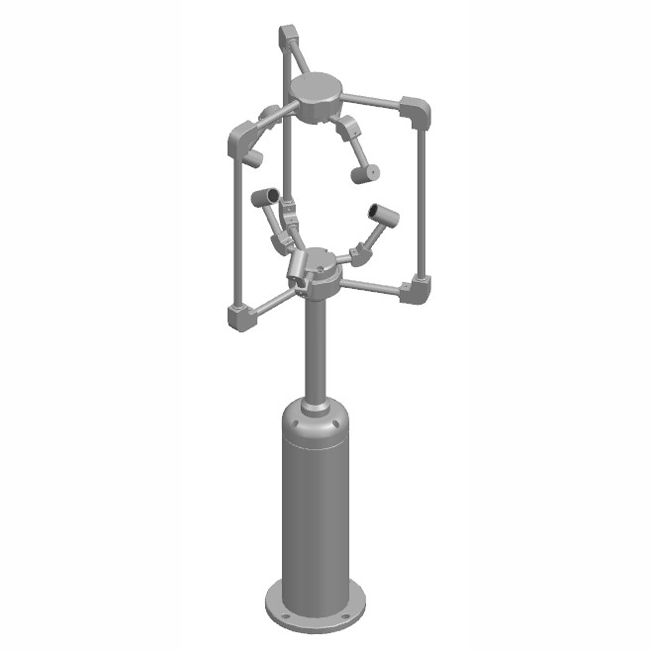

3D Ultrasonic wind speed and direction sensor

 3D Ultrasonic wind speed and direction sensor product overview:

3D Ultrasonic wind speed and direction sensor is an anemometer with advanced ultrasonic measurement technology, which achieves high accuracy and durability through its unique structural design and all-metal material. This 3D Ultrasonic wind speed and direction sensor can measure both horizontal and vertical wind direction and output X/Y/Z-axis wind speed, providing reliable data support for various weather monitoring fields.

Through its unique three-dimensional design, this 3D Ultrasonic wind speed and direction sensor device not only reduces wind resistance, but also ensures stable performance under extreme conditions, making it ideal for scientific research, industry and environmental monitoring.

3D Ultrasonic Anemometer technical parameters

Monitoring elements synthetic wind speed, horizontal wind direction, vertical wind direction, X/Y/Z axis vector wind speed

This anemometer is based on the principle that the propagation speed of ultrasonic waves in air is affected by wind speed. By precisely controlling the transmission and reception of the transducer, it measures the difference in propagation time between the ultrasonic wave upwind and against the wind, and then calculates the wind speed component in each direction. Since the change of ultrasonic propagation speed in the wind is proportional to the wind speed, the wind speed vectors in three-dimensional space can be accurately solved through the processing of complex algorithms, including the horizontal wind direction and vertical wind direction, which ensures the comprehensiveness and accuracy of the data.

 3D Ultrasonic wind speed and direction sensor core features:

- Ultrasonic technology: Utilizing three pairs of fixed-distance ultrasonic transducers, the wind speed components (U, V, W vectors) on the X, Y, and Z axes are calculated by accurately measuring the difference in propagation time of ultrasonic waves in different wind directions, thus realizing the accurate capture of wind speed and direction in all directions.

  - No moving parts design: all-metal construction, rugged and wear-free, no maintenance for long-term operation, ensuring long-term stability and reliability.

- Three-dimensional wind speed measurement: Provide both horizontal and vertical wind speed data, output X/Y/Z-axis wind speed, which is suitable for accurate analysis in complex environments and meets the needs of multi-dimensional meteorological research.

- High accuracy: adopts advanced ultrasonic measurement technology to ensure accurate and reliable measurement results.

- All-weather operation with excellent adaptability: Whether it is hot and cold, wind and rain or extreme weather, 3D Ultrasonic wind speed and direction sensor can maintain stable operation and provide continuous and reliable wind speed and direction data. Its excellent ability to adapt to the environment ensures the continuity of meteorological monitoring work and data accuracy, providing valuable real-time information to support decision makers.

3D Ultrasonic wind speed and direction sensor is widely used in the following applications

1. Urban environment monitoring: help city managers accurately grasp the air quality and wind speed and direction changes, providing scientific basis for urban planning and environmental protection.

2. Wind power generation: optimize the layout of wind farms, improve the efficiency of wind energy utilization, and reduce operation and maintenance costs.

3. Meteorological monitoring: improve the accuracy and timeliness of meteorological forecasts, providing strong protection for agricultural production, disaster prevention and mitigation.

4. Bridges and tunnels: monitoring structural wind loads to ensure traffic safety and facility stability.

5. Sailing ships: precise navigation, ensure navigation safety and improve navigation efficiency.

6. Aviation airport: provide key meteorological data for airplane landing and taking off to ensure aviation safety.

Choosing our 3D Ultrasonic wind speed and direction sensor means you will have a highly reliable, accurate and adaptable weather monitoring tool. It not only improves data accuracy, but also simplifies maintenance, making it a must-have for modern meteorology, environmental science and many industrial applications.

3D Ultrasonic Anemometer Datasheet

3D Ultrasonic Anemometer Datasheet.pdf
