Soil moisture sensor rs485

Soil moisture sensor is a device used to measure moisture content in soil, while RS485 is a communication protocol used to connect the sensor to a computer or other data acquisition device.

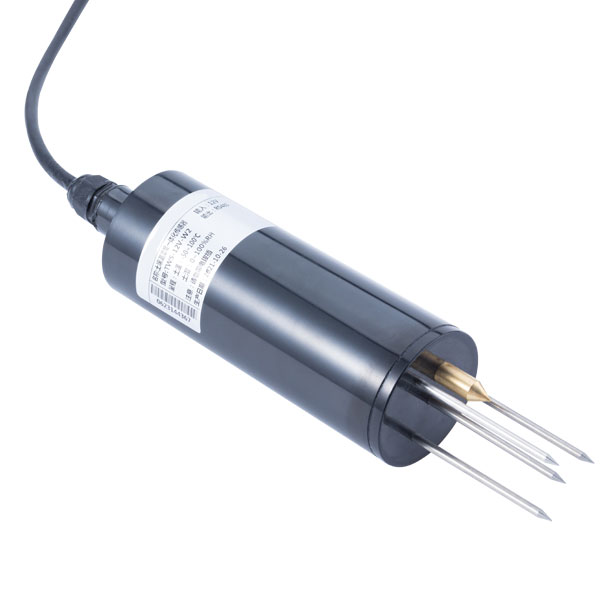

A soil moisture sensor usually consists of a sensor probe and a signal processing circuit. The probe is inserted into the soil and the moisture content of the soil is deduced by measuring the dielectric constant of the soil. The signal processing circuit is responsible for converting the probe's measurements into electrical signals and transmitting them to a computer or other data acquisition device via the RS485 communication protocol.

In soil moisture sensors, the RS485 communication protocol is used to transmit measurements from the sensor probe to a computer or other data acquisition device. By using the RS485 communication protocol, simultaneous monitoring and control of multiple sensors can be achieved, improving the accuracy and efficiency of data collection.

RS485 communication protocol is a differential serial communication protocol with the advantages of strong anti-interference ability and long transmission distance. In RS485 communication, two wires are responsible for transmitting signals, TXD and RXD, when sending data, TXD sends positive level signals, while RXD sends negative level signals, indicating a logical "0"; conversely, when sending "1 On the contrary, when sending "1", TXD line sends negative level signal and RXD line sends positive level signal. When receiving data, if the level between the two lines is different, it means that the transmitted data is "0" or "1".

In terms of operating conditions, the soil moisture sensor has an operating temperature range of -40 to 85°C, an operating humidity range of 0 to 100% RH, a storage temperature range of -40 to 125°C, and a storage humidity range of <80% (no condensation).

In terms of application value, the soil moisture sensor is of great significance for soil moisture detection, agricultural irrigation and forestry protection. With soil moisture sensors, the moisture content in the soil can be monitored timely and accurately, guiding irrigation and agricultural operations to improve crop yields and water use efficiency. In addition, soil moisture sensors can also be used in scientific experiments and environmental monitoring and other fields, providing data support for environmental protection and ecological construction.

Soil moisture sensor functional characteristics, soil moisture sensor has high measurement accuracy, fast response speed, good interchangeability, good sealing, can be directly buried in the soil to use, less affected by corrosion, less affected by the soil quality, the application of a wide range of areas and other characteristics.

Summary: soil moisture sensors have a wide range of application value in many fields, the scope of application, soil moisture sensors are suitable for a variety of fields, including water-saving agricultural irrigation, greenhouses, flowers and vegetables, grass pastures, soil quick test, plant cultivation, scientific experiments, underground oil transmission, gas pipelines and other pipelines in the field of anticorrosion monitoring and so on.
