Iot soil moisture sensor

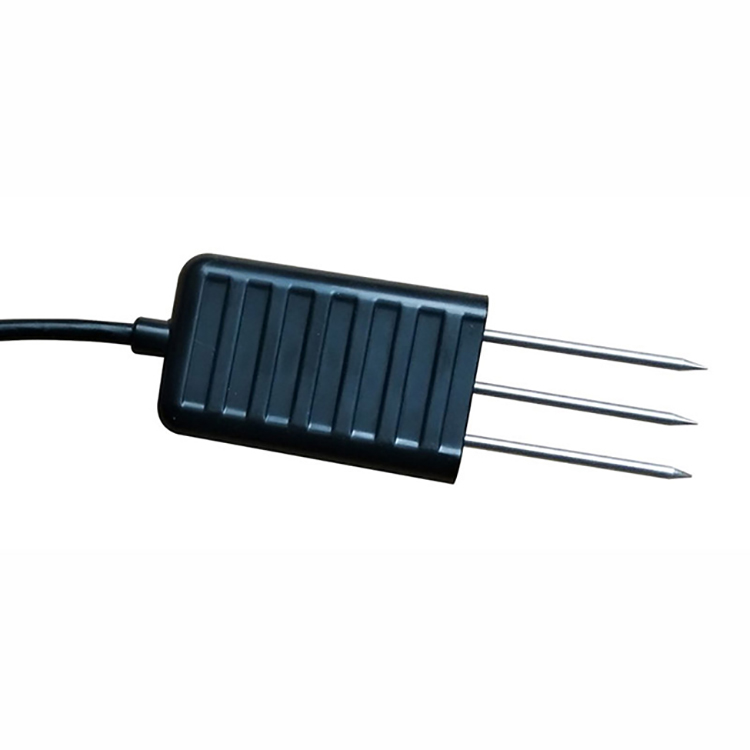

IoT Soil moisture sensor, also known as a soil humidity sensor, is a device used to measure soil moisture. This sensor usually consists of a stainless steel probe and a waterproof probe that can be used by burying it within the soil for a long period of time. IoT soil moisture sensor measures the moisture content of the soil and helps people to understand the moisture content of the soil. Used in conjunction with a data collector, it can be used as a tool for moisture spot monitoring or mobile measurement.

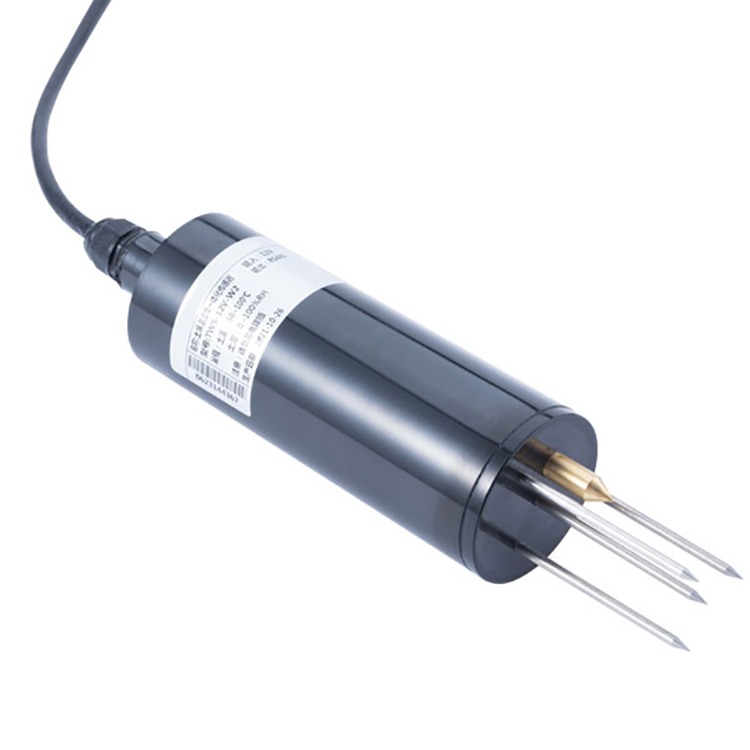

IoT Soil moisture sensors are generally encapsulated in a PVC housing with epoxy resin. There are also plug-in soil temperature and moisture sensors that are capable of measuring both soil temperature and moisture and have multiple probes in order to measure temperature and moisture in soil at different depths.

IoT Soil Moisture Sensor Working Principle

IoT Soil Moisture Sensors work on the basis of the electrical conductivity of the soil, i.e. if the soil contains more water, then the better its electrical conductivity. Therefore, by measuring the electrical conductivity of the soil, we can get a rough idea of the amount of water in the soil.

Conventional IoT soil moisture sensors usually consist of two metal electrodes that are inserted into the soil in order to measure the soil's electrical conductivity. When moisture is present between the electrodes, an electric current passes through the electrodes, creating a circuit. The resistance of this circuit is inversely proportional to the amount of moisture in the soil.

When the soil is dry, the resistance between the electrodes becomes greater and therefore the current decreases. Conversely, when the soil is wet, the resistance between the electrodes decreases and the current increases accordingly. The sensor receives this current signal and converts it into a readable value, thus providing a measurement of soil moisture.

Modern soil moisture sensors are often also equipped with a temperature sensor and a humidity sensor to more accurately measure the temperature and humidity of the soil. This data can be used to control the operation of an irrigation system, allowing the farmer or horticultural enthusiast to better manage the growth and development of plants.

IoT Soil Moisture Sensor Application Scenarios

IoT Soil Moisture Sensor has a wide range of applications in agriculture, horticulture and environmental monitoring. The following are some common application scenarios:

1. Agricultural irrigation: Soil moisture sensors can be used in farm irrigation systems to help farmers determine when to irrigate as well as the amount and frequency of irrigation. By monitoring soil moisture in real time, over- or under-irrigation can be avoided and crop yield and quality can be improved.

2. Horticultural management: In gardens, greenhouses or plant pots, soil moisture sensors can be used to monitor the moisture content of the soil around the plant's root system. This helps to determine when to water the plant and control the amount of watering to ensure that the plant is properly supplied with water to promote growth and flowering.

3. Soil research: Scientific researchers use soil moisture sensors to monitor moisture changes in different soil types and geographic locations. This is important for soil moisture distribution studies, irrigation optimization and ecosystem monitoring.

4. Forest management: In forest ecosystems, soil moisture sensors can be used to monitor changes in soil moisture to understand the moisture status of the forest ecosystem and changes in the ecosystem.

5. Environmental monitoring: soil moisture sensors can be used to monitor soil moisture in places such as urban parks, green spaces and nature reserves to assess the degree of soil drought, water utilization and the health of the ecosystem.

Role and value of Soil Moisture Sensor

The value of IoT Soil Moisture Sensor is mainly reflected in the following aspects:

1. Water management: IoT Soil Moisture Sensor can help farmers and gardeners to accurately measure soil moisture to avoid over- or under-irrigation problems. By monitoring soil moisture in real time, the amount and frequency of irrigation can be adjusted according to the actual demand, improving the utilization efficiency of water resources and reducing water waste.

2. Improve crop yield and quality: Proper soil moisture is necessary for the normal growth and development of crops. Soil moisture sensors can help determine the optimal time and amount of irrigation to ensure that the soil around the root system of crops is properly supplied with water, thus promoting plant growth and development, and improving yield and quality.

3. Saving energy costs: By using soil moisture sensors, soil moisture can be accurately measured and irrigation can be controlled based on actual needs. This avoids unnecessary irrigation and saves water consumption, while also reducing energy costs associated with irrigation, such as pump station operation and water supply system energy consumption.

4. Environmental protection: The rational use of soil moisture sensors can avoid soil erosion and water pollution caused by over-irrigation. Reducing unnecessary water utilization helps protect the environment and maintain ecological balance.

5. Scientific research and decision support: soil moisture sensors provide real-time data can be used for soil moisture distribution research and monitoring, to help scientists understand the pattern of change of soil moisture, predict the risk of natural disasters such as droughts or floods, and to provide a scientific basis for decision-making in agricultural production, water resource management and ecological environmental protection.

In summary, soil moisture sensors have an important role in water resource management, agricultural production, energy conservation and environmental protection and other aspects of value, help to improve crop yield and quality, optimize the use of water resources, reduce energy consumption, protect the ecological environment, and provide support for scientific research and decision-making.

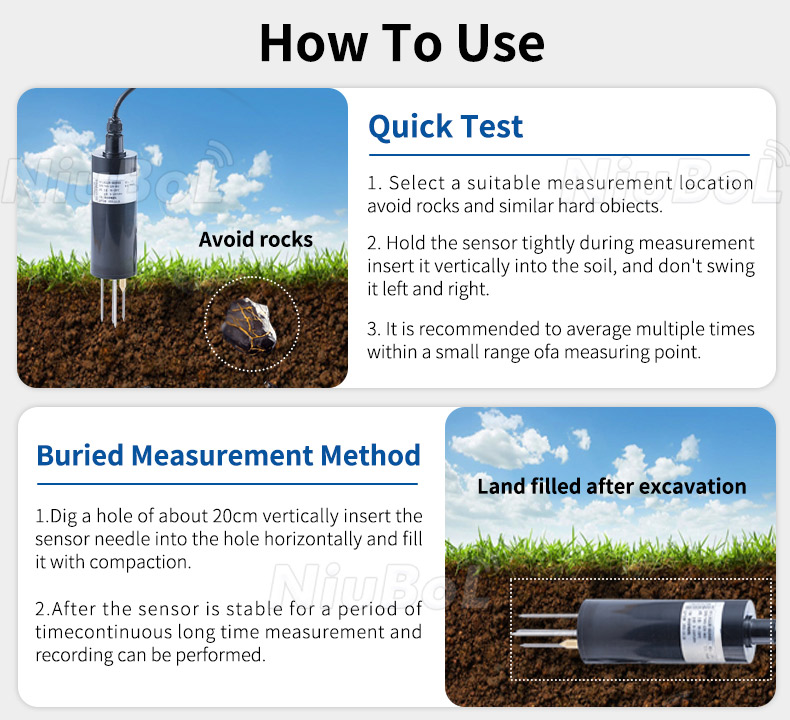

IoT Soil Moisture Sensor Installation Requirements and Precautions

Installation requirements and precautions for Soil Moisture Sensor are as follows:

1. Selection of installation location: When installing the Soil Moisture Sensor, a well-represented piece of land should be selected, and try to avoid installing it in a place where there are water sources and drainage facilities. It is also necessary to consider the distance between the sensor and the irrigation pipe, root system, etc. to ensure that the moisture content measured by the sensor is representative.

2. Control of installation depth: The installation depth of the soil moisture sensor is critical to the accuracy of the measurement results. Generally speaking, the appropriate installation depth is selected according to the growth of crops and the depth of the root system. Usually, the sensor is installed near the soil centerline at a depth of about 20-30 cm.

3. Selection of installation method: There are various installation methods for soil moisture sensors, including insertion type, buried type and placement type. Different installation methods are suitable for different soil types and practical needs. Before installation, you should read the instruction manual carefully and choose the suitable installation method.

4. Preventing contamination and damage: When installing soil moisture sensors, care should be taken to prevent the sensors from various forms of contamination and damage. For example, in the plug-in sensor, the plug and cable and other parts should be buried in the soil to avoid erosion by wind and rain. In the course of use, the surface of the sensor should be cleaned in time and the sensor should be prevented from being chewed by animals or man-made damage.

5. Maintenance: Regularly check the operating status of the soil moisture sensor, if any abnormalities should be dealt with in a timely manner. Also pay attention to the protection and maintenance of the sensor cable to avoid cable aging due to long-term exposure to the sun.

6. Data Acquisition and Processing: After soil moisture measurement, it is necessary to collect data for statistics and analysis. When carrying out data processing, attention should be paid to selecting the appropriate data processing method according to the actual needs, in order to better understand the changing law of soil moisture content.

In summary, the installation of soil moisture sensors need to pay attention to a number of aspects, including the installation location, installation depth, installation method, anti-pollution and damage, maintenance, and data acquisition and processing. Only under the premise of following the correct installation methods and precautions can accurate and reliable soil moisture measurement results be obtained.
