Ultrasonic anemometer Used in environmental monitoring stations, weather stations, weather forecasting

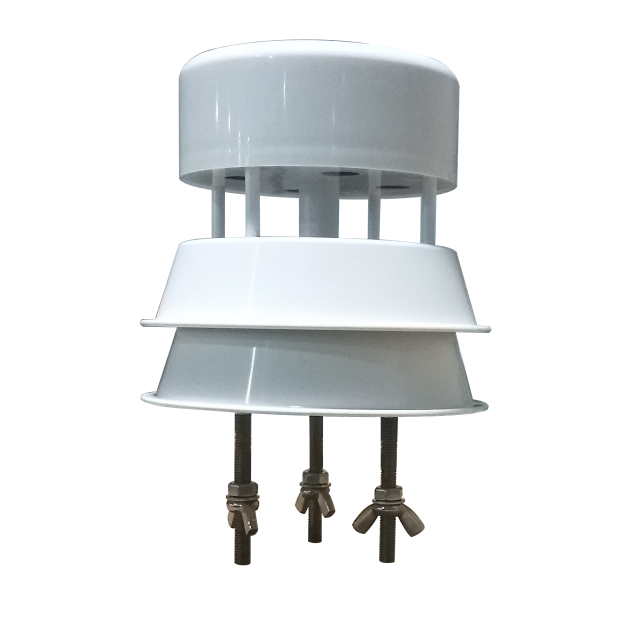

Product introduction of small ultrasonic anemometer

 The ultrasonic anemometer is a mini fully digital sensor, highly integrated ultrasonic wind speed and wind direction sensor, small size, high integration, light weight, strong and durable;

Ultrasonic anemometer Product Introduction and Value：

The ultrasonic anemometer is an advanced sensor device used to measure wind speed and direction. It utilizes ultrasonic wave technology to continuously monitor the movement of air and provide accurate measurements of wind speed and direction. Here is a product introduction and the value it offers:

ultrasonic anemometer Working Principle:

The ultrasonic wind speed and direction sensor employ a non-contact measurement principle. It emits and receives ultrasonic waves to detect the speed and direction of the wind. The sensor typically consists of a transmitter and a receiver. The transmitter emits ultrasonic waves, while the receiver detects the reflected waves and calculates the wind speed and direction. This sensor is characterized by high precision, fast response, and stable reliability.

This product does not have any moving parts, and does not require on-site maintenance and calibration. It can accurately and quickly detect the wind speed and wind direction values in the on-site environment. The high-strength structure design can accurately detect in harsh climate environments, and can be widely used in agriculture, meteorology, environment , environmental protection, transportation, smart city, industrial testing and other fields.

ultrasonic anemometer technical parameters:

Wind speed measurement range: 0～40m/s

Wind direction measurement range: 0～360°

Wind speed measurement accuracy:

Low wind speed: ±0.5m/s Low wind speed: ±3°

High wind speed: ±1m/s High wind speed: ±5°

Wind speed measurement resolution: 0.01m/s;

Wind direction measurement resolution: 1°

Power supply: DC12V

Communication output: RS485

Communication baud rate: 9600

Communication protocol: MODBUS communication protocol

Shell material: engineering plastic

Operating temperature: -40°C-70°C

Storage temperature: -50°C – 80°C

Working humidity: 0-100%

Appearance size/weight: φ90 X 140mm/0.6Kg

Protection class: IP65

Overall power consumption: 0.2W

Ultrasonic anemometer is mainly used in the following fields:

Meteorological observation: commonly used in meteorological fields such as weather stations, weather forecasting, research, etc., to measure and monitor wind speed in real time.

Environmental monitoring: used in urban air quality monitoring, environmental monitoring stations, etc., real-time monitoring and analysis of wind speed.

Wind power generation: used in wind power farms, monitoring and controlling the operation of wind turbines.

Architecture field: can measure the ventilation of buildings and provide basis for architectural design.

Environmental protection field: it can measure the diffusion of air pollutants and provide data support for environmental protection.

Marine field: can measure the sea surface wind and wave conditions, to provide data support for marine scientific research.

In conclusion, ultrasonic anemometer is a high-precision, non-contact wind speed measurement equipment, which can be widely used in wind speed measurement, wind energy assessment, weather forecast, building airflow simulation, etc., and has a wide range of application prospects.
