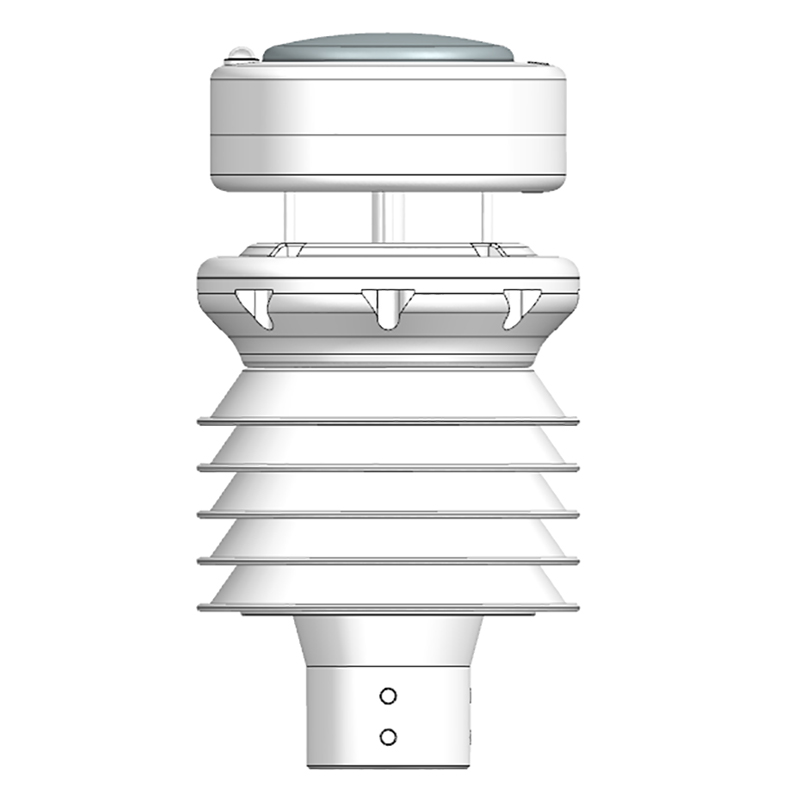

Ultrasonic Weather Station Sensor for Wind speed,Wind direction,Temperature, humidity, pressure,Illumination

The 10 micro meteorological multi-parameter sensor is a fully digital detection, high-precision sensor, by the ultrasonic principle wind speed and direction sensor, high-precision digital temperature, humidity, air pressure sensor, piezoelectric rainfall sensor integration, can accurately and quickly detect the wind speed, wind direction, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, built-in signal processing unit can output the corresponding signal according to user needs, optional PM2.5, PM10, noise, illumination/radiation sensors are available as options.

The high-strength structure is designed to work reliably in harsh climatic environments and has a compact, highly integrated, lightweight and durable appearance. It can be widely used in the fields of meteorology, environment, airport, port, laboratory, industry and agriculture and transportation.

The piezoelectric rain sensor uses piezoelectric ceramic kinetic rain monitoring to identify raindrops according to the strength of their falling strikes, from light rain to pounding rain, and to measure individual raindrops and thus calculate the rainfall.

The raindrops are subjected to the weight of the raindrops and air resistance during the descent and reach the ground at a constant velocity. According to P=mv, the measurement of the impact can be used to find the weight of the raindrops, which in turn gives the amount of continuous rainfall.

Outdoor 10 elements(10 in 1) Ultrasonic Weather Station Sensor for Wind speed,Wind direction,Temperature, humidity, pressure,Illumination,Rainfall,PM2.5, PM10, noise, illumination/radiation sensors are available as options.

Power supply voltage:DC12V;  Signal output: RS485;

Communication protocol: Standard MODBUS protocol

Baud rate:9600

Average power consumption: 0.3W

Operating temperature:-40-80℃;  Working humidity:0-95%RH;

Standard cable length:2.5m

Material: ABS

Protection class:IP65

Range ----Accuracy ----Resolution

Wind speed: 0 to 40m/s;  ±0.5+3%FS;  0.01m/s;

Wind direction: 0 to 359°;  ±3°;   1°;

Temperature:-40 to 80°C;   ±0.5°C;   0.1°C

Humidity: 0～100%RH;   ±5%RH;   0.1%RH;

Barometric pressure :10～1100hPa;   ±1.5hPa;   0.1hPa;

PM2.5: 0~1000ug/m3;   ±20%;   1ug/m3;

PM10: 0~2000ug/m3;   ±20%;   1ug/m3;

Noise: 30 to 130dB;   ±5dB;   0.1dB

Illumination: 0～200000Lux;  ±10%;  10Lux

Rainfall: 0～8mm/min;   ±10% ;  0.01mm

Radiation: 0～1500W/m2;   ±10% ;  1W/m2
