Tipping bucket stainless steel rainfall sensor Rain Gauge Sensor for meteorology monitor RS485/12v-24v

Rain sensor (Rain Gauge) is suitable for meteorological stations  (stations), hydrological stations, agriculture, forestry, national defense and  other relevant departments, used for remote measurement of liquid  precipitation, precipitation intensity, precipitation start and end time  It can be used for automatic hydrological monitoring and reporting  systems and automatic fifield monitoring and reporting stations for the  purposes of flflood control, water supply scheduling, power station and  reservoir water management, etc.

The rainfall sensor is applicable to relevant departments such as meteorological platforms (stations), hydrological stations, agriculture and forestry, national defense and other relevant departments used to remote liquid precipitation, precipitation intensity, and precipitation start and end. It is used for flood control, water supply scheduling, and the water supply management of the reservoir of the power station as the purpose of the hydrological automatic reporting system and the automatic field measurement station to measure the sensor for precipitation.

Equipment such as rainfall sensors and automatic meteorological stations are used to monitor the rainfall in the city. In the process of heavy rain, the rainfall can be fed back to the relevant personnel in time. At the same time, according to the emergency response plan of the heavy rain, do a good job of various tasks in a timely manner to reduce the impact of the rainstorm.

The rainfall flows into the tent through a receiver. When the overflow flows into a certain amount of rainwater, the over turns over, the rainwater in the bucket will be picked up again. Each flip action of the tougard is converted into a pulse signal through the cooler ( 1 pulse = 0.2mm precipitation) transmission to the collection system.

This instrument is suitable for national basic rain stations, encrypted automatic weather (rainfall stations), and remote test stations under the conditions of various places and different climate and environmental conditions to complete the automatic measurement and data collection of the precipitation process.

The tipping bucket rain gauge is a sensor used to monitor rainfall in smart agriculture.

It has the advantages of accurate time, automatic data recording and easy data collection and processing.

The composition of The tipping bucket rain gauge：

Hopper type rain gauge is composed of rain gauge shell, rain collector, funnel, hopper support, hopper, bearing screw, water outlet bin, sealing joint, reed pipe, horizontal bubble, adjusting support plate, control box, leveling device, terminal, leg support, rain gauge base, etc.. Among them, the rain gauge base is installed with tipping bucket shaft, round horizontal bubble, reed pipe holder and signal output terminal.

The principle of tipping bucket rain gauge

The working principle of tipping bucket rain gauge is: the rainwater enters the water carrier from the uppermost rainfall mouth, falls into the water diversion funnel, flows into the tipping bucket through the funnel mouth, when the amount of water reaches a certain height (such as 0.1mm), the tipping bucket loses balance and overturns; the water will be poured out, and as the rainfall continues, the tipping bucket will be turned around, and the contact switch will turn the tipping bucket turning times into electrical signals, which will be sent to the recorder, and the cumulative counter and self-recording clock will The rainfall information is read out on the accumulation counter and the self-registering clock, and the rainfall process can be measured in this way.

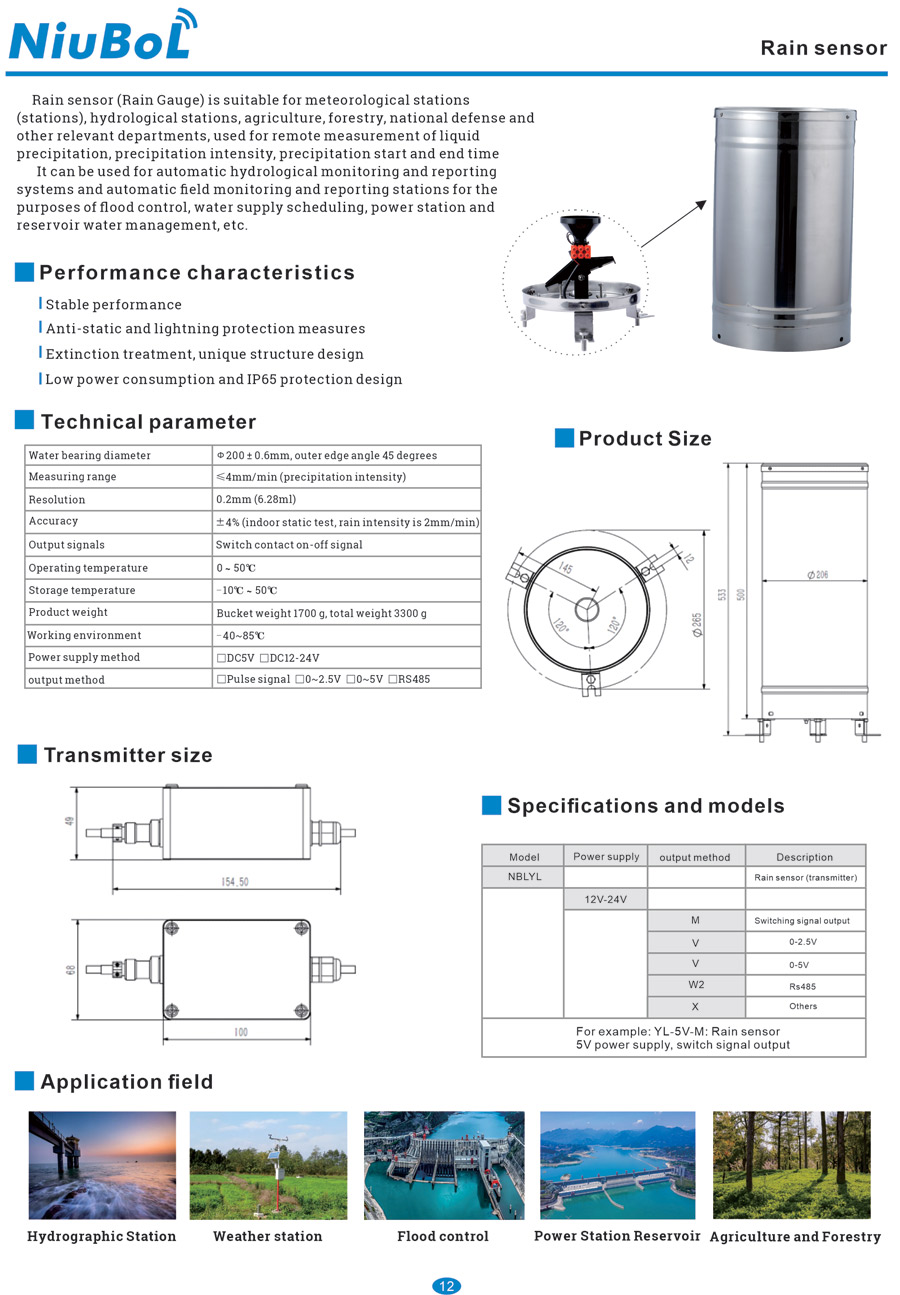

Tipping bucket rain gauge data sheet

NBL-W-ARS-Tipping-bucket-rain-gauge-instruction-manual.pdf

NBL-W-RS-Rain-sensors-instruction-manual-V4.0.pdf
