Soil pH sensor Arduino

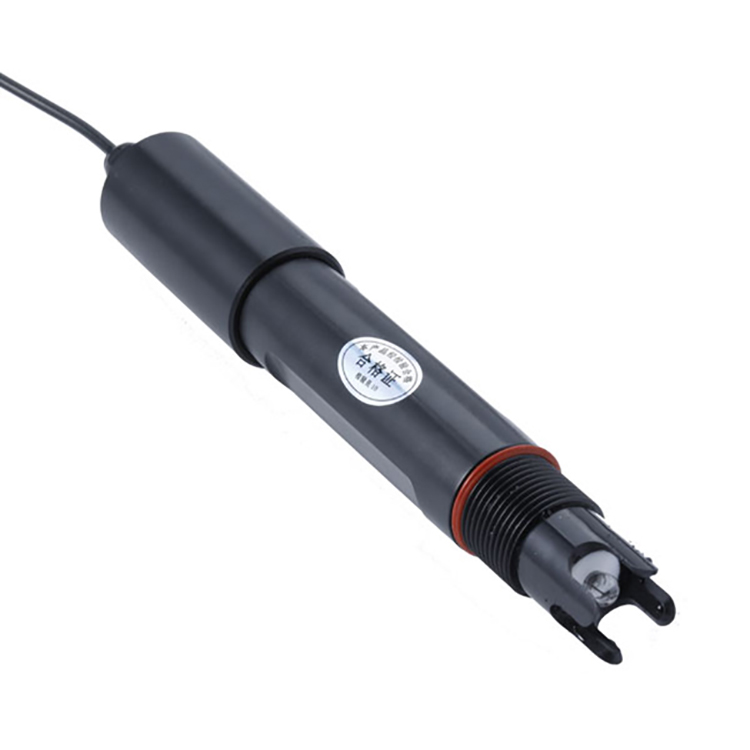

Soil pH Sensor Arduino Product Description

The Soil pH Sensor is a smart sensor designed for agriculture, horticulture and environmental sciences to accurately measure soil acidity and alkalinity (pH). Combining high-precision measurement technology with a convenient interface design, the sensor can be easily integrated into Arduino-based automation systems to help users realize precise monitoring and control of the soil environment.

Features of Soil pH Sensor

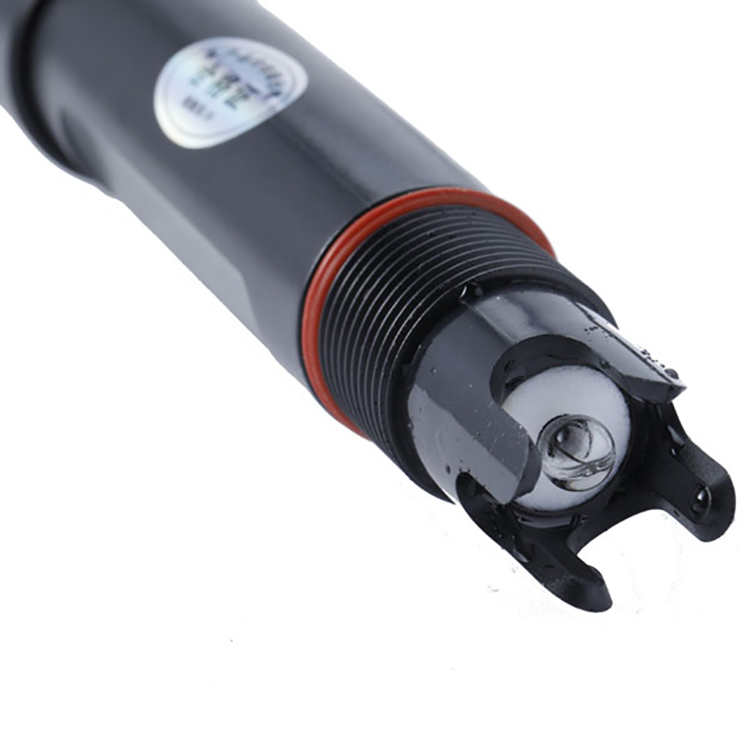

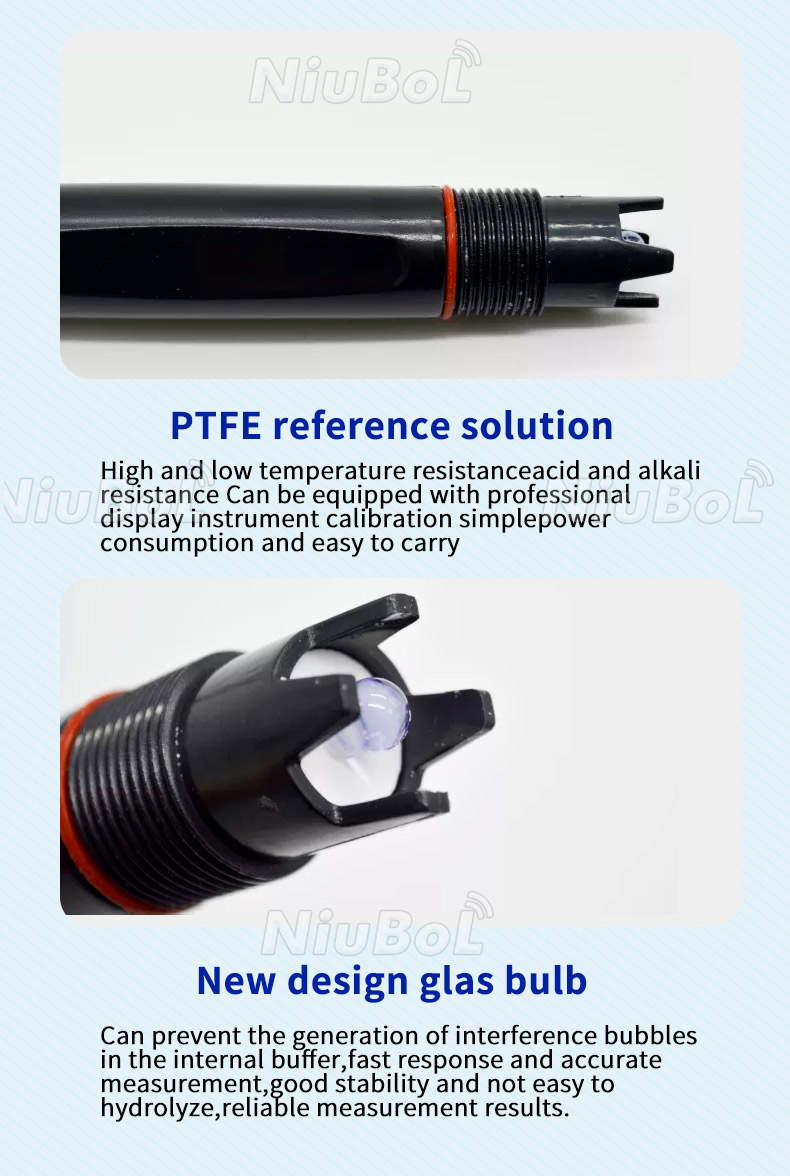

High-precision measurement: Adopting glass electrode, it can accurately measure the hydrogen ion concentration in the soil and thus calculate the pH value of the soil, with a small error range, stable and reliable measurement.

Strong durability: the sensor is made of corrosion-resistant materials, effectively extending the service life, suitable for long-term monitoring buried in the soil.

Fast Response: The sensor has a fast response time and can monitor soil pH changes in real time.

Easy to install: simple design, easy to install, suitable for a variety of soil environments.

Strong compatibility: can be directly connected with Arduino and other microcontrollers to realize data transmission.

Flexible programming: Users can realize real-time monitoring of soil pH, data logging, threshold alarm and other functions by writing Arduino code according to their own needs.

Soil pH Sensor Usage and Function

Soil pH Sensor uses:

Agricultural planting: help farmers understand soil pH, rational fertilization, and improve crop yield and quality.

Horticultural maintenance: Provide soil pH data for horticultural enthusiasts to guide the maintenance and management of flowers, fruit trees and other plants.

Environmental monitoring: Provide basic data support on soil pH in the fields of ecological restoration and soil pollution monitoring.

Scientific research: Provide accurate data support for soil pH research.

Soil management: Long-term monitoring can help identify acidification or alkalization trends and adjust soil conditions in time to prevent crop damage.

Soil pH Sensor Function:

Real-time Measurement: Real-time display of soil pH helps users keep track of soil environmental conditions.

Data logging: Automatically record soil pH at set intervals and generate historical data graphs to facilitate analysis of soil trends.

Threshold Alarm: Set the upper and lower thresholds of soil pH value, when the soil pH value exceeds the set range, an alarm signal will be sent through the Arduino system to remind the user to take timely measures.

Remote control: Combined with the Internet of Things (IoT) technology, it can realize the remote monitoring and control of soil pH value to improve the management efficiency.

Soil pH Sensor application scenarios:

- Home gardening: Monitor soil health in home vegetable garden.

- Commercial farms: Realize precision agriculture and improve crop yield.

- Environmental monitoring: long-term tracking of soil pH changes in a specific area.

Purchase Suggestion

- Applicable people: gardening enthusiasts, agricultural workers, environmental monitors, researchers, electronic DIY enthusiasts.

- Technical Support: Provide detailed instruction manual and code samples to help you get started quickly.

After-sales service

- Warranty promise: the product is guaranteed for one year, so that you can buy without worry.

- Customer service: professional customer service team to provide you with pre-sales consulting and after-sales support.

Soil pH Sensor and Arduino Communication

Our Soil pH Sensor supports convenient communication with Arduino. You can easily realize your DIY project just by following the steps below:

1. Connect the converter module: Use the special converter module to convert the output signal of Soil pH Sensor to the signal recognized by Arduino.

2. Write code: According to your project requirements, write simple code to read and parse pH data.

3. Real-time monitoring: Insert the sensor into the soil and monitor and display the soil pH value in real-time via Arduino.

Soil pH Sensor is programmed to communicate with Arduino.

Hardware preparation

1. Arduino development board (such as Arduino Uno)

2. Soil pH Sensor

3. Breadboard and connection cable

4. Power supply module (12V)

Connection steps

1. Connect the power supply: connect the sensor's VCC pin to the Arduino's 12V pin and the GND pin to the GND pin.

2. Analog input connection: connect the A0 pin of the sensor to the A0 analog input pin of the Arduino.

Programming implementation.

1. Install library files: In Arduino IDE, open the "Tools" menu, select "Manage Libraries", and then search for and install the "pH" library files.

int pHPin = A0; // Define the pin to which the pH sensor is connected.

void setup() {

Serial.begin (9600); // Initialize serial communication.

}

void loop() {

float pHValue = analogRead(pHPin); // read the analog value

Serial.print ("pH Value: "); // Read the analog value.

Serial.println (pHValue); // print pH value to serial monitor

delay(1000); // delay 1 second, measure once per second

}

Sample Code Explanation

In the above code, the analogRead(pHPin) function is used to read the analog signal connected to pin A0, which represents the output voltage of the pH sensor. By calculating this voltage value, the pH value can be obtained indirectly. It should be noted that since the specific model and circuit design of different sensors may vary, the actual application needs to be adjusted and calibrated according to the specific situation.

With the above steps, you can successfully use an Arduino development board and a soil pH sensor to measure the soil's acidity and alkalinity, and program it for real-time monitoring and recording of data. This technique is not only simple and easy to use, but also inexpensive, perfect for beginners and hobbyists to carry out DIY projects.

Conclusion

Soil pH Sensor Arduino is a powerful and easy-to-integrate smart sensor that can help users accurately grasp the soil pH level, providing powerful support for agricultural planting, horticultural maintenance and environmental monitoring. Through simple DIY operation, you can realize real-time monitoring and regulation of soil pH, making your management more intelligent and efficient. Act now and start your smart agriculture journey!

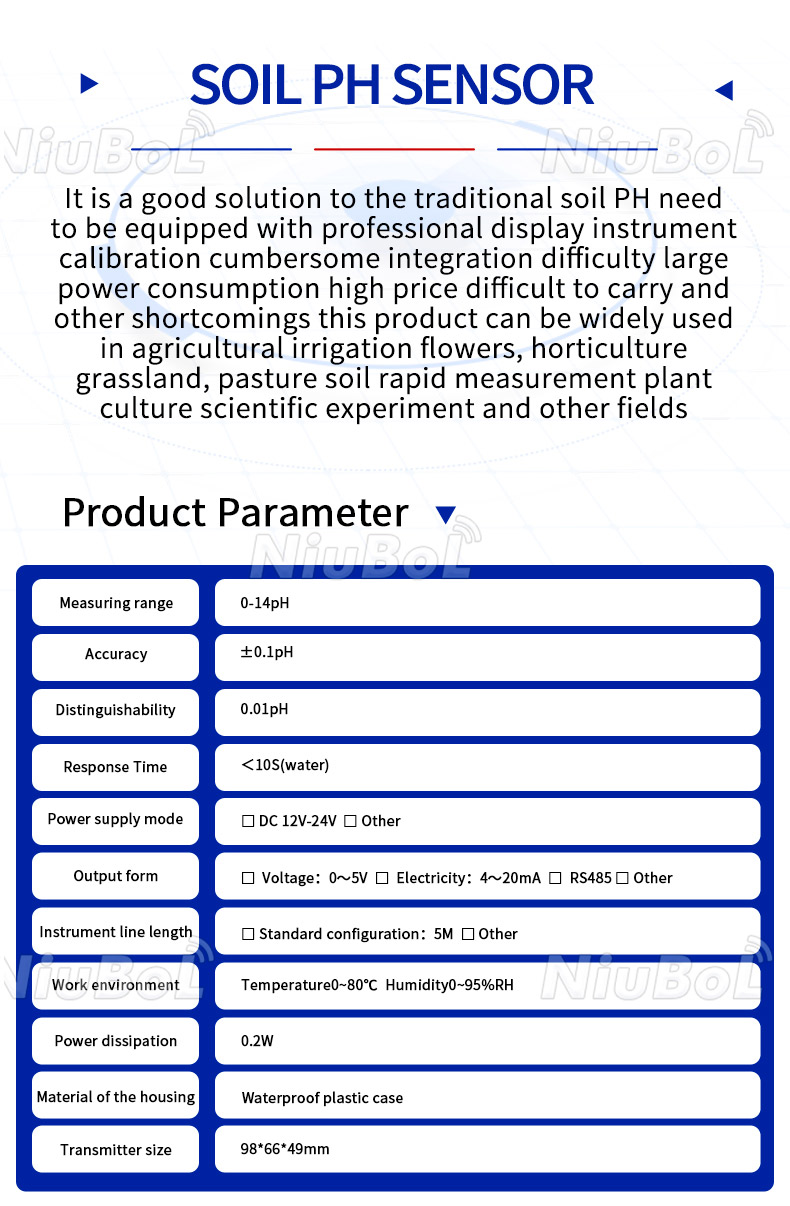

Soil pH sensor data sheet

NBL-S-PH-Soil-PH-Sensor-Instruction-Manual-V4.0.pdf
