High Performance Carbon Fiber Wind Speed Sensors

 Sensors for detecting wind speed Product Overview

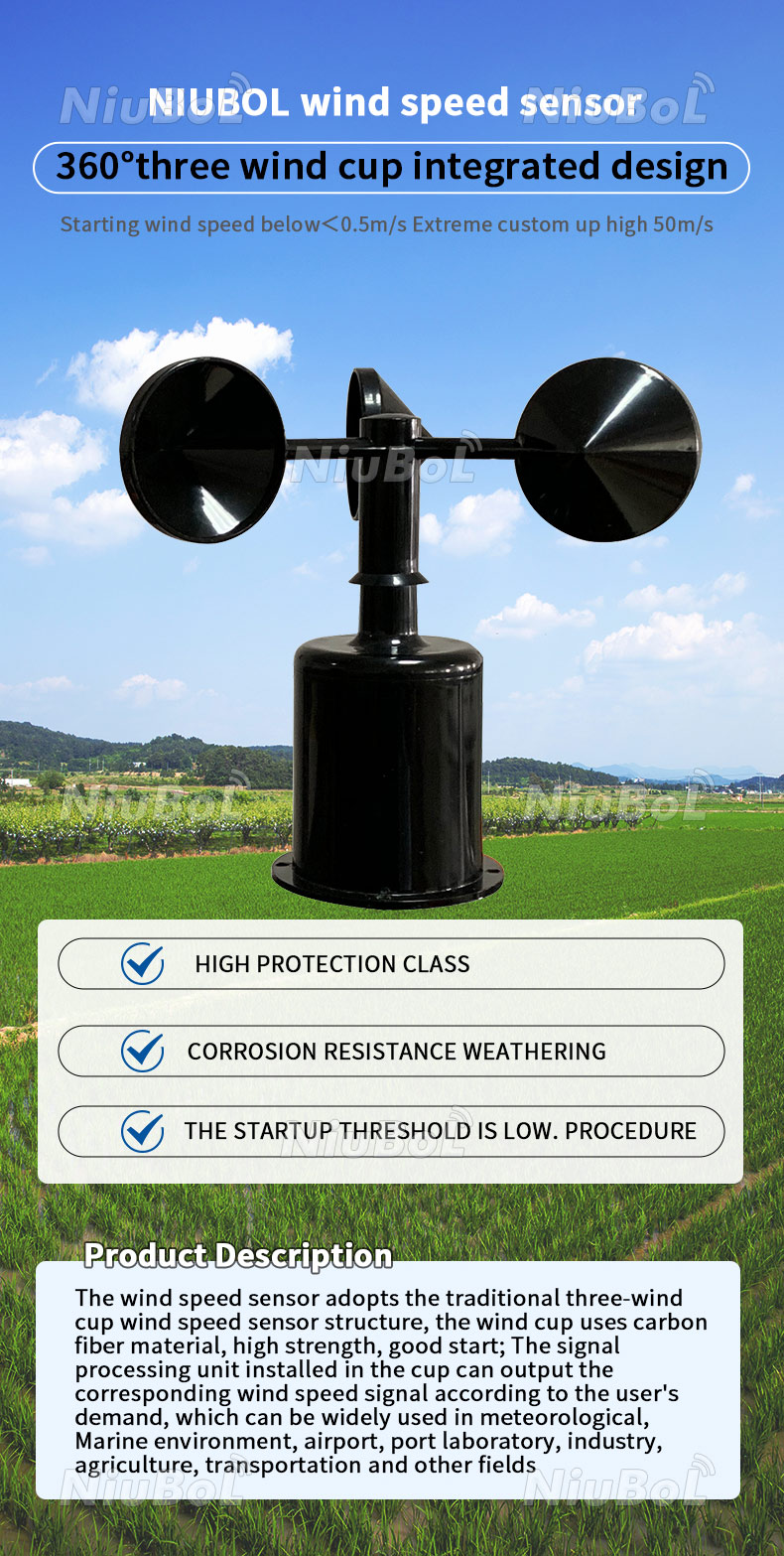

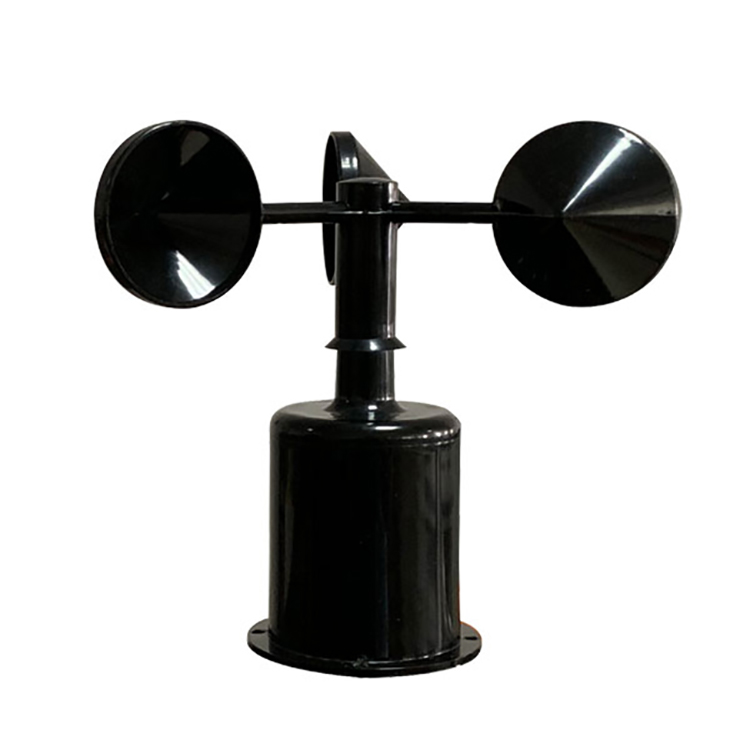

This high performance carbon fiber wind speed sensor adopts the advanced traditional three wind cup structure design to ensure the accuracy and stability of the measurement. The wind cup is made of lightweight and high-strength carbon fiber, which not only reduces the overall weight, but also improves the strength and start-up performance of the sensor. The built-in signal processing unit can output a variety of wind speed signals flexibly according to the user's needs, which is widely used in meteorological monitoring, marine research, environmental protection, airport meteorology, port operations, laboratory research, industrial and agricultural production and transportation and other fields.

 Sensors for detecting wind speed technical parameters

Third, Sensors for detecting wind speed function features

1. high-precision measurement: using carbon fiber wind cup and advanced signal processing technology to ensure the accuracy and stability of the measurement results.

2. Measurement range: support two configurations, 0 ~ 45m / s or 0 ~ 70m / s, to adapt to a wide range of wind speed environment.

3. Accuracy: ± (0.3+0.03V) m/s, where V is the actual wind speed value, to ensure the high accuracy of the data.

4. Resolution: Fine to 0.1m/s, providing delicate wind speed change information.

5. Start-up wind speed: ≤0.5m/s, sensitive capture of weak wind.

6. Power supply mode: compatible with DC 5V, DC 12V-24V, adapting to different system power supply requirements.

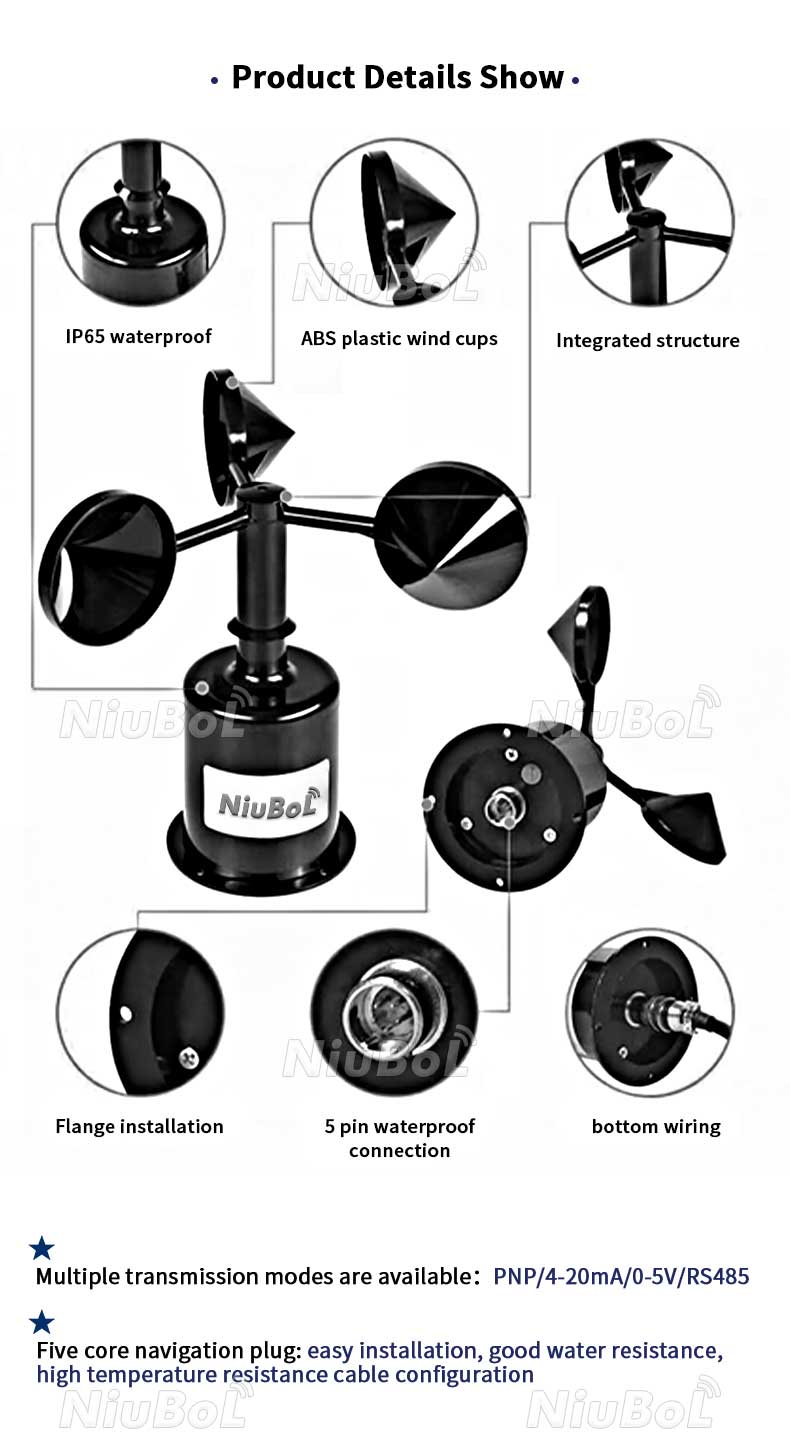

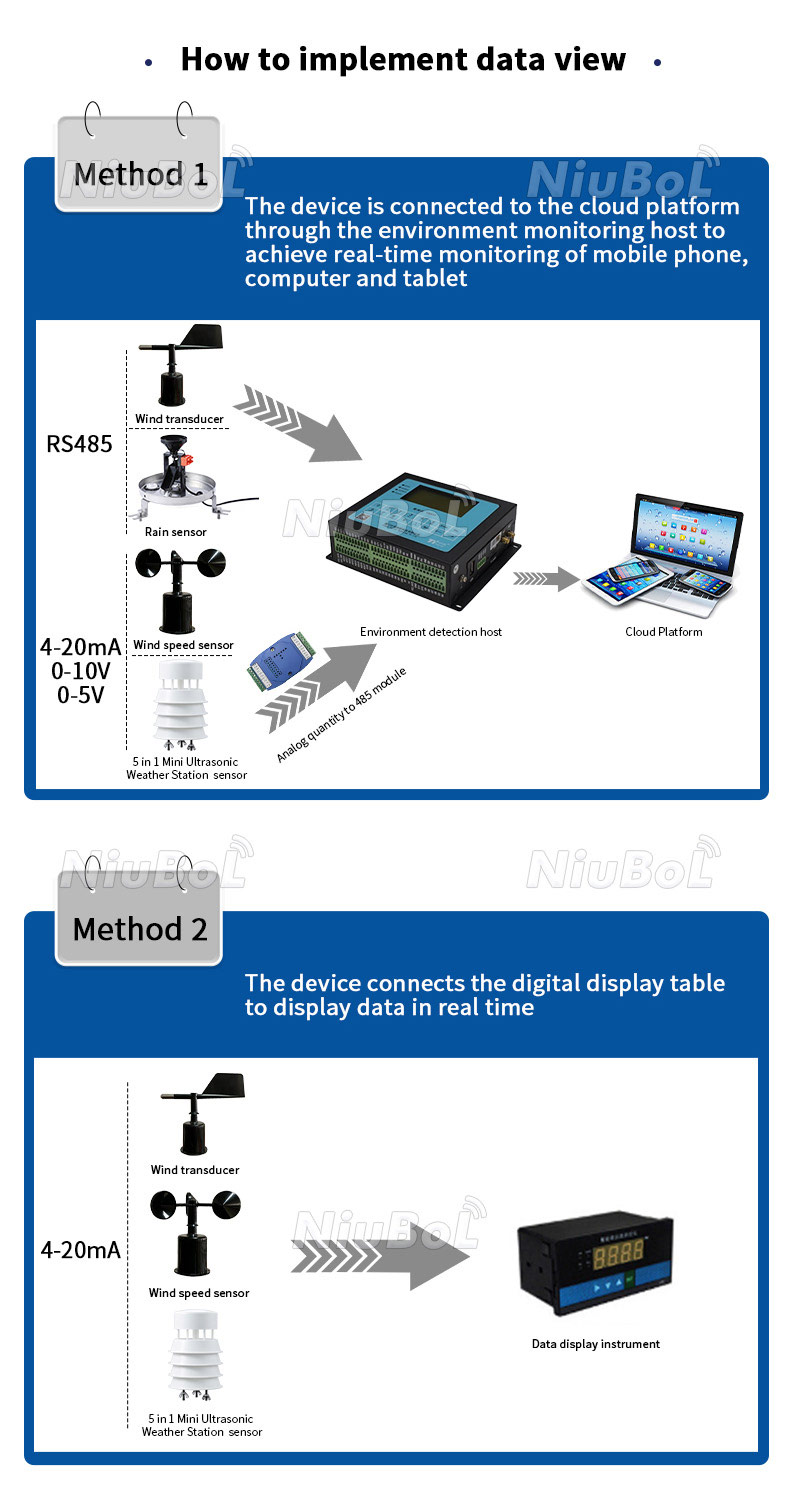

7. Output form: provide pulse, 4-20mA current, 0-5V, 0-2.5V voltage and RS485 communication interface to meet diversified application requirements.

8. Standard wire length: 2.5 meters, can be customized to meet special installation requirements.

9. Environmental adaptability: operating temperature -40 ℃ to 80 ℃, humidity ≤ 100% RH, to ensure stable work in extreme environments.

10. Protection grade: IP65, effective dustproof and waterproof, suitable for long-term outdoor use.

11. Cable specification: rated voltage 300V, temperature resistance 80℃, to ensure the reliability and safety of signal transmission.

12. Product weight: lightweight design, only 130g, easy to install and maintain.

13. Power consumption: as low as 50 mW, energy efficient.

 Sensors for detecting wind speed Application Scenarios

1. Meteorological monitoring: real-time monitoring of wind speed changes, providing accurate data for weather forecasting.

2. Marine research: monitoring wind speed in the marine environment to help marine scientific research.

3. environmental protection: monitoring the impact of wind speed on air quality, providing scientific basis for environmental protection.

4. airport weather: provide real-time wind speed information for airports to ensure flight safety.

5. Port operation: monitoring the wind speed in the port to ensure the smooth operation of the port.

6. laboratory research: wind speed measurement in the laboratory environment, to support scientific research.

7. industrial and agricultural production: monitoring wind speed in industrial and agricultural production to optimize the production process.

8. Transportation: Provide wind speed information for transportation to ensure driving safety.

 Product Summary

This high-performance wind speed sensor adopts the industry-leading three wind cup design, the wind cup components are selected carbon fiber materials to ensure high strength and lightweight characteristics, optimized start-up wind speed as low as ≤ 0.5m/s, to ensure that in the breeze conditions can also be accurate response. Built-in advanced signal processing unit can flexibly output a variety of signal formats according to user needs, including pulse, 4-20mA current, 0-5V/0-2.5V voltage, and RS485 digital communication to meet the integration needs of different application scenarios.

Wind speed sensor (Cup Anemometer) data sheet

NBL-W-SS-Wind-Speed-Sensors-Instruction-Manual-V4.0.pdf
