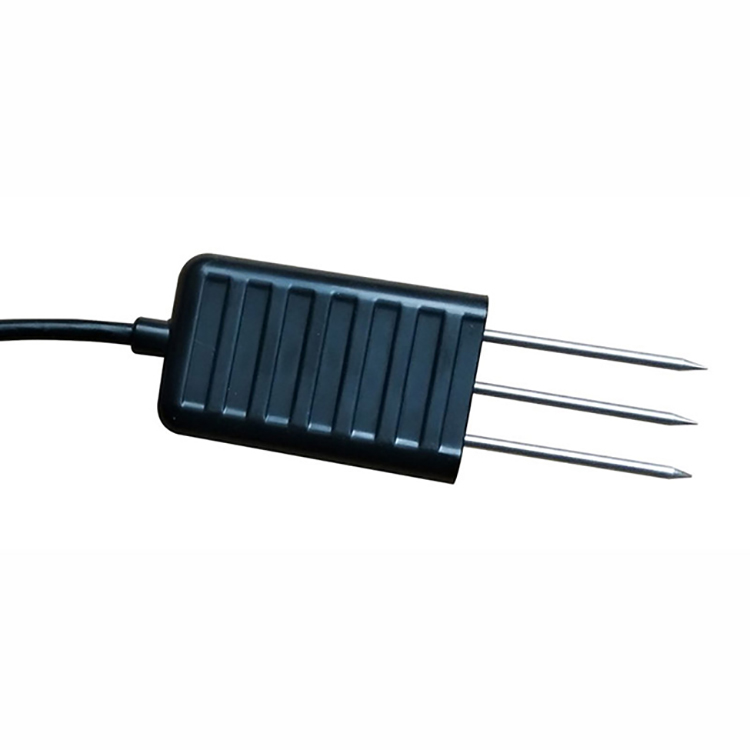

Resistive soil moisture sensor

NBL-S-TM Resistive Soil Moisture and Moisture Sensor -- Highly accurate and stable soil environment monitoring equipment.

NBL-S-TM Resistive Soil Moisture Sensor Performance Overview

The NBL-S-TM Soil Temperature and Moisture Sensor is a stable, highly sensitive, dual-parameter measurement device capable of simultaneously measuring soil temperature and soil moisture. The sensor utilizes Frequency Domain Reflectance (FDR) technology to measure soil moisture and a thermistor to measure soil temperature. By measuring the soil's dielectric constant, it provides a direct and stable reflection of the true moisture content of various soil types and complies with international soil moisture measurement standards.

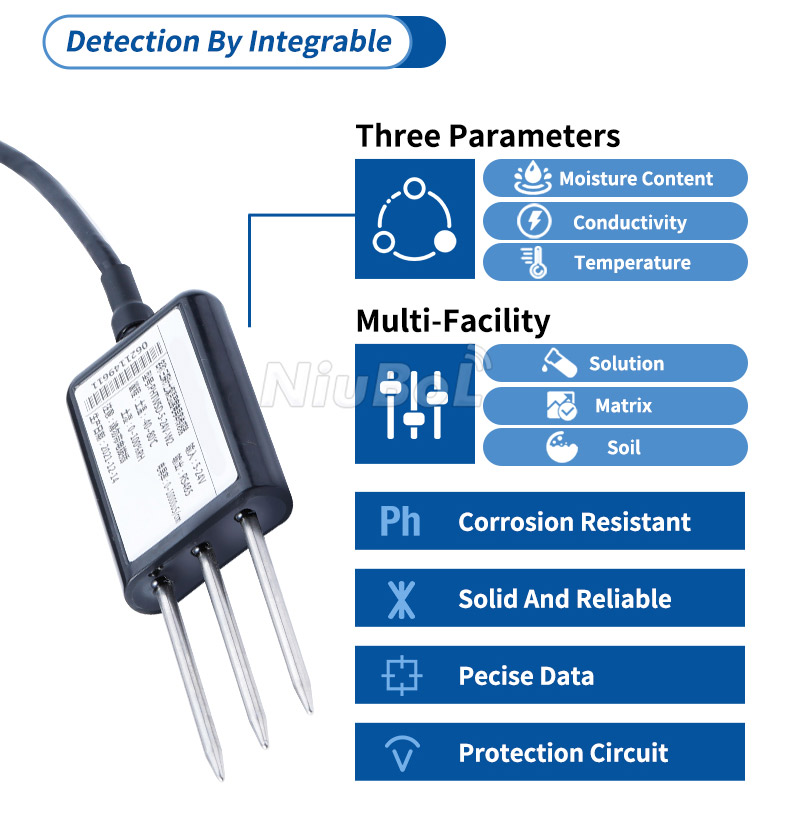

 NBL-S-TM Resistive Soil Temperature and Moisture Sensor Key Features

- Dual Measurement: Measures soil temperature and soil moisture at the same time, providing comprehensive soil environment data for a variety of application scenarios, such as agricultural irrigation, greenhouse management, and so on.

- Durable electrodes: specially treated alloy electrodes can withstand strong external shocks, resistant to damage and suitable for long-term burial.

- Fully sealed design: IP68 protection level, acid and alkali corrosion resistant, suitable for long-term burial in soil or submerged in water.

- High accuracy and reliability: high accuracy, fast response, excellent interchangeability, probe insertion design ensures accurate and reliable measurement.

- Advanced Protection Circuit: Ensure the sensor is stable and reliable for a long time.

- Strong compatibility: Supports DC5V-24V power supply, RS485 communication interface with Modbus protocol for easy integration and remote monitoring.

-High accuracy and response speed: temperature accuracy ±0.5℃, humidity accuracy of 5%, fast response to ensure the immediacy of the data.

- Compatibility and Ease of Use: Supports DC5V-24V power supply, RS485 communication interface with Modbus protocol for easy integration and remote monitoring.

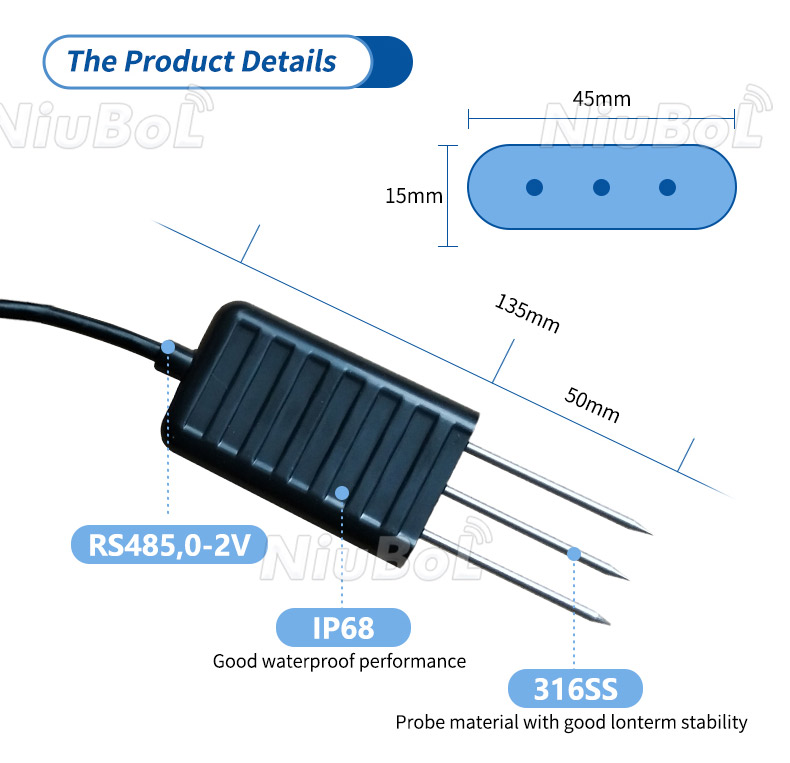

 NBL-S-TM Resistive Soil Temperature and Moisture Sensor Technical Specifications

 NBL-S-TM Soil Temperature and Humidity Sensor Working Principle:

- Soil Moisture Measurement: NBL-S-TM sensor adopts Frequency Domain Reflectance (FDR) technology, which calculates the dielectric constant by sending high-frequency electromagnetic waves into the soil and analyzing the time delay and amplitude change of the reflected waves, and then deduces the soil moisture content. The dielectric constant of the soil is directly proportional to the moisture content, thus accurately reflecting the true moisture status of the soil.

- Soil temperature measurement: A thermistor (NTC) is used to measure soil temperature. The resistance value of the thermistor changes with temperature, and the soil temperature can be accurately calculated by measuring the resistance value.

  NBL-S-TM Soil Temperature and Humidity Sensor Application Scenario

The NBL-S-TM is suitable for a variety of application areas, including but not limited to:

- Soil moisture monitoring: real-time monitoring of soil moisture content, providing a scientific basis for agricultural production.

- Scientific experiments: for laboratory research, providing accurate soil moisture and temperature data.

- Irrigation: Precise irrigation based on soil moisture conditions to improve water utilization efficiency.

- Greenhouse Cultivation: Optimize the growing environment of plants in greenhouses to promote healthy crop growth.

- Flower and Vegetable Growing: Ensure that plants receive the right soil conditions to improve yield and quality.

- Grassland and pasture management: Monitor grassland soil moisture to guide grazing and pasture management.

- Rapid soil test: Quickly assess soil moisture and temperature to provide data support for soil improvement and fertilization.

- Plant Cultivation: Helps horticulture enthusiasts and professional growers to optimize plant growth environment.

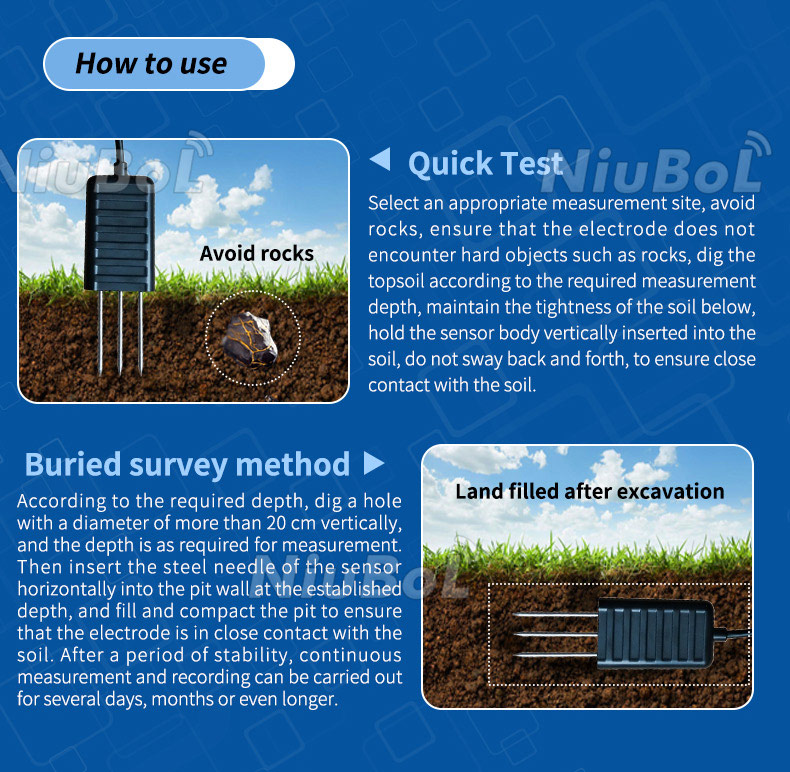

  NBL-S-TM Soil Temperature and Humidity Sensor Installation and Measurement Methods

 Quick Measurement Method

1. Choose a suitable measuring place, avoiding stones or hard objects.

2. Plan the top layer of soil to maintain the original looseness of the soil.

3. Insert the sensor vertically, avoid shaking, and make sure it is in close contact with the soil.

4. It is recommended to take several measurements at the same measuring point to find the average value to improve the accuracy of measurement.

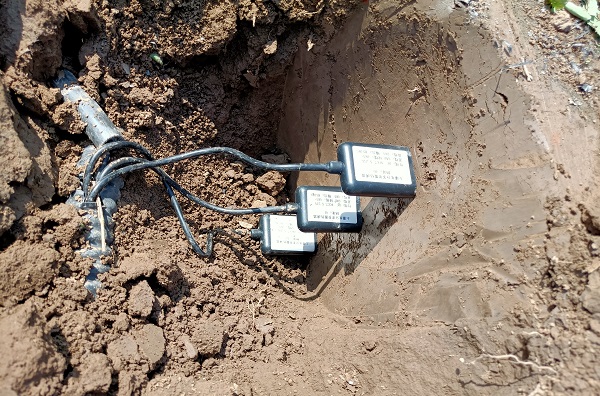

 Buried measurement method

1. Dig a hole with a diameter of more than 20cm to reach the required depth.

2. Insert the sensor probe horizontally into the hole wall at the desired depth.

3. Fill and compact the hole to ensure that the electrode is in close contact with the soil.

4. After stabilization, measurements can be taken continuously for days, months or longer.

 Precautions for installing the soil sensor

- When measuring on hard ground, drill a hole smaller than the diameter of the probe, insert the sensor, compact the soil, and then measure.

- Prevent severe vibration and shock, and avoid striking the sensor with hard objects.

- Since the sensor is encapsulated in black, exposure to strong sunlight may cause the temperature to rise (up to 50°C or higher). To prevent temperature-related measurement errors, shield the sensor from direct sunlight and provide protection when used in the field or outdoors.

This NBL-S-TM soil temperature and humidity sensor combines advanced technology and strict quality control, designed to provide users with the most reliable soil environment monitoring solution. Whether it's for research projects or daily agricultural management, it provides the data support you need and is ideal for accurate soil monitoring.

 Purchase and Inquiries

For more information about NBL-S-TM Soil Temperature and Humidity Sensor or to purchase this product, please visit our official website or contact our customer service team. We will be happy to provide you with high quality products and services and look forward to your visit!

NBL-S-TM Soil Temperature Moisture Sensor datasheet

NBL-S-TM-Soil-temperature-and-moisture-sensor-Instruction-Manual-4.0.pdf
