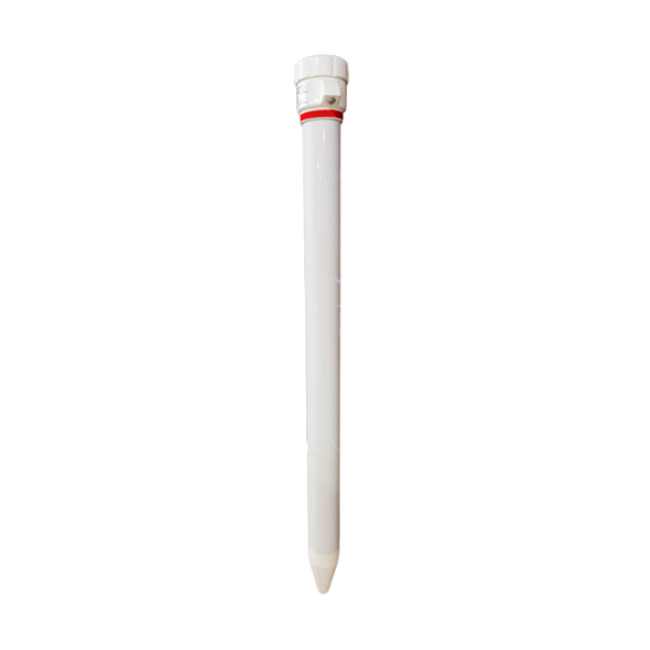

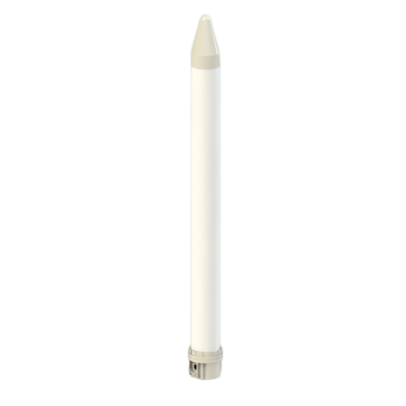

Multi depth soil temperature moisture sensor

Multi Depth Soil Temperature Moisture Sensor is a soil temperature and humidity monitoring instrument based on the FDR principle, which uses electromagnetic wave frequency changes to measure the humidity of soil layers at different depths and combines with a high-precision digital temperature sensor to achieve multi-depth, real-time, accurate soil temperature and humidity monitoring. The product is lightweight, easy to install, easy to use, accurate measurement and many other···

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner company in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems.

Product Details

Multi Depth Soil Temperature Moisture Sensor Product Overview:

Multi Depth Soil Temperature Moisture Sensor is a soil temperature and humidity monitoring instrument based on the FDR principle, which uses electromagnetic wave frequency changes to measure the humidity of soil layers at different depths and combines with a high-precision digital temperature sensor to achieve multi-depth, real-time, accurate soil temperature and humidity monitoring. The product is lightweight, easy to install, easy to use, accurate measurement and many other advantages.


Multi Depth Soil Temperature Moisture Sensor Technical parameters

Soil moisture measurement range

dry soil ~ moisture-saturated soil

laboratory measurement accuracy: ±3%,

field measurement accuracy: ±5%,

moisture resolution: 0.1%;

Temperature measurement range

-40℃~80℃,

 measurement accuracy ±0.5℃,

temperature resolution: 0.1℃;

Power supplyDC12~24V or built-in lithium battery or Solar panel
Communication mode

RS485, MODBUS , (baud rate 9600 can be set, address 0-255 can be set);

GPRS wireless communication;

RS485 Wiring

Red power positive

Black source

Yellow 485+

Blue 485-

Response timeresponse within 3s after power on;
Stabilisation timeabout 10s into the stabilisation process after power on;
External dimensionsϕ63mm, the length varies with the measurement depth of the sensor, the standard length is about 1000mm;
Sensor measurement principleFDR frequency domain reflection method;
Power consumptionless than 10mA at static, 70 mA at sampling;
Operating environment-40 ℃ ~ 80 ℃; 0-100% RH;
Average trouble-free time≥25000h;
Sealing materialepoxy resin
Sensing range: 99% is read from the outside of the tube within 10cm;
Shell protection level:  ground part: IP67; below ground: IP68;

Multi Depth Soil Temperature Moisture Sensor Product Features:

 Multi Depth Monitoring: Standard monitoring nodes include 10cm, 20cm, 30cm, 40cm depths, and different depths (e.g. 50cm, 60cm, 70cm, 80cm, 90cm, 100cm) and configurations can be customised according to requirements.

Multi depth soil moisture sensor-3.png

 Durable material: Adopting special customised PVC plastic pipe, anti-aging and more resistant to corrosion of acid, alkali and salt in the soil; epoxy resin sealing material, no leakage in long-term immersion in water.

 High accuracy and reliability: High measurement accuracy, less affected by soil texture, suitable for all kinds of soil texture; with multi-directional anti-wrong connection protection.

 Flexible power supply: Support DC12~24V DC power supply and solar power supply.

Multi depth soil moisture sensor.png

 Data transmission: Support RS485 digital output and GPRS wireless network data transmission (optional), which can realise remote data monitoring.

 Simple installation: no on-site setting and calibration design, on-site installation at any time at any time to use.

Multi-directional protection against misconnection of power, ground and signal lines;

Multi Depth Soil Temperature Moisture Sensor Application Areas:

Multi Depth Soil Temperature Moisture Sensor is widely used in agriculture, forestry, environmental protection, water conservancy, meteorology and other industries for environmental information monitoring and collection. It is also suitable for water-saving irrigation, flower horticulture, grass pasture, soil quick test, plant culture, greenhouse control, fine agriculture and other fields to meet the needs of scientific research, production, teaching and other related work.

Multi depth soil moisture sensor.jpg

The above is the Multi Depth Soil Temperature Moisture Sensor product features and applications. Please feel free to contact us for more details or customisation. Let Multi Depth Soil Temperature Moisture Sensor help your agricultural production, environmental protection and other causes, and create a better future together!

NBL-S-TMM Tubular Multilayer Soil Moisture Sensor Data Sheet

NBL-S-TMM-Tubular-Multi-Layer-Soil-Moisture-Sensor-Meter.pdf

Sensors & Weather Stations Catalog

Agriculture Sensors and Weather Stations Catalog-NiuBoL.pdf

Weather Stations Catalog-NiuBoL.pdf

Agriculture Sensors Catalog-NiuBoL.pdf
