All products

Leaf surface temperature and humidity sensors

leaf surface temperature and humidity sensor is a smart device designed for environmental monitoring of plant leaf surface. With its compact appearance, excellent stability and high sensitivity, it has become a powerful assistant in modern agricultural management. Through real-time monitoring of tiny humidity changes (including fog, dew, ice crystals and rainfall) and temperature fluctuations on the surface of leaves, it can accurately reflect the real growing environment of ···

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner company in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems.

Product Details

Leaf surface temperature and humidity sensors Product Key Points.

In agricultural science and precision farming management, accurate monitoring of leaf surface temperature and humidity is key to preventing diseases, optimizing the growing environment and increasing crop yields. We are proud to introduce this advanced Leaf Surface Temperature and Humidity Sensor, which is designed for environmental monitoring of plant leaf surfaces to help farmers and researchers to better understand the growing conditions of their crops and to effectively prevent disease infections and pest infestations.

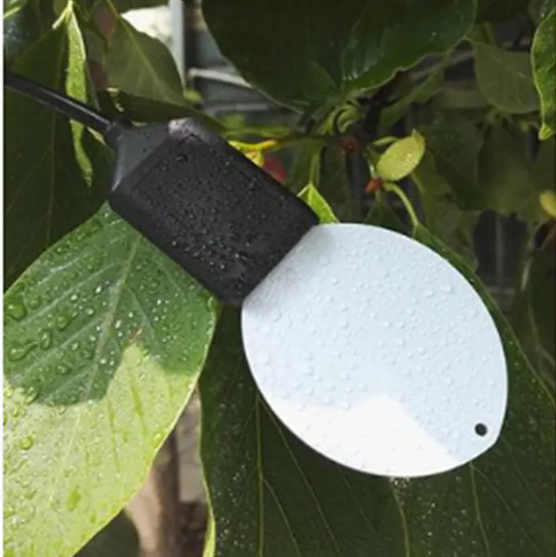

Leaf surface temperature and humidity sensors.png

Leaf surface temperature and humidity sensors Product Overview

This leaf surface temperature and humidity sensor is a smart device designed for environmental monitoring of plant leaf surface. With its compact appearance, excellent stability and high sensitivity, it has become a powerful assistant in modern agricultural management. Through real-time monitoring of tiny humidity changes (including fog, dew, ice crystals and rainfall) and temperature fluctuations on the surface of leaves, it can accurately reflect the real growing environment of plants and provide data support for scientific fertilization, rational irrigation and pest control. Its unique leaf bionic design ensures that the measurement results are closer to the natural leaf environment.

Leaf surface temperature and humidity sensors Technical Parameters:

Power supply mode: utility power
Supply voltageDC 12V-24V
Communication mode: RS485
Power consumption: peak power consumption 120mW, standby power consumption 72mW
Baud rate: 9600bps
Temperature range: -40-80°C
Temperature Accuracy: ±0.5°C
Humidity range: 0-100%RH
Humidity accuracy: ±5%RH
Operating environment: -40-85℃

Leaf surface temperature and humidity sensors core functions

Accurate monitoring: Utilizing advanced dielectric constant detection technology, it accurately measures trace water or ice crystal residues on the leaf surface, and combined with the temperature detection function, it effectively distinguishes between water and ice crystal status.

Disease prevention: long-term monitoring of leaf surface moisture, timely warning of high humidity risks, reducing the growth of bacteria, fungi and other pathogens, and protecting crops from diseases.

Pest Management: Optimize the timing and retention time of pesticide spraying through monitoring data to improve the efficiency of pest control and reduce pesticide waste and environmental pollution.

Intelligent Irrigation: Combine with humidity data, scientifically guide the irrigation program to avoid over or under irrigation and promote healthy crop growth.

Leaf surface temperature and humidity sensors Product Features:

1. Accurate monitoring: by simulating the real leaf design, accurately monitor the moisture or ice crystal residue on the surface of the leaf, and distinguish the moisture and ice crystal at the same time, to provide you with reliable data.

2. Compact and lightweight: small appearance, easy to carry and install, suitable for a variety of occasions.

3. Stable: adopting high performance sensor, fast response speed and stable performance, ensuring long-term continuous monitoring.

4. low power consumption: low power consumption design, so you don't need to worry about the power problem of long time running.

5. waterproof sealing: sealed waterproof design, adapt to a variety of harsh environments, to ensure stable operation of the equipment.

6. Easy to install: easy to install, quick to start, so you can easily realize the foliage temperature and humidity monitoring.

7. Widely used: suitable for orchards, farmland, greenhouses and other agricultural scenarios, helping the development of precision agriculture.

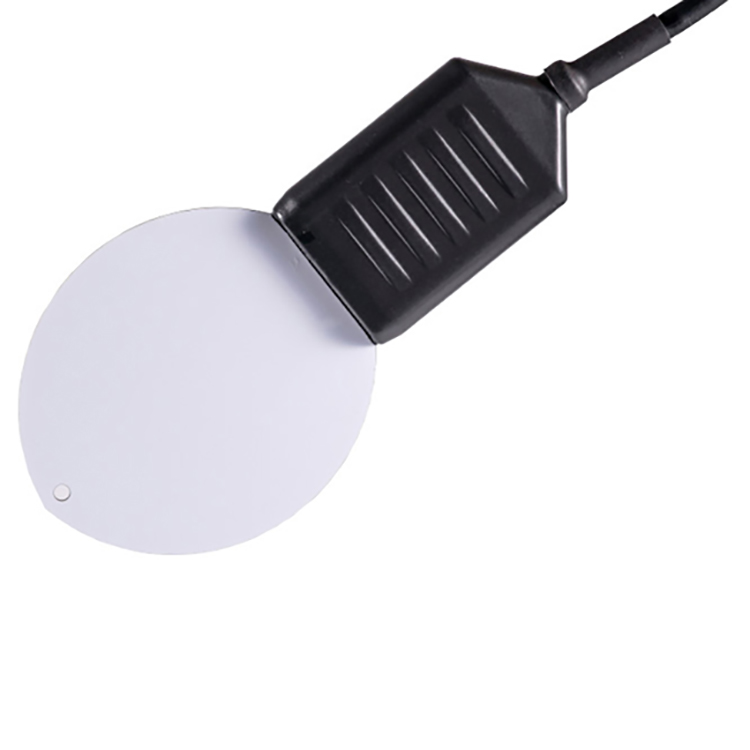

Leaf surface temperature and humidity sensors.jpg

Leaf surface temperature and humidity sensors installation guide.

The installation process is simple and quick, no need for specialized skills, easy to complete the installation, immediately start monitoring.

1. Place the sensor next to a crop or leaf.

2. Pass a non-metallic wire through the hole in the front of the foliage sensor.

3. Hang the sensor from a tree branch or stem and secure it to the branch or stem with wire or string.

Leaf surface temperature and humidity sensors Application Scenarios.

- Agricultural research: long-term monitoring of crop growth environment, optimize growth conditions.

- Pest and disease warning: Predict disease risk through humidity changes and take measures in advance.

- Intelligent irrigation: Adjust the irrigation schedule according to the leaf surface humidity to save water.

- Greenhouse management: Precise control of the micro-environment in the greenhouse to improve crop production efficiency.

After-sales service

We provide a full range of after-sales service, if you have any questions, please feel free to contact us. We promise to provide you with high quality products and satisfactory service.

Leaf surface temperature and humidity sensors.jpg

Conclusion

Foliar temperature and humidity sensors, guard your plant health and help agricultural development! Choosing our Leaf temperature and humidity sensors is choosing a smart and efficient crop growth management partner. Buy now and open a new era of intelligent agricultural monitoring!

Leaf wetness sensor data sheet

NBL-W-LM-Leaf-Temperature-and-Humidity-Sensor-Instruction-Manual.pdf

Sensors & Weather Stations Catalog

Agriculture Sensors and Weather Stations Catalog-NiuBoL.pdf

Weather Stations Catalog-NiuBoL.pdf

Agriculture Sensors Catalog-NiuBoL.pdf
