7-in-1 Weather Station

The 7-in-1 weather sensor is a sensor device that integrates the measurement of several meteorological parameters, which can simultaneously measure and monitor seven key meteorological elements, such as temperature, humidity, barometric pressure, wind speed, wind direction, rainfall and illumination. This sensor has a compact structure, without any moving parts, rugged, easy to install, maintenance-free features, is a specially designed for a wide range of meteorological products, site installation and maintenance is not convenient and an intelligent sensor.

7-in-1 weather sensor has a wide range of applications in meteorological monitoring, agriculture, urban environmental monitoring and other fields, can real-time monitoring and recording of atmospheric temperature and humidity and other data information, to provide a basis for analysis and research.

In terms of technical parameters, the seven-in-one meteorological sensor has high measurement accuracy and sensitivity, and can monitor and record atmospheric temperature and humidity and other data information in real time.

Among them, the measurement range of wind speed is usually 0-40m/s, with a measurement accuracy of ±0.5m/s; the measurement range of wind direction is 0-360°, with a measurement accuracy of ±3°;

the measurement range of air temperature is -40-80℃, with a measurement accuracy of ±0.5℃; the measurement range of air humidity is 0-100%RH, with a measurement accuracy of ±3%RH; the measurement range of atmospheric pressure is 10-110Kpa, with a measurement accuracy of ±3%RH;

the measurement range of atmospheric pressure is 10-110Kpa, with a measurement accuracy of ±3%RH. 1100hPa, with a measurement accuracy of ±1.5%;

the measurement range of light is 0~200000Lux, with a measurement accuracy of 7%; the measurement range of optical rainfall is 0-8mm/min, with a measurement accuracy of 4%.

In conclusion, the seven-in-one weather sensor is a powerful and highly reliable weather monitoring equipment, which can be widely used in meteorology, agriculture, urban environment monitoring and other fields.

7-in-1 Weather Station Sensor for Wind speed,Wind direction,Temperature, humidity, pressure,Illumination,Rainfall Integration:

Technical parameters:

7-in-1 Weather Station sensor is a fully digital detection, high-precision sensor, which is integrated by ultrasonic principle wind speed and direction sensor, high-precision digital temperature, humidity, air pressure sensor, illuminance sensor, piezoelectric rainfall sensor, can accurately and quickly detect wind speed, wind direction, atmospheric temperature, atmospheric humidity, atmospheric pressure, illuminance, rainfall, built-in signal processing unit can output according to user needs The built-in signal processing unit can output the corresponding signal according to user requirements.

The high-strength structure is designed to work reliably in harsh climatic environments and has a compact, highly integrated, lightweight and durable appearance. It can be widely used in the fields of meteorology, environment, airport, port, laboratory, industry and agriculture and transportation.

The piezoelectric rain sensor uses piezoelectric ceramic kinetic rain monitoring to identify raindrops according to the strength of their falling strikes, from light rain to pounding rain, and to measure individual raindrops and thus calculate the rainfall.

The ultrasonic weather sensor innovatively combines wind speed, wind direction, temperature, humidity, and atmospheric pressure through a highly integrated structure that allows for 24-hour continuous online monitoring of outdoor weather parameters.

The device uses advanced sensing technology to measure in real time, without starting wind speed.

Ultrasonic wind speed and direction sensor monitors wind speed and direction in real time, and can be used in conjunction with cloud platform to monitor weather conditions together.

The 7-in-1 ultrasonic weather station uses 7 ultrasonic probes to measure wind speed, wind direction, temperature and humidity, and atmospheric pressure without any moving parts, making the instrument more durable and the data more reliable. The built-in temperature, humidity and barometric pressure sensors can forecast weather changes.

Ultrasonic weather stations can meet the growing need for real-time on-site weather information. Accurate data can help organizations make important decisions about weather conditions that affect safety and operations.

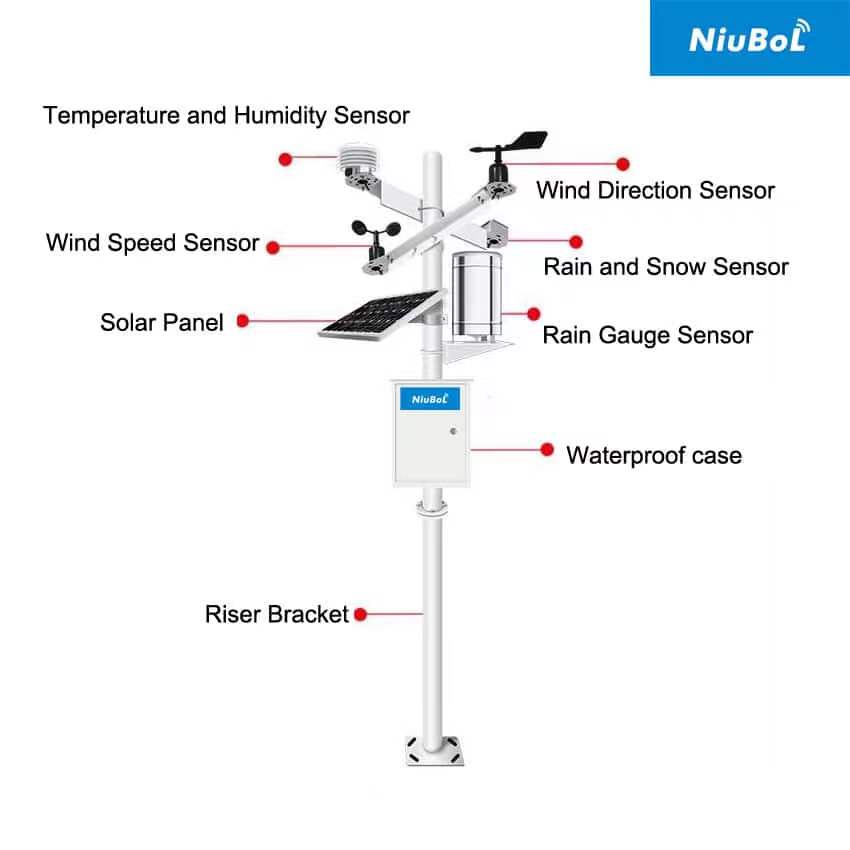

Traditional weather instruments are composed of several sensors including wind cups. The ultrasonic weather station contains a variety of weather sensors with no moving parts and is a compact instrument.

It has been widely used in meteorology, marine, environment, airport, port, laboratory, industry, agriculture and transportation, meteorological monitoring, urban environmental monitoring, wind power generation, sailing ships, airports, bridges and tunnels, etc.
